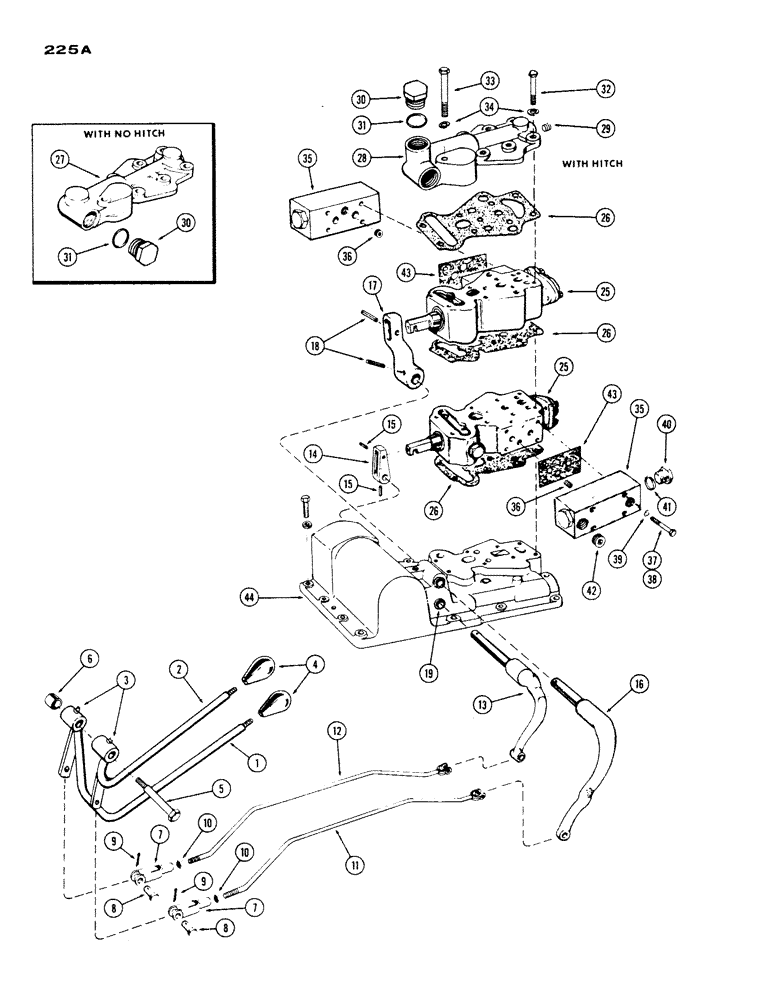

Запчасти Case IH 430 (225A) - REMOTE HYDRAULIC CONTROLS, GENERAL PURPOSE WITH STANDARD CLUTCH (08) - HYDRAULICS

1

A35430

LEVER - hand, inner

1шт.

2

A35432

LEVER - hand, outer

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, hand lever (1/4" str. drive)

2шт.

4

A14051

GRIP

KNOB - hand lever

2шт.

5

G49055

STEP BOLT

BOLT - pivot, hand lever

1шт.

6

G49605

SPACER - inner, hand lever

1шт.

7

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - control rod to hand lever

2шт.

8

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

9

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

4шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex.

2шт.

11

A35452

ROD

- control, outer (31-1/8" long)

1шт.

12

A35451

ROD - control, inner (31-7/8" long)

1шт.

13

G30632

CRANK - lower, Serial Range: valve-rod

1шт.

14

G1108

ARM ASSY.

BELLCRANK

1шт.

15

138-2005

PIN,1/4" x 1", Coiled

2шт.

16

G30634

BUSHING

CRANK - upper, Serial Range: valve-rod

1шт.

17

G1107

CRANK

BELLCRANK - upper valve spool

1шт.

18

138-2005

PIN,1/4" x 1", Coiled

2шт.

19

A35428

CRANKSHAFT BEARING,0.504" ID x 0.6285" OD x 5"

BUSHING - crank (in adapter housing)

4шт.

25

A35618

LOCK VALVE

VALVE - remote hydraulic (Repairs Figure 222)

2шт.

26

A35617

GASKET

- valve & cover

3шт.

27

A35440

COVER - valve (w/no hitch)

1шт.

28

A35425

COVER ASSY

COVER - valve (w/hitch)

1шт.

29

221-1849

PLUG

- 1/8" P.T. socket hd.

1шт.

30

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 31 Hex Hd, 7/8"-14 ORB

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32")

1шт.

32

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

- 5/16 x 5-1/4" N. C. hex. hd.

7шт.

33

13-592

BOLT,Hex, 5/16" - 18 x 5-3/4", Gr 5

1шт.

34

92-5

LOCK WASHER,5/16"

8шт.

35

A35437

MANIFOLD

- valve

2шт.

36

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Manifold inner Hex Soc, 1/4"-18 NPTF

2шт.

37

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

38

13-538

SCREW,Hex, 5/16" - 18 x 2 3/8", Gr 5

BOLT - 5/16 x 2-3/8" N. C. hex. hd.

2шт.

39

92-5

LOCK WASHER,5/16"

8шт.

40

A14280

PLUG

- end, manifold

4шт.

41

A58608

GASKET

- end plug (Replaces A27927)

4шт.

42

221-1843

PLUG

- 3/8" P.T. socket hd. (lower manifold only)

1шт.

43

G10930

GASKET

-, Serial Range: manifold-valve

2шт.

44

A37790

HOUSING

- adapter, hydraulic (See Figure 218)

1шт.
