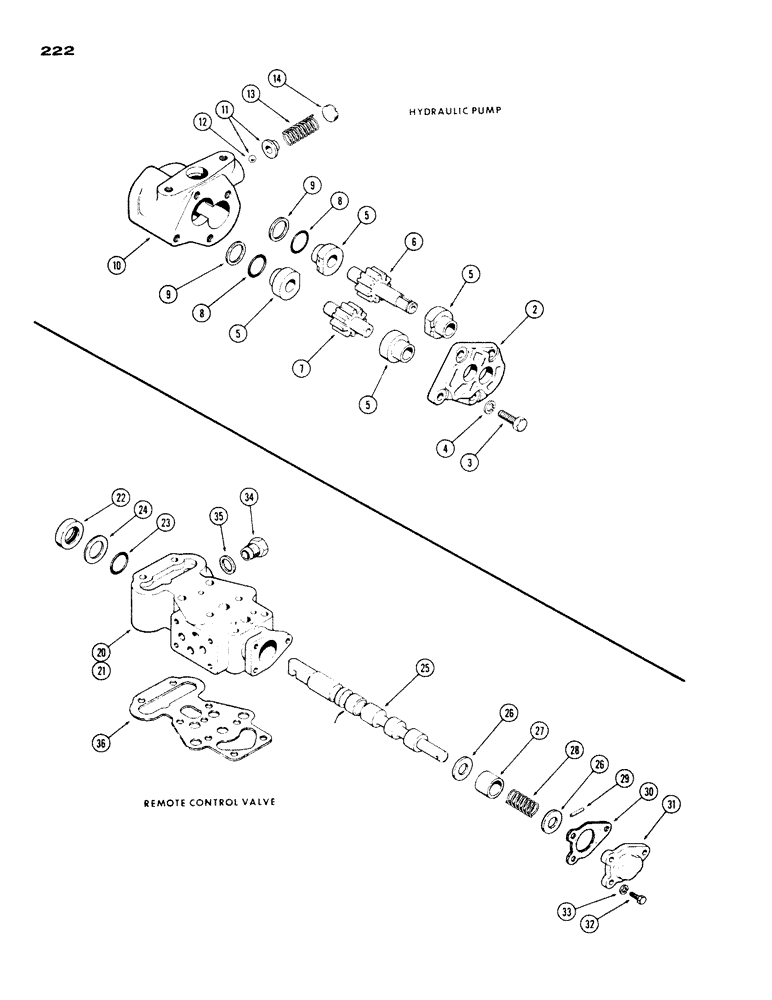

Запчасти Case IH 430 (222) - A35081 AND G45460 HYDRAULIC PUMP / A35618 HYDRAULIC VALVE (08) - HYDRAULICS

A35081

PUMP

ASSY. - hydraulic (w/std. clutch), Includes: Ref. 2 - 14

1шт.

G45460

PUMP

ASSY. - hydraulic (w/C-O-M), Includes: Ref. 2 - 14

1шт.

2

G4523

COVER - pump body

1шт.

3

G49095

BOLT - cover

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

G49673

BEARING

- gear

4шт.

6

G46223

GEAR

- drive

1шт.

7

G46049

GEAR - driven

1шт.

8

G46908

O-RING

"O" RING - bearing seal

2шт.

9

G49637

RING

- back-up

2шт.

10

NSS

NOT SOLD SEPARAT

BODY (Order G45460 or A35081)

1шт.

11

A36058

X

POPPET ASSY. - relief valve, Includes: Ref. 12

1шт.

12

211-10

BALL

- relief valve poppet (11/32" dia.)

1шт.

13

G48516

SPRING

- relief valve

1шт.

14

G49094

PLUG - adjusting, relief valve

1шт.

20

A35618

LOCK VALVE

VALVE ASSY. - remote control, Includes: Ref. 21 - 35

2шт.

21

A35435

BODY

1шт.

22

G13807

OIL SEAL

SEAL - oil, valve spool (7/8 x 1-3/8 x 5/16")

1шт.

23

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - body seal (7/8 x 1-1/8 x 1/8")

1шт.

24

G49403

WASHER

- retainer, "O" ring

1шт.

25

A35436

SPOOL - valve

1шт.

26

A35302

WASHER - spool

2шт.

27

G10901

SLEEVE

- stop, spool spring

1шт.

28

A30083

VALVE SPRING

SPRING - valve spool

1шт.

29

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

30

G10903

GASKET

- end cap

1шт.

31

G1102

CAP - end

1шт.

32

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

34

G10902

PLUG - opening

1шт.

35

A31053

COPPER SEAL

GASKET - plug

1шт.

36

A35617

GASKET

- valve & cover (not part of valve)

1шт.
