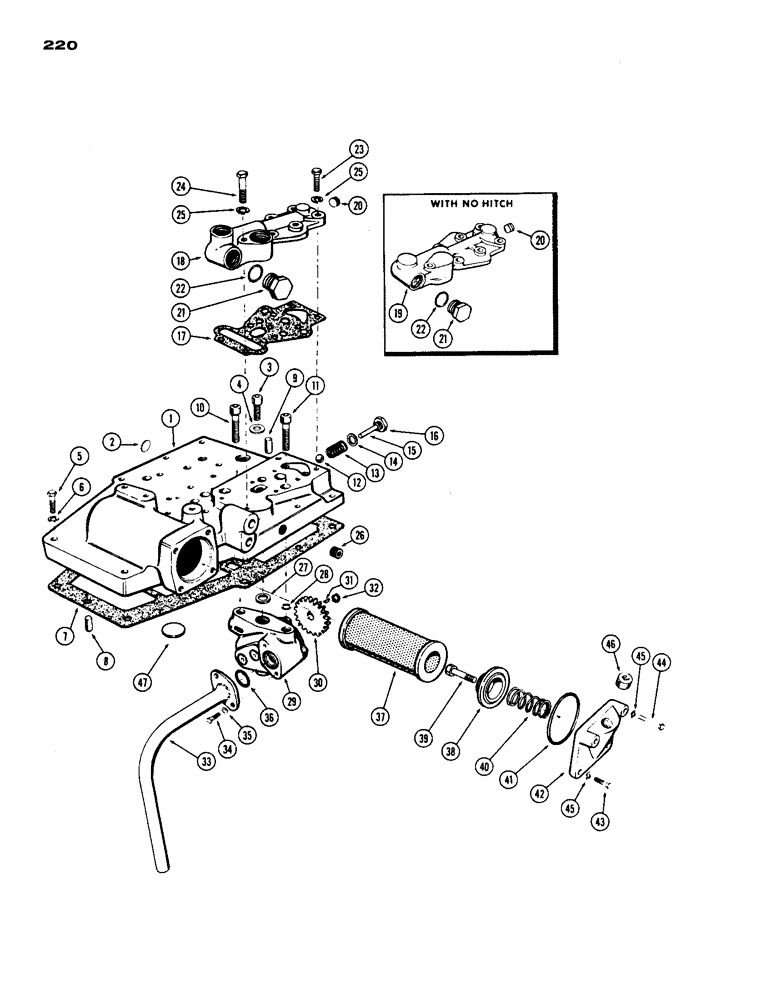

Запчасти Case IH 430 (220) - HYD. HOUSING & COVER, PUMP & FILTER, CASE-O-MATIC (08) - HYDRAULICS

1

A37869

HOUSING

ASSY. - adapter, hydraulic, Includes: Ref. 2 and 3

1шт.

2

41-12

PLUG,Exp, 3/4"

- expansion, 3/4" dia.

1шт.

2

A37977

PLUG

- housing

1шт.

3

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - cap, 3/8 x 1-3/4" N.C. socket hd.

1шт.

4

195-401

SEALING WASHER,3/8"

WASHER - sealing, 3/8"

2шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

5

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

5

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

92-6

LOCK WASHER,3/8"

7шт.

7

G46818

GASKET

- adapter housing

1шт.

8

G10711

PIN

- dowel, adapter housing rear (1/2 x 3/4")

1шт.

9

A29426

AXLE PIN

PIN - dowel, adapter housing front (3/8 x 3/4")

1шт.

10

165-104

SCREW - pump, 7/16 x 3/4" sckt. hd. locking

1шт.

11

165-106

SCREW - pump, 7/16 x 1" sckt. hd. locking

1шт.

12

211-13

BALL,1/2" Dia

- drop check valve 1/2" Dia

1шт.

13

A35442

VALVE SPRING

SPRING - drop check valve

1шт.

14

A58608

GASKET

- plug, drop check valve (Replaces A27927)

1шт.

15

138-104

LOCK PIN,3/16" x 2", Slotted

PIN - roll, drop check valve (3/8" x 2")

1шт.

16

A14280

PLUG

- drop check valve

1шт.

17

A35617

GASKET

- cover, adapter housing

1шт.

18

A35443

RIVET

COVER - adapter housing (w/hitch)

1шт.

19

A35440

COVER - adapter housing (w/no hitch)

1шт.

20

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

21

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 22 Hex Hd, 7/8"-14 ORB

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - plug (3/4 x 15/16 x 3/32")

1шт.

23

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex. hd.

7шт.

24

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16 x 1-3/4" N. C. hex. hd.

1шт.

25

92-5

LOCK WASHER,5/16"

8шт.

26

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" hex. socket hd.

1шт.

27

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - pump to housing (3/4 x 15/16 x 3/32")

1шт.

28

G16785

RING

- dowel, Serial Range: pump-housing

2шт.

29

G45460

PUMP

ASSY. - hydraulic (Repairs Figure 222)

1шт.

30

G16797

GEAR

- pump drive

1шт.

31

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Pump gear #5, 1/8" x 5/8"

1шт.

32

G46176

SNAP RING,#56, Ext

RING - snap, , gear to pump #56, Ext

1шт.

33

A35210

TUBE - pump suction

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - tube to pump (7/8 x 1-1/8 x 1/8")

1шт.

37

A36524

FILTER, ELEMENT

ELEMENT - filter, hydraulic oil

1шт.

38

A36523

CAP

- retainer, filter element

1шт.

39

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

40

A29993

VALVE SPRING

SPRING - retainer, filter element

1шт.

41

A29884

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

"O" RING - filter cover (2-3/8 x 2-5/8 x 1/8")

1шт.

42

G1353

CAP - cover, oil filter

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

44

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

45

92-6

LOCK WASHER,3/8"

4шт.

46

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe, 3/4" socket hd.

1шт.

47

41-200

PLUG - housing (w/no hyd. pump) (21/32" expansion)

1шт.
