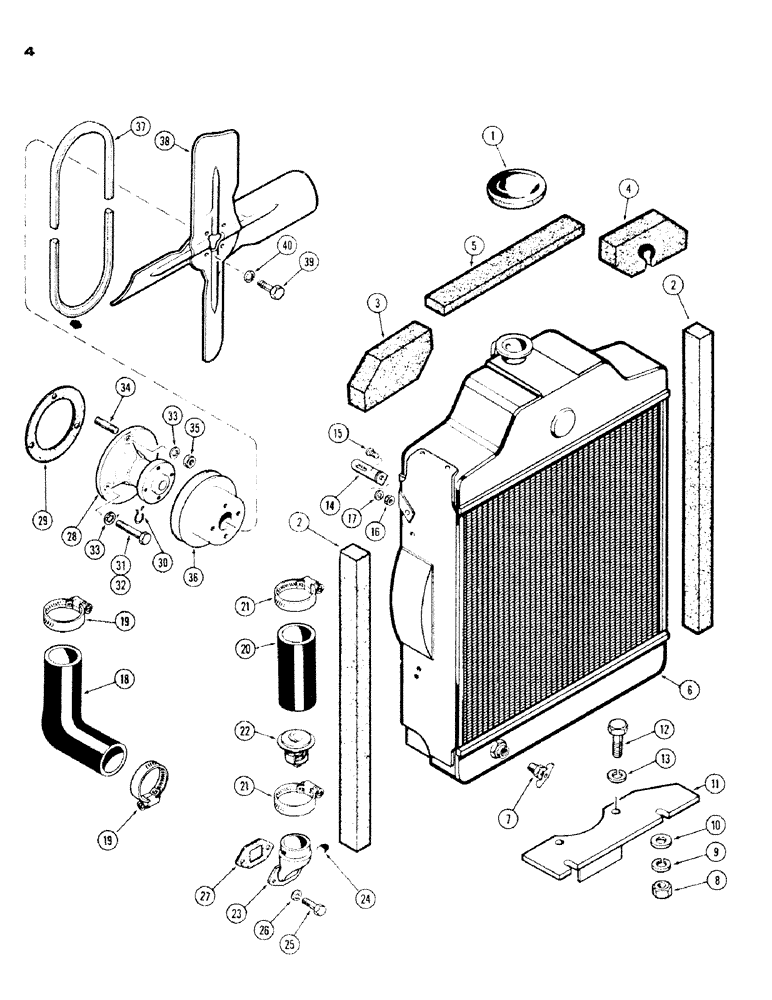

Запчасти Case IH 430 (004) - ENGINE COOLING SYSTEM, 430, 148B, SPARK IGNITION ENGINE (02) - ENGINE

1

G45179

CAP

CAP - radiator

1шт.

2

G46337

SPARE PART BAFFLE - side, radiator

2шт.

3

G46278

BAFFLE

BAFFLE - R. H. top, radiator

1шт.

4

G46279

BAFFLE

BAFFLE - L. H. top, radiator

1шт.

5

G46280

BAFFLE

BAFFLE - top center

1шт.

6

G45177

SPARE PART RADITOR

1шт.

7

217-103

COCK, DRAIN

VALVE - drain, radiator

1шт.

8

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C.

2шт.

9

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

10

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64"

2шт.

11

A35796

SUPPORT

BRACKET - radiator mounting

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

14

G10838

SPARE PART BRACE -, Serial Range: radiator-engine

2шт.

15

173-207

X

SCREW - 1/4 x 5/8" N.C. rd. hd.

2шт.

16

219-101

GUN, GREASE

GREASE GUN NUT - 1/4" N.C. hex.

2шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower, Radiator to Pump

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

20

A30074

HOSE

HOSE - upper, elbow to radiator (1-3/4" I.D. x 2")

1шт.

21

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

3шт.

22

G11005

CASE

THERMOSTAT (177 degrees to 182 degrees F)

1шт.

23

G11087

SPARE PART ELBOW - outlet, Includes: Ref. 24

1шт.

24

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

25

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

27

A30003

GASKET

GASKET -, Serial Range: elbow-head

1шт.

28

G11956

WATER PUMP

WATER PUMP ASSY. - complete, Includes: Ref. 29 and 30

1шт.

28

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

28

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

29

A38083

GASKET

GASKET - pump to cover (Replaces G46875)

1шт.

30

A30067

RING

RING - retainer

1шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

32

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N. C. hex. hd.

1шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

34

A29433

STUD

STUD - pump mounting (3/8" N.C. x 1")

1шт.

35

25-106

NUT,3/8"-16, G5

NUT - 3/8" N. C. hex.

1шт.

36

G11339

PULLEY

PULLEY - fan & pump drive

1шт.

37

G46238

BELT,0.55" W x 17.78" L

Pump Drive

1шт.

38

A29982

FAN - engine (w/spot welded hub) (production only) (Order G45244)

1шт.

G45244

FAN

FAN - engine (w/riveted blades) (used for repairs only) (not illust.)

1шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

40

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.
