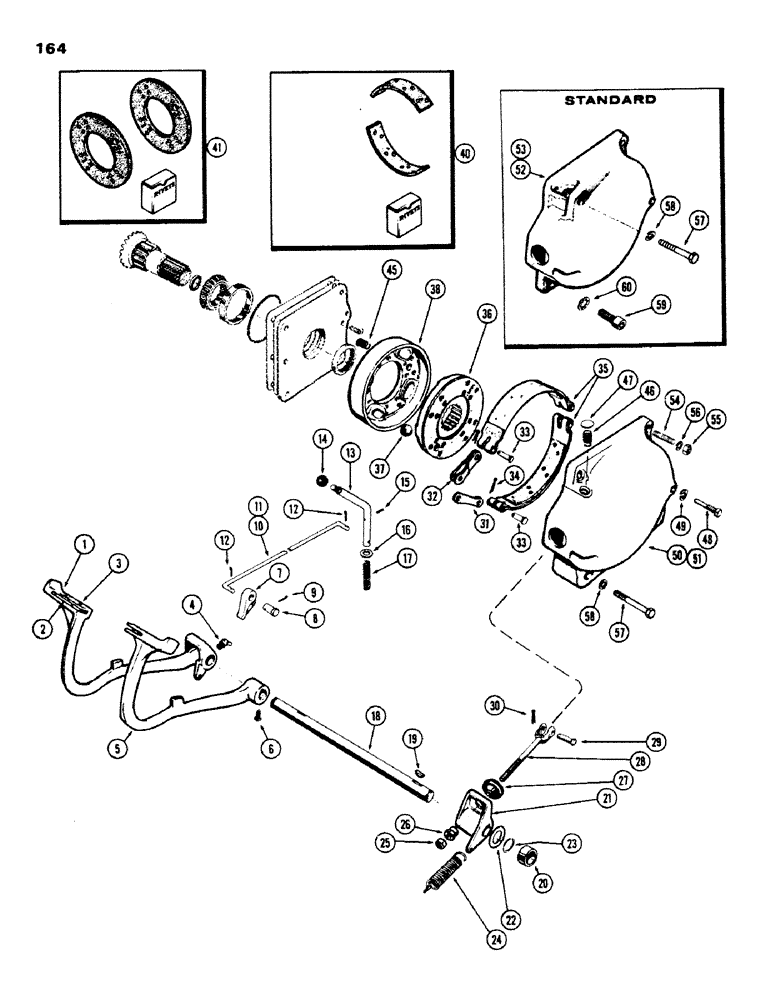

Запчасти Case IH 430 (164) - BRAKE SYSTEM, 530 SERIES (07) - BRAKES

1

G13012

PEDAL

S ASSY. - R. H. brake, Includes: Ref. 2 and 3

1шт.

2

A29086

INTERLOCK - pedal

1шт.

3

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, , Interlock ret. 1/4" x 7/8", Slotted

1шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, R.H. pedal, 1/8" P.T., 45 degrees

1шт.

5

G13013

PEDAL

ASSY. - L. H. brake, Includes: Ref. 6

1шт.

6

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set, 3/8 x 5/8" N. C. sq. hd. cup pt.

1шт.

7

G16604

BRAKE LINE

PAWL - brake lock

1шт.

8

A30119

AXLE PIN

PIN - pivot, brake lock

1шт.

9

132-48

COTTER PIN,1/8" x 1"

PIN - cotter, 3/32 x 5/8"

1шт.

10

G10764

DRAG LINK

LINK - brake lock (See ref. 11) (Straight)

1шт.

11

A36606

LINK - brake lock (w/diff. lock) (Offset)

1шт.

12

132-25

COTTER PIN,3/32" x 5/8"

PIN - cotter, 1/8 x 1"

2шт.

13

G10765

LEVER

- hand, brake lock release

1шт.

14

G10766

KNOB

- hand lever

1шт.

15

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

16

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 13 ga.)

1шт.

17

G10707

VALVE SPRING

SPRING - release lever

1шт.

18

G10708

SHAFT

- cross, brake pedal

1шт.

19

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Brake pedal & lever #15, 1/4" x 1"

2шт.

20

16783

ANGLE

SPACER - cross shaft (w/C-O-M only)

1шт.

21

G1057

LEVER

- L. H. brake

1шт.

22

B18145

WASHER

- cross shaft (1-3/32" x 1-7/8" x 16 ga.)

2шт.

23

G62093

RING - snap, cross shaft

2шт.

24

G10848

SPRING

- return, pedal & lever

2шт.

25

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N. F. hex.

2шт.

26

G10709

NUT

- adjusting, brake rod

2шт.

27

G10943

DUST CAP

CAP - dust, brake rod

2шт.

28

G46351

ROD

- brake

2шт.

29

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod to link

2шт.

30

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

31

G46345

LINK

- straight, brake actuating

4шт.

32

G46344

LINK

- offset, brake actuating

4шт.

33

G49082

PIN,14.22mm OD x 40.03mm L

-, Serial Range: link-band

4шт.

34

132-26

COTTER PIN

PIN- split (Cotter), 3/32" x 3/4"

2шт.

35

G45468

BRAKE LINING

BAND - actuating (Set of 2)

2шт.

36

NLS

NO LONGER SERVICED

- brake

2шт.

37

211-21

BALL

- actuating (1" dia.)

8шт.

38

G45361

DRUM

- actuating

2шт.

G45391

SET

KIT - lining (band, disc and drum), Includes: Ref. 40 and 41

2шт.

40

A41728

LINING

KIT - lining, brake band

1шт.

41

A41552

LINER

KIT - lining, brake disc

1шт.

45

G48508

SPRING

- disc return

4шт.

46

G48507

SPRING

- band return

4шт.

47

41-13

GUARD,Exp, 13/16"

- return spring, 13/16" expansion

4шт.

48

G15801

BOLT

- anchor, actuating band

2шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

50

G1400

COVER - R.H. brake (G.P.)

1шт.

51

G1401

COVER - L.H. brake (G.P.)

1шт.

52

G1394

COVER

- R.H. brake (Std.)

1шт.

53

G1395

COVER

- L.H. brake (Std.)

1шт.

54

A29336

STUD

- cover (1/2" N.F x 2-1/2")

4шт.

55

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

56

92-8

LOCK WASHER,1/2"

4шт.

57

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cover Hex, 1/2"-13 x 3 3/4", G5

2шт.

58

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

59

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - 1/2 x 1-3/4" N.C. socket hd. (Std.)

2шт.

60

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
