Запчасти Case IH 430 (242) - BELT PULLEY (06) - POWER TRAIN

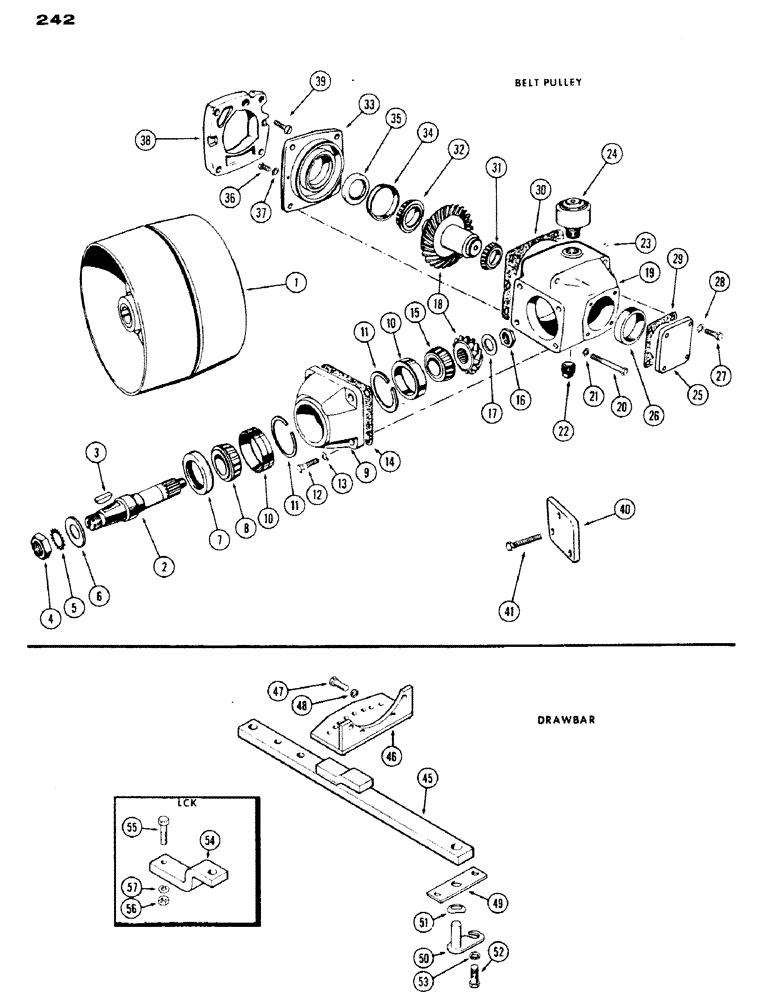

Схема запчастей Case IH 430 - (242) - BELT PULLEY (06) - POWER TRAIN
38
10
24
40
25
22
27
53
5
2
46
14
7
57
34
21
52
49
45
10
23
54
28
32
13
18
11
19
50
4
17
39
26
8
51
30
55
41
36
20
31
16
12
48
29
47
3
56
15
11
19
1
6
37
33
35

Артикул

Название

Примечание

Количество

1

G14189

PULLEY - belt (10-1/4" dia.)

1шт.

2

A36055

SHAFT

- pulley

1шт.

3

126-144

WOODRUFF KEY,#129, 3/8" x 2 1/8", HT

KEY - pulley to shaft (#129 Woodruff)

1шт.

4

25-1516

NUT,Jam, 1"-14, G5

- jam, 1" N. F. hex.

1шт.

5

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

6

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- (1-1/16 x 2-1/2 x 11/64")

1шт.

7

G13817

SEAL ASSY.

SEAL - oil, pulley shaft (1-25/32 x 2-3/4 x 1/2")

1шт.

8

G15213

ROLLER BEARING

CONE - outer bearing, pulley shaft

1шт.

9

G14188

HOUSING ASSY. - output, Includes: Ref. 10 and 11

1шт.

10

A26680

ROLLER BEARING,2.7510" OD x 0.75"

CUP - bearing

2шт.

11

A29330

RING, SNAP

RING - snap, bearing cup

2шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

G46832

GASKET - output housing (green .003")

1шт.

15

A36054

CONE

- inner bearing, output shaft

1шт.

16

G16614

NUT

- lock (3/4"-24 thrd.)

1шт.

17

195-45

WASHER,3/4"

1шт.

18

A37736

GEAR SET - pinion (matched)

1шт.

19

G1297

HOUSING - pinion gear

1шт.

20

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

(w/ind. P.T.O.) Hex, 1/2"-13 x 4 1/2", G5

4шт.

20

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

(w/std. P.T.O.) Hex, 1/2"-13 x 5 1/2", G5

3шт.

21

92-8

LOCK WASHER,1/2"

4шт.

22

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

23

221-1849

PLUG

- pipe, 1/8" socket hd.

1шт.

24

A9238

BREATHER

- oil

1шт.

25

G14186

HOUSING ASSY. - rear bearing, pinion gear, Includes: Ref. 26

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - rearbearing, pinion

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

G46830

GASKET - rear housing (blue .005")

1шт.

29

G46834

GASKET - rear housing (brown .010")

1шт.

30

G46831

GASKET - front housing (blue .005")

1шт.

30

G46833

GASKET

- front housing (brown .010")

1шт.

31

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - rear bearing, pinion

1шт.

32

G15215

ROLLER BEARING

CONE - front bearing, pinion

1шт.

33

A37645

CARRIER

HOUSING ASSY. - front bearing, pinion gear, Includes: Ref. 34

1шт.

34

G15214

BEARING CUP

CUP - front bearing

1шт.

35

G13817

SEAL ASSY.

SEAL - oil, front brg. hsg. (1-25/32 x 2-3/4 x 1/2")

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

G4538

PLATE - adapter (w/std. P.T.O.)

1шт.

39

66-824

SCREW - 1/2 x 1-1/2" N. C. ctsk. hd.

1шт.

40

T134

PULLER - belt pulley

1шт.

41

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N. C. hex. hd.

3шт.

45

A37809

BAR

DRAWBAR - (35-1/2" long)

1шт.

46

G30266

SUPPORT

- rear, drawbar

1шт.

47

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Rear support, drawbar Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

48

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

4шт.

49

G10617

SUPPORT

- front, drawbar

1шт.

50

G14403

PIN

- pivot, drawbar

1шт.

51

A35270

WASHER

- spring, drawbar

1шт.

52

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Front support, drawbar Hex, 3/4"-10 x 1 1/2", G5

2шт.

53

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar 3/4"

2шт.

54

A36754

BRACKET - raised, drawbar (L.C.K.)

1шт.

55

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Drawbar Hex, 5/8"-11 x 3", G5

2шт.

56

25-1010

NUT,5/8"-11, G5

Drawbar 5/8"-11, G5

2шт.

Выбрано товаров: 56
