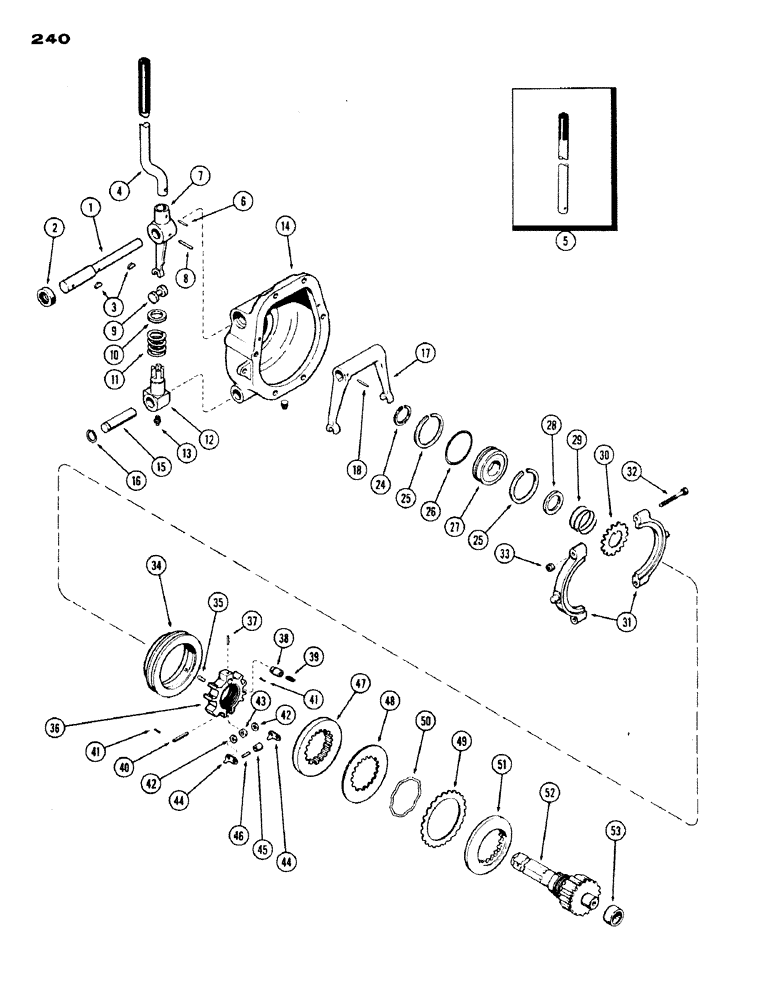

Запчасти Case IH 430 (240) - INDEPENDENT P.T.O. CLUTCH AND LINKAGE (06) - POWER TRAIN

1

A37696

SHAFT

- cross, clutch control

1шт.

2

G13818

OIL RESERVOIR

SEAL - oil, cross shaft (1 x 1-1/2 x 5/16")

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

KEY - throwout yoke (#16 Woodruff)

2шт.

4

A38143

LEVER - hand, P.T.O. throwout (offset), Start Serial: 8307516

1шт.

5

A37320

LEVER - hand, P.T.O. throwout (straight), Serial Range: -8307516

1шт.

6

138-115

LOCK PIN,7/32" x 1 1/8", Slotted

PIN, LOCK, 7/32" x 1-1/8", Slotted

1шт.

7

A37697

LEVER - brake, P.T.O.

1шт.

8

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

PIN, 5/16" x 1 5/8", Slotted

1шт.

9

A37684

AXLE PIN

PIN - over center lock

1шт.

10

A38412

WASHER

- thrust, actuator spring (Replaces A37683)

1шт.

11

A37699

SPRING

- brake actuator

1шт.

12

A37698

ARM

- pivot, brake lever

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

14

A37677

HOUSING ASSY. - clutch, P.T.O., Includes: Ref. 15

1шт.

15

A37679

SHAFT

- brake pivot, P.T.O.

1шт.

16

B18206

SNAP RING,#87, Ext

RING - snap, , brake lever shaft #87, Ext

1шт.

17

A37682

YOKE

- throwout

1шт.

18

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

PIN, 3/16" x 5/8", Slotted

1шт.

24

A21619

CIRCLIP

RING - snap, rear bearing, output shaft

1шт.

25

A27369

RING, SNAP

RING - snap, rear bearing, to housing, Includes: Ref. 26

2шт.

26

G46844

O-RING,2.628" ID

"O" RING - bearing seal (2-5/8 x 2-13/16 x 7/64")

1шт.

27

G13611

BALL BEARING

BEARING - rear, output shaft

1шт.

Bearing includes g13819 oil seal

1шт.

28

A37695

WASHER

- pressure spring adjusting

1шт.

29

A37694

SPRING

- plate pressure

1шт.

30

A38305

LARGE PLATE

PLATE - clutch adjusting (Replaces A37693)

1шт.

31

A37675

COLLAR ASSY.

- clutch throwout, Includes: Ref. 32

1шт.

32

14-540

BOLT,Hex, 5/16" - 24 x 2-1/2", Gr 5

- 5/16 x 2-1/2" N.F. hex. hd.

2шт.

33

131-575

NUT

NUT - 7/16" N.F. (thin Flexlock)

2шт.

34

A38282

SLEEVE

ASSY. - sliding (includes bonded brake lining NSS) (Replaces A37672)

1шт.

35

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

36

A38280

CARRIER

- clutch lever (Replaces A37668)

1шт.

37

138-43

LOCK PIN,3/32" x 7/8", Slotted

PIN, 3/32" x 7/8", Slotted

1шт.

38

A37691

PIN

- lock, clutch adjusting

1шт.

39

A37692

VALVE SPRING

SPRING - lock pin, clutch adjusting

1шт.

40

A37671

AXLE PIN,6.29mm OD x 42.16mm L

PIN - pivot, clutch link

3шт.

41

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

42

A37689

ROLLER

- outer, clutch link

6шт.

43

A37688

ROLLER

- inner, clutch link

3шт.

44

A38281

DRAG LINK

LINK - clutch plate (Replaces A37669 & A38281)

6шт.

REF. #44 - part number s/b A38281

1шт.

(See quality comments - A57917)

1шт.

45

A37670

SPACER

- clutch link

3шт.

46

A37690

AXLE PIN,6.31mm OD x 18.9mm L

PIN - link roller

3шт.

47

A37667

PLATE

- pressure, clutch

1шт.

48

A57170

BRAKE DISC

PLATE - clutch, internal tooth (Replaces A7102)

7шт.

49

A11127

PLATE

- clutch, external tooth

8шт.

50

A27591

VALVE SPRING

SPRING - separator, clutch plate

8шт.

51

A7101

PLATE

- backing, clutch

1шт.

52

A37666

SHAFT

- output, P.T.O.

1шт.

53

F7232

BEARING

- needle, output shaft

1шт.

G46844 O'RING

1шт.

ARE USED IN THIS BALL BEARING

1шт.
