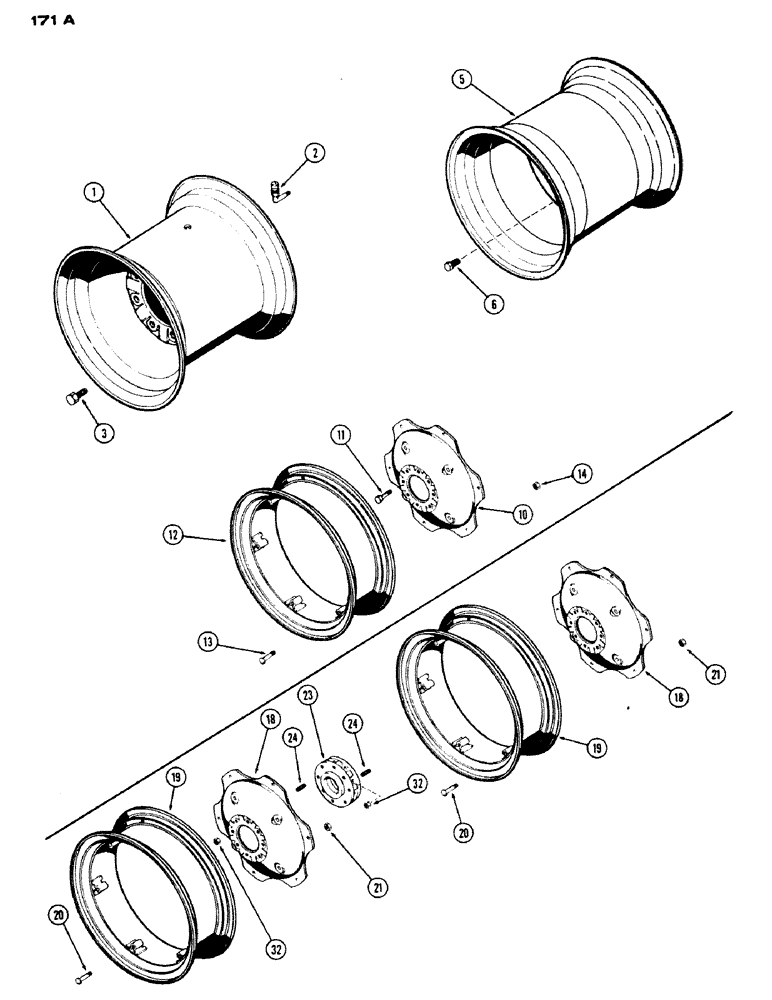

Запчасти Case IH 430 (171A) - L.C.K. REAR WHEELS (06) - POWER TRAIN

1

A37108

WHEEL

- integral (20.5 x 38 tubeless tire)

2шт.

2

A37110

VALVE - tubeless tire (includes core and cap)

2шт.

3

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub, 5/8 x 1" N.F. Spec., Start Serial: 8329561

16шт.

3

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16 x 1-5/32" N.F. spec., Serial Range: -8329561

16шт.

5

A36744

RIM

WHEEL - integral (18.4 x 16 tire)

2шт.

6

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub, 5/8 x 1" N.F. spec., Start Serial: 8329561

16шт.

6

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16 x 1-5/32" N.F. spec., Serial Range: -8329561

16шт.

10

G46240

DISC

WHEEL - disc, 24 demountable rim

2шт.

11

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub, 5/8 x 1" N.F. spec., Start Serial: 8329561

12шт.

11

B18264

WHEEL BOLT

BOLT - disc to hub, 9/16 x 1-5/32" N.F. spec., Serial Range: -8329561

12шт.

12

A35375

RIM - demountable (takes 8.3 x 24 tire)

2шт.

13

G10701

BOLT

- rim (5/8 x 2-11/16" N.F. spec.)

12шт.

14

129-127

NUT,5/8"-18, G5

12шт.

18

G46240

DISC

- wheel, 24" demountable rim, dual

4шт.

19

A35375

RIM - demountable (takes 8.3 x 24 tire), dual

4шт.

20

G10701

BOLT

- disc to rim (5/8 x 2-11/16" N.F. special), dual

24шт.

21

129-127

NUT,5/8"-18, G5

Rim bolt, Dual 5/8"-18, G5

24шт.

23

A38211

ADAPTER

- dual wheel (for 5/8" N.F. bolts), Start Serial: 8329561

2шт.

23

A36528

ADAPTER - dual wheel (for 9/16" N.F. bolts), Serial Range: -8329561

2шт.

24

A38210

STUD

- 5/8" N.F. x 2-3/8" (Used w/A38211 adapter), dual

32шт.

24

A36527

STUD - 9/16" & 5/8" N.F. x 2-3/8" (used w/A36528 adapter), dual

32шт.

25

25-1710

NUT,5/8"-18, G5, Hvy

- adapter studs, 5/8" N.F. hex., dual

32шт.
