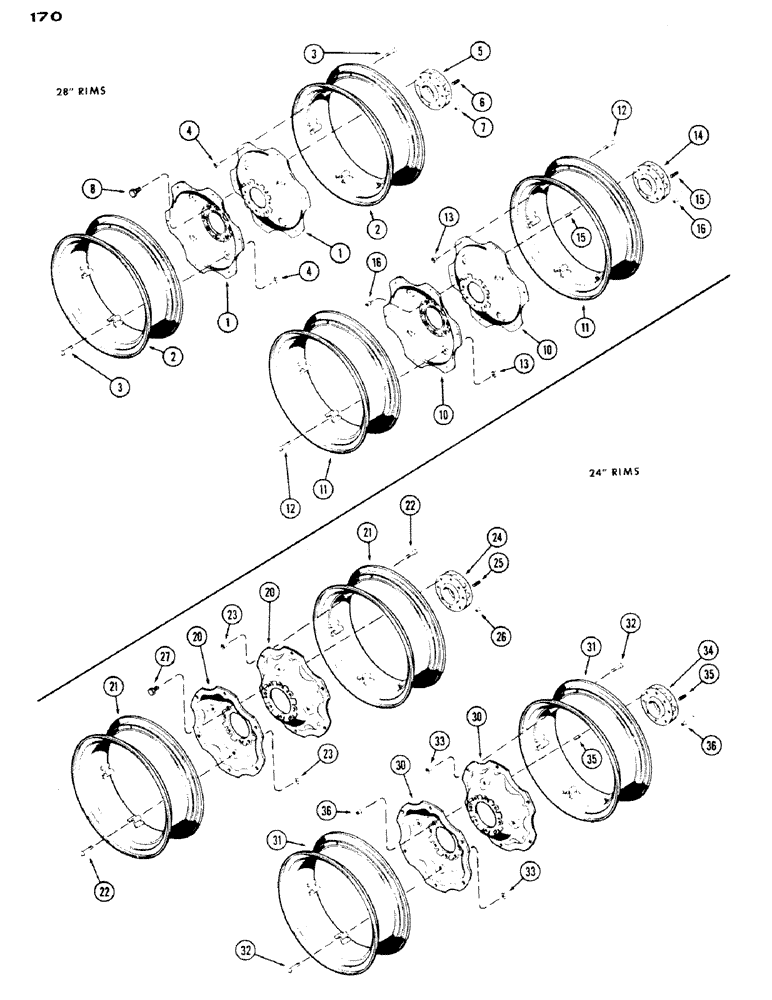

Запчасти Case IH 430 (170) - DUAL REAR WHEELS, FOUR WHEEL (06) - POWER TRAIN

1

G12001

DISC

- wheel, 28" demountable rim, Start Serial: 8329561

4шт.

2

G12002

RIM

- demountable (takes 12.4 x 28 tire), w/28", Start Serial: 8329561

4шт.

3

G10701

BOLT

- rim, (5/8 x 2-11/16" spec.), w/28", Start Serial: 8329561

24шт.

4

129-127

NUT,5/8"-18, G5

Rim bolt, w/28" rim 5/8"-18, G5, Start Serial: 8329561

24шт.

5

A38211

ADAPTER

- dual wheel (w/5/8" N.F. thrds.), w/28" rim, Start Serial: 8329561

2шт.

6

A38210

STUD

- adapter, 5/8" N.F. x 2-3/8", w/28" rim, Start Serial: 8329561

16шт.

7

25-1710

NUT,5/8"-18, G5, Hvy

- adapter stud, 5/8" N.F. spec., w/28" rim, Start Serial: 8329561

16шт.

8

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub, 5/8 x 1" N.F. spec., w/28" rim, Start Serial: 8329561

16шт.

10

G12001

DISC

- wheel, 28" demountable rim, Serial Range: -8329561

4шт.

11

G12002

RIM

- demountable (takes 12.4 x 28 tire), w/28" rim, Serial Range: -8329561

4шт.

12

G10701

BOLT

- rim, 5/8 x 2-11/16" spec., w/28", Serial Range: -8329561

24шт.

13

129-127

NUT,5/8"-18, G5

Rim bolt, w/28" rim 5/8"-18, G5, Serial Range: -8329561

24шт.

14

A36528

ADAPTER - dual wheel (w/9/16" N.F. thrds.), w/28" rim, Serial Range: -8329561

2шт.

15

A36527

STUD - adapter, 9/16" N.F. x 5/8" N.F. x 2-3/8", w/28" rim, Serial Range: -8329561

32шт.

16

G62206

NUT - adapter stud, 5/8" N.F. spec., w/28" rim, Serial Range: -8329561

32шт.

20

G46240

DISC

- wheel, 24" demountable rim, Start Serial: 8329561

4шт.

21

G45205

RIM

- demountable (takes 12.4 x 24 tire), w/24" rim, Start Serial: 8329561

4шт.

22

G10701

BOLT

- rim, 5/8 x 2-11/16" spec., w/24", Start Serial: 8329561

24шт.

23

129-127

NUT,5/8"-18, G5

Rim bolt, w/24" rim 5/8"-18, G5, Start Serial: 8329561

24шт.

24

A38211

ADAPTER

- dual wheel (w/5/8" N.F. thrds.), w/24" rim, Start Serial: 8329561

2шт.

25

A38210

STUD

- adapter, 5/8" N.F. x 2-3/8", w/24" rim, Start Serial: 8329561

16шт.

26

25-1710

NUT,5/8"-18, G5, Hvy

- adapter stud, 5/8" N.F. spec., w/24" rim, Start Serial: 8329561

16шт.

27

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub, 5/8 x 1" N.F. spec., w/24" rim, Start Serial: 8329561

16шт.

30

G46240

DISC

- wheel, 24" demountable rim, Serial Range: -8329561

4шт.

31

G45205

RIM

- demountable (takes 12.4 x 24 tire), w/24", Serial Range: -8329561

4шт.

32

G10701

BOLT

- rim, 5/8 x 2-11/16" spec., w/24", Serial Range: -8329561

24шт.

33

129-127

NUT,5/8"-18, G5

Rim bolt, w/24" rim 5/8"-18, G5, Serial Range: -8329561

24шт.

34

A36528

ADAPTER - dual wheel (w/9/16" N.F. thrds.), w/24" rim, Serial Range: -8329561

2шт.

35

A36527

STUD - adapter, 9/16" N.F. x 5/8" N.F. x 2-3/8", w/24" rim, Serial Range: -8329561

32шт.

36

F62206

NUT

- adapter stud, 5/8" N.F. spec., w/ 24" rim, Serial Range: -8329561

32шт.
