Запчасти Case IH 430 (169C) - REAR WHEELS WITH 38 INCH RIMS, POWER ADJUSTABLE, GENERAL PURPOSE (06) - POWER TRAIN

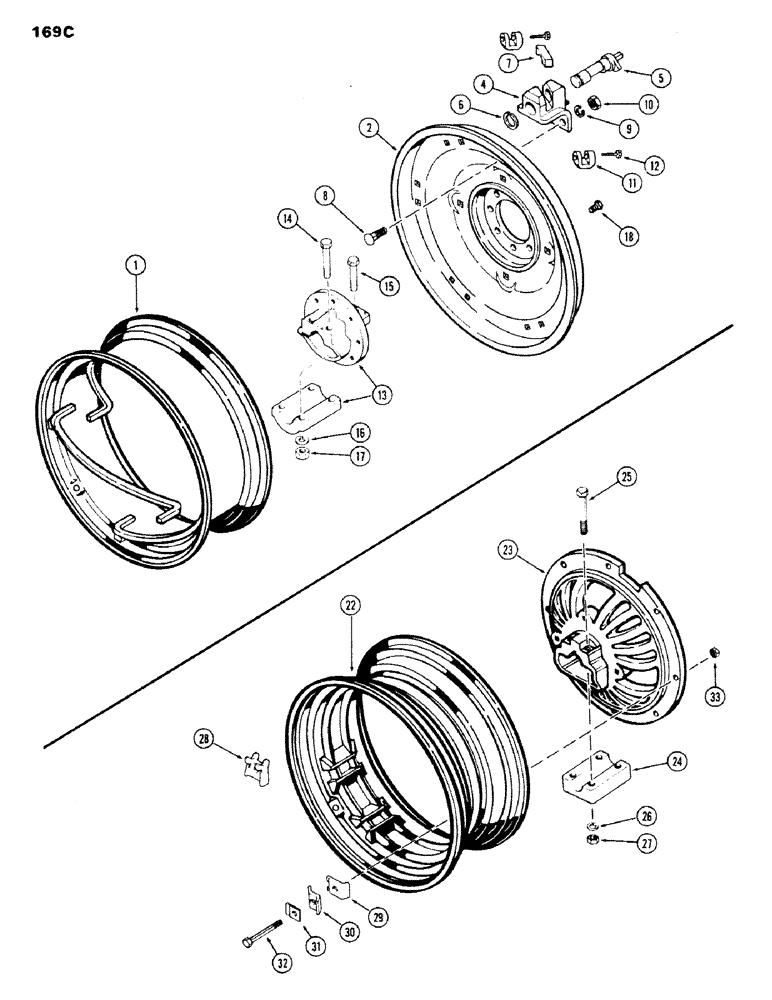

Схема запчастей Case IH 430 - (169C) - REAR WHEELS WITH 38 INCH RIMS, POWER ADJUSTABLE, GENERAL PURPOSE (06) - POWER TRAIN
14
16
11
23
31
9
6
27
26
32
12
22
10
15
13
1
4
24
5
33
30
29
7
28
18
8
17
2
25

Артикул

Название

Примечание

Количество

A38432

WHEEL ASSY., Includes: Ref. 1 - 12

2шт.

1

A41737

RIM - (takes 11.2 x 38 or 12.4 x 38 tire)

1шт.

2

A41738

WHEEL

DISC - wheel

1шт.

A41739

ECCENTRIC

PIN ASSY. - eccentric, Includes: Ref. 4 - 6

6шт.

4

NSS

NOT SOLD SEPARAT

BODY - eccentric pin

1шт.

5

A42898

PIN

- eccentric

1шт.

6

A42897

RING - snap, pin retaining

1шт.

7

A41741

BLOCK

- eccentric pin

6шт.

8

111-614

CARRIAGE BOLT,Short NK, 5/8"-11 x 1 5/8", G5

BOLT - pin body to disc (5/8 x 1-5/8" N.C. carr.)

12шт.

9

25-12

VALVE

WASHER - lock, 5/8"

12шт.

10

107-12

NUT - 5/8" N.C. hex.

12шт.

11

A41740

STOP

BODY - wheel stop

2шт.

12

A9440

STOP

SCREW - lock, stop body

2шт.

13

A38213

HUB - rear wheel

2шт.

14

G10841

BOLT

BOLT - hub, inner (3/4 x 4-1/2" N.F. hex.)

4шт.

15

G10840

BOLT

- hub, outer (3/4 x 3-3/4" N.F. hex.)

4шт.

16

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

8шт.

17

G10842

NUT

- 3/4" N.F. hex.

8шт.

18

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub (5/8 x 1" N.F. special)

16шт.

22

G45104

RIM - (takes 13.6 x 28 or 14.9 x 28 tire), cast rear wheels w/28" rims, power adjustable, 530 General Purpose

2шт.

23

G14322

WHEEL ASSY. - rear, cast, w/28" rims, Includes: Ref. 24 - 27, power adjustable, 530 General Purpose

2шт.

24

G1265

CLAMP - hub half, cast rear wheels w/28" rims, power adjustable, 530 General Purpose

1шт.

25

G49047

BOLT

- hub clamp (3/4 x 5/8" N.F. hex.), cast rear wheels w/28" rims, power adjustable, 530 General Purpose

4шт.

26

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , Cast rear wheels w/28" rims, power adjustable, 530 General Purpose Int Tooth, 3/4"

4шт.

27

G10842

NUT

- 3/4" N.F. hex., cast rear wheels w/28" rims, power adjustable, 530 General Purpose

4шт.

28

A26347

CLAMP

- rim drive, cast rear wheels w/28", power adjustable, 530 General Purpose

4шт.

29

A28219

CLAMP

- rim mounting (female), cast rear wheels w/ 28", power adjustable, 530 General Purpose

12шт.

30

A28220

CLAMP

- rim mounting (male), cast rear wheels w/28", power adjustable, 530 General Purpose

12шт.

31

A28733

LUG

- locking, rim clamp bolt, cast rear wheels w/28", power adjustable, 530 General Purpose

16шт.

32

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Rim clamp, cast rear wheels w/28", power adjustable, 530 General Purpose Hex, 5/8"-11 x 3", G5

16шт.

33

A27183

NUT

- rim clamp bolt (5/8" N.C. hex.), cast rear wheels w/28", power adjustable, 530 General Purpose

16шт.

Выбрано товаров: 31
