Запчасти Case IH 430 (168) - REAR WHEELS WITH 28 INCH RIMS, POWER ADJUSTABLE, WITH RAMP TYPE CLAMPS, FOUR WHEEL (06) - POWER TRAIN

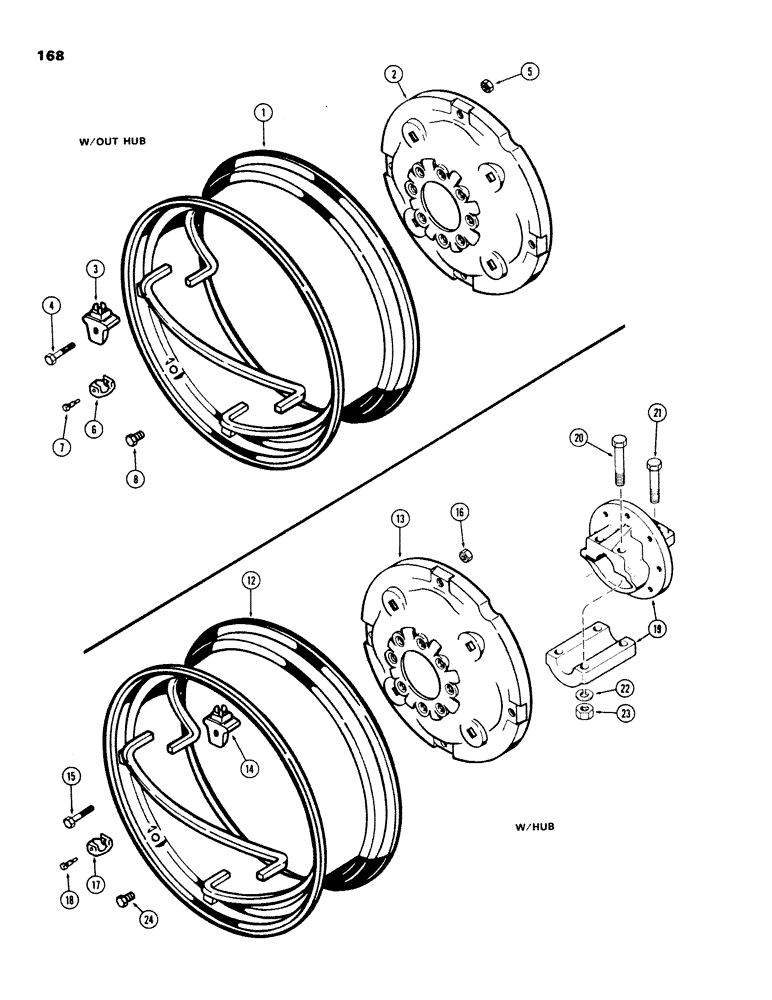

Схема запчастей Case IH 430 - (168) - REAR WHEELS WITH 28 INCH RIMS, POWER ADJUSTABLE, WITH RAMP TYPE CLAMPS, FOUR WHEEL (06) - POWER TRAIN
12
16
19
1
18
15
7
20
13
5
23
24
14
4
2
3
21
6
22
17
8

Артикул

Название

Примечание

Количество

A38653

WHEEL ASSY., Includes: Ref. 1 - 7

2шт.

1

G13266

RIM - (takes 13.6 x 28 or 14.9 x 28 tire)

1шт.

2

A38654

DISC - wheel

1шт.

3

A33171

CLAMP

-, Serial Range: rim-wheel

4шт.

4

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- clamp (3/4 x 3" N.C., sq. hd.)

4шт.

5

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

4шт.

6

A9406

STOP

LUG - rim stop

2шт.

7

A9440

STOP

SCREW - lock, stop lug

2шт.

8

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub (5/8 x 1" N.F. spec.), Start Serial: 8329561

16шт.

8

B18264

WHEEL BOLT

BOLT - disc to hub (9/16 x 1-5/32" N.F. spec.), Serial Range: -8329561

16шт.

A38653

WHEEL ASSY., general purpose, Includes: Ref. 12 - 18

2шт.

12

G13266

RIM - (takes 13.6 x 28 or 14.9 x 28 tire), general purpose

1шт.

13

A38654

DISC - wheel, general purpose

1шт.

14

A33171

CLAMP

- rim to wheel, general purpose

1шт.

15

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- clamp (3/4 x 3" N.C. sq. hd.), general purpose

4шт.

16

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.), general purpose

4шт.

17

A9406

STOP

LUG - rim stop, general purpose

2шт.

18

A9440

STOP

SCREW - lock, stop lug, general purpose

2шт.

19

A38213

HUB - rear wheel (For 5/8" N.F. bolts), general purpose, Start Serial: 8329561

2шт.

19

G1087

X

HUB - rear wheel (for 9/16" N.F. bolts), general purpose, Serial Range: -8329561

2шт.

20

G10841

BOLT

BOLT - hub, inner (3/4 x 4-1/2" N.F. hex.), general purpose

4шт.

21

G10840

BOLT

- hub, outer (3/4 x 3-3/4" N.F. hex.), general purpose

4шт.

22

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

4шт.

23

G10842

NUT

- hub bolts (3/4" N.F. hex.), general purpose

4шт.

24

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub (5/8 x 1" N.F. special), general purpose, Start Serial: 8329561

16шт.

24

B18264

WHEEL BOLT

BOLT - disc to hub (9/16 x 1-5/32" N.F. special), general purpose, Serial Range: -8329561

16шт.

Выбрано товаров: 26
