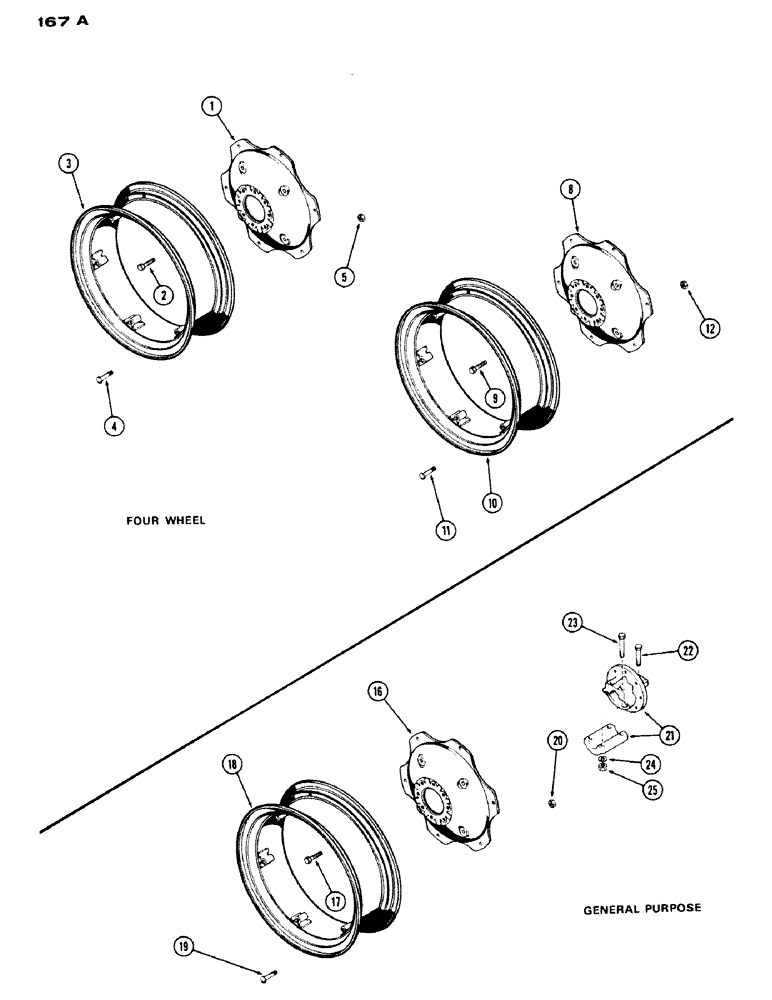

Запчасти Case IH 430 (167A) - REAR WHEELS WITH 28 INCH RIMS, DEMOUNTABLE, 4-WHEEL (06) - POWER TRAIN

1

G12001

DISC

- wheel

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub (5/8 x 1" N.F. special), Start Serial: 8329561

16шт.

2

B18264

WHEEL BOLT

BOLT - disc to hub (9/16 x 1-5/32" N.F. special), Serial Range: -8329561

16шт.

3

G45710

RIM

- (takes 13.6 or 14.9 x 28 tire)

2шт.

4

G10701

BOLT

- rim (5/8" x 2-11/16" N.F. spec.)

12шт.

5

129-127

NUT,5/8"-18, G5

Rim bolt 5/8"-18, G5

12шт.

8

G12001

DISC

- wheel

2шт.

9

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub (5/8 x 1" N.F. special), Start Serial: 8329561

16шт.

9

B18264

WHEEL BOLT

BOLT - disc to hub (9/16 x 1-5/32" N.F. special), Serial Range: -8329561

16шт.

10

G12002

RIM

- (takes 12.4 x 28 tire)

2шт.

11

G10701

BOLT

- rim (5/8 x 2-11/16" N.F. spec.)

12шт.

12

129-127

NUT,5/8"-18, G5

Rim bolt 5/8"-18, G5

12шт.

16

G12001

DISC

- wheel, general purpose

2шт.

17

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub (5/8 x 1" N.F. special), general purpose, Start Serial: 8329561

16шт.

17

B18264

WHEEL BOLT

BOLT - disc to hub (9/16 x 1-5/32" N.F. special), general purpose, Serial Range: -8329561

16шт.

18

G12002

RIM

- (takes 12.4 x 28 tire), general purpose

2шт.

18

G45710

RIM

- (takes 13.6 x 28 or 14.9 x 28 tire), general purpose

2шт.

18

A38637

RIM

- (takes 16.9 x 28 tire), general purpose

2шт.

19

G10701

BOLT

- rim (5/8 x 2-11/16" N.F. special), general purpose

12шт.

20

129-127

NUT,5/8"-18, G5

Rim bolt, General purpose 5/8"-18, G5

12шт.

21

A38213

HUB - rear wheel (for 5/8" N.F. bolts), general purpose, Start Serial: 8329561

2шт.

21

G1087

X

HUB - rear wheel (for 9/16" N.F. bolts), general purpose, Serial Range: -8329561

2шт.

22

G10841

BOLT

BOLT - hub, inner (3/4 x 4-1/2" N.F. hex.), general purpose

4шт.

23

G10840

BOLT

- hub, outer (3/4 x 3-3/4" N.F. hex.), general purpose

4шт.

24

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

8шт.

25

G10842

NUT

- hub bolts (3/4" N.F. hex.), general purpose

8шт.
