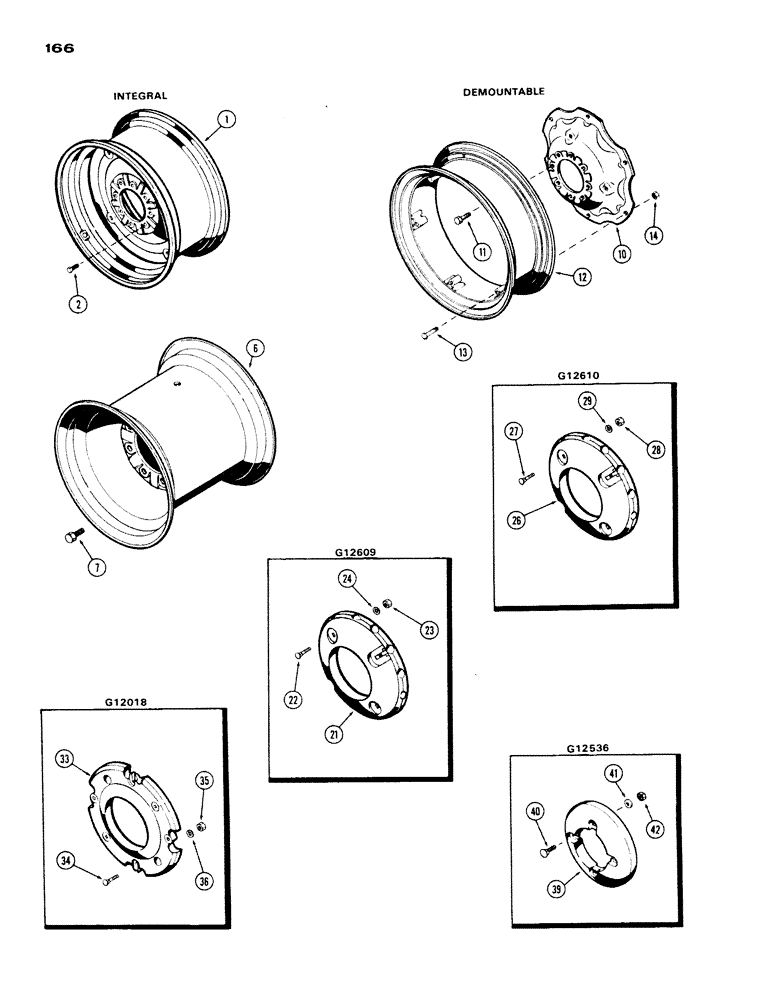

Запчасти Case IH 430 (166) - REAR WHEELS WITH 24 INCH RIMS, FOUR WHEEL, INTEGRAL (06) - POWER TRAIN

1

A35906

WHEEL

- (takes 16.9 x 24" tire) (models 430 & 530)

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub, 5/8 x 1" N.F. Special, Start Serial: 8329561

16шт.

2

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 x 1-5/32" N.F. Special), Serial Range: -8329561

16шт.

6

A36744

RIM

WHEEL - (takes 18.4 x 16 tire) (model 430 only)

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to hub (5/8 x 1" N.F. spec.), Start Serial: 8329561

16шт.

7

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 x 1-5/32" N.F. spec.), Serial Range: -8329561

16шт.

10

G46240

DISC

- wheel, demountable

2шт.

11

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - disc to hub, 5/8 x 1" N.F. Special, demountable, Start Serial: 8329561

16шт.

11

B18264

WHEEL BOLT

BOLT - disc to hub (9/16 x 1-5/32" N.F. spec.), demountable, Serial Range: -8329561

16шт.

12

G45205

RIM

- 10" (takes 12.4 x 24 tire) (models 430 & 530), demountable

2шт.

12

G45204

RIM

- 12" (takes 14.9 x 24 tire) (models 430 & 530), demountable

2шт.

12

A37091

RIM

- 15" (takes 16.9 x 24 tire) (models 430 & 530), demountable

2шт.

13

G10701

BOLT

- rim to disc (5/8 x 2-11/16" spec.), demountable

12шт.

14

129-127

NUT,5/8"-18, G5

Rim bolt, demountable 5/8"-18, G5

12шт.

G12809M

WEIGHT ATT. - 24" wheel (1st set), rear wheel, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT (78 lb.), rear wheel, for 24" wheels

2шт.

22

11-1036

BOLT (MACHINE)

BOLT - 5/8 x 2-1/4" N.C. rd. hd. sq. nk., rear wheel weights, for 24" wheels

4шт.

23

25-1010

NUT,5/8"-11, G5

Rear wheel weights, for 24" wheels 5/8"-11, G5

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights, for 24" wheels 5/8"

4шт.

G12610M

WEIGHT ATT. - 24" wheel (added set), rear wheel, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

WEIGHT (78 lb.), rear wheel, for 24" wheels

2шт.

27

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" N.C. rd. hd. sq. nk., rear wheel weights, for 24" wheels

4шт.

28

25-1010

NUT,5/8"-11, G5

Rear wheel weights, for 24" wheels 5/8"-11, G5

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights, for 24" wheels 5/8"

4шт.

G12018M

WEIGHT ATT. 28" wheel (not for cast wheels), Includes: Ref. 33 - 36

1шт.

33

NSS

NOT SOLD SEPARAT

WEIGHT (73 lbs.), for 28" wheels

2шт.

34

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" N.C. rd. hd. sq. nk., for 28" wheels

4шт.

35

25-1010

NUT,5/8"-11, G5

For 28" wheels 5/8"-11, G5

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , for 28" wheels 5/8"

4шт.

G12536M

WEIGHT ATT. - 28" wheel (for cast rear wheels), Includes: Ref. 39 - 42

1шт.

39

NSS

NOT SOLD SEPARAT

WEIGHT, for 28" wheels

2шт.

40

11-1060

BOLT - 5/8 x 3-3/4" N.C. rd. hd. sq. nk., for 28" wheels

4шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , for 28" wheels 5/8"

4шт.

42

25-1010

NUT,5/8"-11, G5

For 28" wheels 5/8"-11, G5

4шт.
