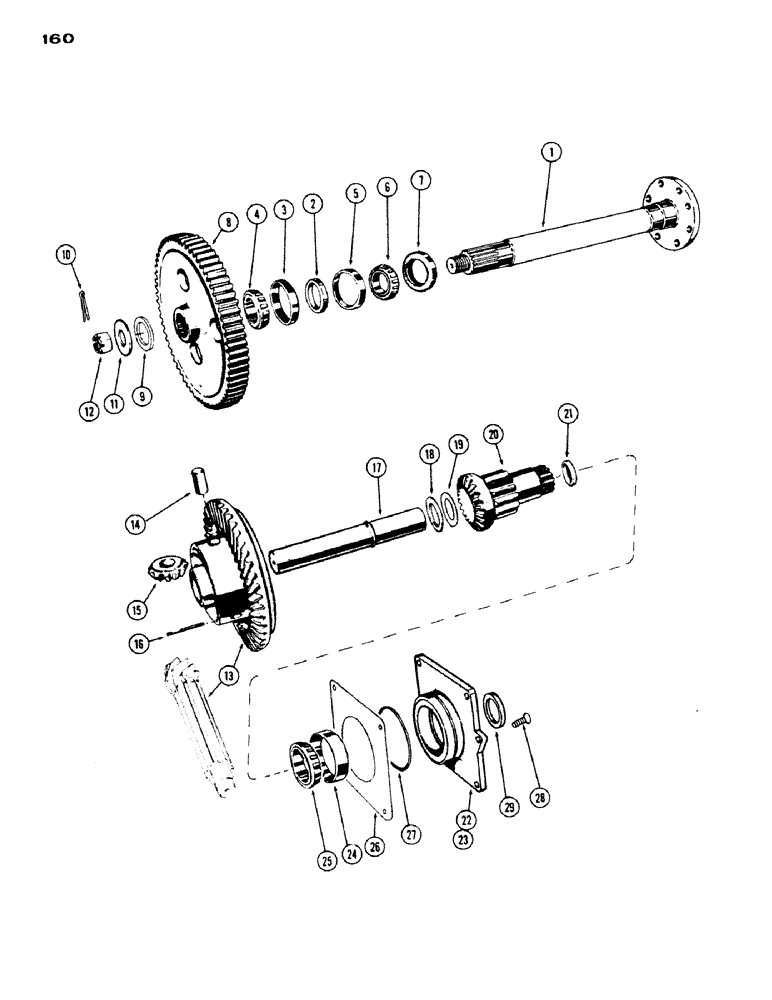

Запчасти Case IH 430 (160) - REAR AXLE AND DIFFERENTIAL, STANDARD (06) - POWER TRAIN

1

A38209

SHAFT

- rear axle, flanged (takes 5/8" N.F. bolts), Start Serial: 8329561

2шт.

1

A37221

SHAFT

- rear axle, flanged (takes 9/16" N.F. bolts), Serial Range: -8329561

2шт.

2

G13801

OIL SEAL

- oil, inner, axle shaft (2-1/4 x 3-1/8 x 1/2")

2шт.

3

G10415

BEARING CUP

CUP - inner bearing, axle shaft (3-15/16" O.D.)

2шт.

4

G10414

ROLLER BEARING

CONE - inner bearing, axle shaft (2-17/64" I.D.)

2шт.

5

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, axle shaft (4-11/32" O.D.)

2шт.

6

G15207

ROLLER BEARING

CONE - outer bearing, axle shaft (2-5/8" I.D.)

2шт.

7

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, outer, axle shaft (3 x 4-11/32 x 1/2")

1шт.

8

A37925

GEAR

- final drive (must be used w/A37929 side gear) (13-3/8" dia.), Start Serial: 8309386

2шт.

8

G30353

GEAR

ASSY. - final drive (must be used w/G30596 side gear) (13-7/16" dia.), Includes: Ref. 9, Serial Range: -8309386

2шт.

9

G49616

SPACER

- drive gear (2-7/8" O.D. x 3/4")

1шт.

10

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

11

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, axle

2шт.

12

A30075

WHEEL NUT

- axle shaft (1-1/2" N. F. slotted)

2шт.

13

A38402

KIT

GEAR SET - ring & countershaft (matched set) Std. & G.P. (Replaces A37195) (7 & 43 teeth)

1шт.

13

A37058

GEAR SET - ring & countershaft (matched set) L.C.K. (9 & 43 teeth)

1шт.

14

A37097

PIN

SHAFT - pinion gear

3шт.

15

G15483

GEAR

- pinion

3шт.

16

138-2036

PIN,3/16" x 2", Coiled

3шт.

17

A37186

SHAFT

- cross, differential

1шт.

18

A30539

WASHER

- thrust, cross shaft (.089")

1шт.

18

A39007

WASHER

- thrust, cross shaft (.094")

1шт.

18

A30533

WASHER

- thrust, cross shaft (.099")

1шт.

18

A30045

WASHER

- thrust, cross shaft (.104")

1шт.

18

A30543

WASHER

- thrust, cross shaft (.109")

1шт.

18

A30051

WASHER

- thrust, cross shaft (.119")

1шт.

19

A29388

WASHER

SHIM - thrust washer (.010")

1шт.

20

A37929

GEAR

ASSY. - side (Must be used w/A37925 drive gear) (3-1/8" spur gear dia.) (incl. Ref. 21), Start Serial: 8309386

2шт.

20

G30596

GEAR

ASSY. - side (Must be used w/G30353 drive gear) (3" spur gear dia.) (incl. Ref. 21), Serial Range: -8309386

2шт.

21

A29902

PLUG

- side gear

1шт.

22

G30490

CARRIER

ASSY. - bearing, R.H. side gear (incl. Ref. 24), Includes: Ref. 24

1шт.

23

G30491

CARRIER

ASSY. - bearing, L.H. side gear (incl. Ref. 24), Includes: Ref. 24

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear (R.H. & L.H.)(4-11/32" O.D.)

1шт.

25

A30114

CONE

- bearing, R.H. & L.H. side gear (2-1/4" I.D.)

2шт.

26

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

26

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

27

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5 x 5-1/4 x 1/8")

2шт.

28

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- 3/8 x 3/4" flat hd.

2шт.

29

A39273

OIL SEAL

- oil, bearing carrier (2-1/4 x 3 x 1/2") (Replaces G10689)

2шт.
