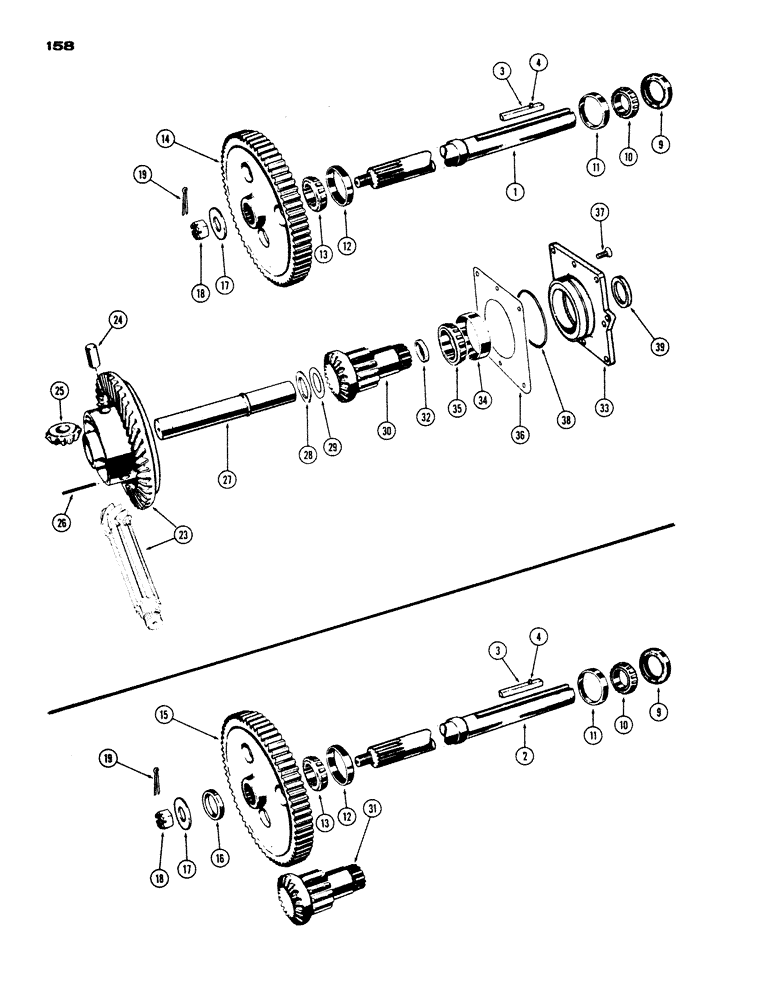

Запчасти Case IH 430 (158) - REAR AXLE AND DIFFERENTIAL, GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

1

A37184

SHAFT - rear axle (38-7/8" long) (Does not require spacer G49616)

1шт.

2

A35172

SHAFT - rear axle (39-5/8" long) (Spacer G49616 must be used w/this shaft)

1шт.

3

A35174

KEY ASSY. - wheel hub to axle, Includes: Ref. 4

2шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

9

G10346

OIL SEAL

- oil, outer, axle shaft (2-3/4 x 4 x 3/4")

2шт.

10

A29975

CUP ASSY.

CONE - outer bearing, axle shaft (2-3/8" I.D.)

2шт.

11

A29974

CUP ASSY.

CUP - outer bearing, axle shaft (4" O.D.)

2шт.

12

G10415

BEARING CUP

CUP - inner bearing axle shaft (3-15/16" O.D.)

2шт.

13

G10414

ROLLER BEARING

CONE - inner bearing, axle shaft (2-17/64" I.D.)

2шт.

14

A37925

GEAR

- final drive (Must be used w/A27929 side gear) (13-3/8" dia.), Start Serial: 8309386

1шт.

15

G30353

GEAR

ASSY. - final drive (Must be used w/G30596 side gear) (13-7/16" dia.), Includes: Ref. 16, Serial Range: -8309386

2шт.

16

G49616

SPACER

- drive gear (2-7/8" O.D. x 3/4")

1шт.

17

G62105

WASHER - take-up, axle

2шт.

18

A30075

WHEEL NUT

- axle (1-1/2" N.F. hex. slotted)

2шт.

19

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

23

A38402

KIT

GEAR SET - ring & countershaft (Matched set) (Replaces A37195) (7 & 43 teeth)

1шт.

24

A39024

SHAFT

- pinion gear (Replaces A37097)

3шт.

25

G15483

GEAR

- pinion

3шт.

26

138-2036

PIN,3/16" x 2", Coiled

3шт.

27

A37186

SHAFT

- cross, differential

1шт.

28

A30539

WASHER

- thrust, cross shaft (.089")

1шт.

28

A39007

WASHER

- thrust, cross shaft (.094")

1шт.

28

A30533

WASHER

- thrust, cross shaft (.099")

1шт.

28

A30045

WASHER

- thrust, cross shaft (.104")

1шт.

28

A30543

WASHER

- thrust, cross shaft (.109")

1шт.

28

A30051

WASHER

- thrust, cross shaft (.119")

1шт.

29

A29388

WASHER

SHIM - thrust, washer (.010")

1шт.

30

A37929

GEAR

ASSY. - side (Must be used w/A37925 drive gear) (3-1/8" spur gear dia.) (incl. Ref. 32), Start Serial: 8309386

2шт.

31

G30596

GEAR

ASSY. - side (Must be used w/G30353 drive gear) (3" spur gear dia.) (incl. Ref. 32), Serial Range: -8309386

2шт.

32

A29902

PLUG

- side gear

1шт.

33

G30492

CARRIER ASSY. - bearing, R.H. & L.H. side gear, Includes: Ref. 34

2шт.

34

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear (4-11/32" O.D.)

1шт.

35

A30114

CONE

- bearing, side gear (2-1/4" I.D.)

2шт.

36

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

36

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

37

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- 3/8 x 3/4" flat hd.

2шт.

38

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier (5 x 5-1/4 x 1/8")

2шт.

39

A39273

OIL SEAL

- oil, bearing carrier (2-1/4 x 3 x 1/2") (Replaces G10689)

2шт.
