Запчасти Case IH 430 (157A) - TRANSMISSION COUNTERSHAFT (06) - POWER TRAIN

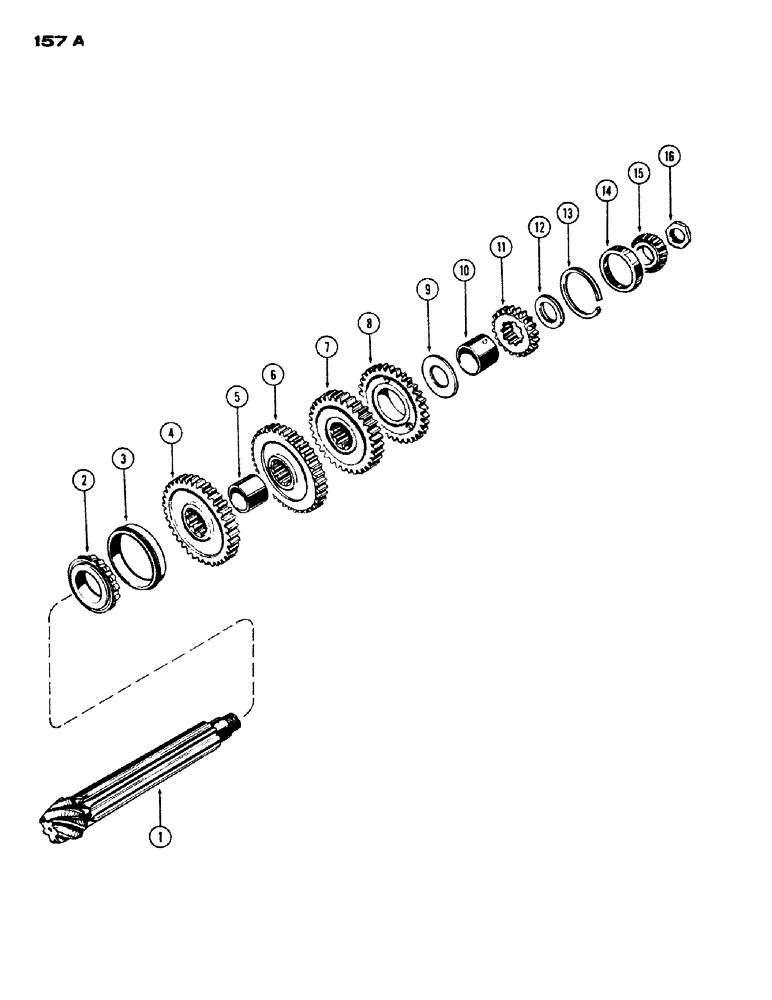

Схема запчастей Case IH 430 - (157A) - TRANSMISSION COUNTERSHAFT (06) - POWER TRAIN
8
15
13
2
3
9
14
12
16
4
11
5
1
10
6
7

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - (Order from figures 152, 160 & 162)

1шт.

2

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear bearing, countershaft (1-5/8" I.D.)

1шт.

3

A30115

CUP

- rear bearing, countershaft (3-15/32" O.D.)

1шт.

4

A38157

SPRING

- 1st, countershaft (47T) (Replaces G10320)

1шт.

5

A36619

BUSHING

SPACER - 1st and 2nd gear (1-5/8" long)

1шт.

6

A37732

GEAR

- 2nd, countershaft (38T)

1шт.

7

A37731

GEAR

- 3rd, countershaft (35T)

1шт.

8

A37730

GEAR

- oil slinger (35T)

1шт.

9

G46070

WASHER

- slinger gear (1-5/8" I.D. x 2-3/8" O.D.)

1шт.

10

G13260

BUSHING

SPACER - 4th gear (1-1/4" long includes rivet)

1шт.

11

G16527

GEAR

- 4th, countershaft (19T)

1шт.

12

G10790

SPACER

- gear (.164")

1шт.

12

G16530

SPACER

- gear (.169")

1шт.

12

G10791

SPACER

- gear (.174")

1шт.

12

G16531

SPACER

- gear (.179")

1шт.

12

G10792

SPACER

- gear (.184")

1шт.

12

G16532

SPACER

- gear (.189")

1шт.

12

G10793

SPACER

- gear (.194")

1шт.

12

G16533

SPACER

- gear (.199")

1шт.

12

G10794

SPACER

- gear (.204")

1шт.

12

G16534

X

SPACER - gear (.209")

1шт.

12

G10795

SPACER

- gear (.214")

1шт.

12

G16535

SPACER

- gear (.219")

1шт.

12

G16510

SPACER

- gear (.224")

1шт.

12

G16536

SPACER

- gear (.229")

1шт.

12

G16511

SPACER

- gear (.234")

1шт.

12

G16537

X

SPACER - gear (.239")

1шт.

12

G16512

SPACER

- gear (.244")

1шт.

13

A29971

RING

- snap, front bearing

1шт.

14

29977

CUP - front bearing, countershaft (2-23/32" O.D.)

1шт.

15

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - front bearing, countershaft (1-3/16" I.D.)

1шт.

16

G49010

LOCK NUT

- adjusting, countershaft

1шт.

Выбрано товаров: 32
