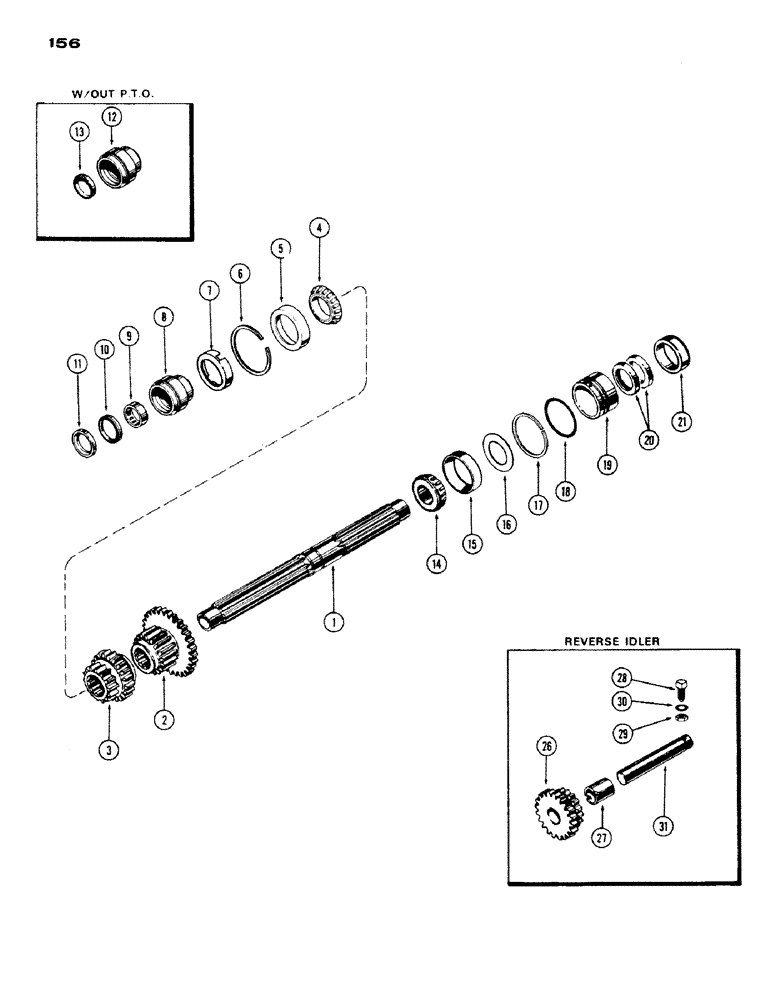

Запчасти Case IH 430 (156) - TRANSMISSION MAIN SHAFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
G10314
SHAFT - main (17-5/32") w/4 speed
1шт.
1
G13462
SHAFT
- main (14-19/32") w/8 speed & shuttle
1шт.
2
A38917
GEAR
- 3rd (28T) and 4th (44T) (Replaces A37728)
1шт.
3
A38630
GEAR
- 1st (16T) and 2nd (25T) (Replaces A37729 & A38156)
1шт.
4
A29976
ROLLER BEARING
CONE - rear bearing, main shaft (1-3/8" I.D.)
1шт.
5
A29977
BEARING CUP
CUP - rear bearing, main shaft (2-23/32" O.D.)
1шт.
6
A29971
RING
- snap, rear bearing
1шт.
7
G10616
CUP
- oiling
1шт.
8
A37604
HOUSING
ASSY. - rear oil seal (w/P.T.O.), Includes: Ref. 9 - 11
1шт.
9
A37606
NEEDLE BEARING,1.25" ID x 1.5005" OD x 0.5"
BEARING - needle
1шт.
10
A37605
OIL SEAL
- oil, mainshaft (1-1/4 x 1-5/8 x 3/16")
1шт.
11
A37607
COLLAR CLAMP
COLLAR - oil seal housing
1шт.
12
A37602
HOUSING
ASSY. - rear, main shaft (w/no P.T.O.), Includes: Ref. 13
1шт.
14
G10424
CONE
- front bearing, main shaft (1-9/16" I.D.)
1шт.
14
G10424
CONE
- front bearing, main shaft (1-9/16" I.D.)
1шт.
15
G10425
CUP
- front bearing, main shaft (2-7/8" O.D.)
1шт.
16
G10340
SHIM,.007" Thk
Bearing adjusting .007" Thk
1шт.
16
G10341
SHIM,.005" Thk
Bearing adjusting .005" Thk
1шт.
17
A30092
RING
- snap, oil seal housing (w/8 speed)
1шт.
18
G10389
O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro
"O" RING - oil seal housing (w/8 speed) (2-5/8 x 2-7/8 x 1/8")
1шт.
19
G16605
HOUSING
- front oil seal (w/8 speed)
1шт.
20
G10422
OIL SEAL
- oil, main shaft front (3-1/2 x 4-1/4 x 1/4")
2шт.
21
G10311
COLLAR
- pilot (w/4 speed)
1шт.
26
A37803
GEAR ASSY. - reverse idler, shaft, Includes: Ref. 27
1шт.
27
A30196
BUSHING
- gear, reverse idler shaft
1шт.
28
181-249
SCREW - set, 3/8 x 1-1/2" N.C. dog point, reverse idler shaft
1шт.
29
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex., reverse idler shaft
1шт.
30
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, , Reverse idler shaft Int Tooth, 3/8"
1шт.
31
G10328
SHAFT
- idler, reverse
1шт.
Выбрано товаров: 30
