Запчасти Case IH 430 (154) - TRANSMISSION CASE AND AXLE HOUSING, GENERAL PURPOSE TRACTOR (06) - POWER TRAIN

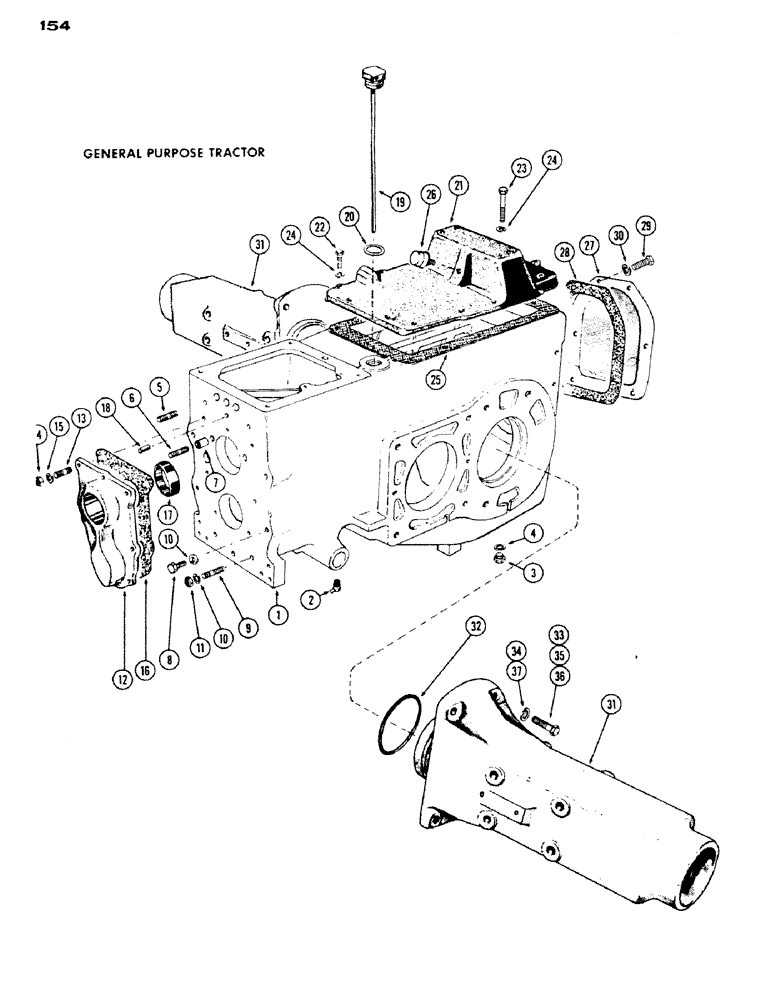

Схема запчастей Case IH 430 - (154) - TRANSMISSION CASE AND AXLE HOUSING, GENERAL PURPOSE TRACTOR (06) - POWER TRAIN
22
21
8
6
12
20
34
19
3
2
36
32
25
4
24
16
15
23
37
26
35
28
17
10
13
11
10
5
31
14
1
33
29
27
24
18
9
31
30

Артикул

Название

Примечание

Количество

1

A37800

CASE - transmission

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 45 degrees

2шт.

3

A14280

PLUG

- drain

1шт.

4

A58608

GASKET

- drain plug (Replaces A27927)

1шт.

5

A37992

STUD

- torque tube, upper R.H. (1/2" N.C./N.F. x 2-3/8")

1шт.

6

A37993

X

STUD - torque tube, upper L.H. (1/2" N.C./N.F. x 2-7/16")

1шт.

7

A50011

SLEEVE

- stud, upper L.H.

1шт.

8

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Torque tube Hex, 1/2"-13 x 2", G5

4шт.

9

A29336

STUD

- torque tube, lower (1/2" N.C./N.F. x 2-1/2")

2шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-118

NUT,1/2"-20, G5

- 1/2" N. F. hex.

4шт.

12

G1027

COVER

- front (w/4 speed trans. only)

1шт.

13

G10710

STUD

- front cover or gear box (3/8" N.F. x 1-3/4")

7шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N. F. hex.

7шт.

15

92-6

LOCK WASHER,3/8"

7шт.

16

G46841

GASKET

- front cover or gear box

1шт.

17

G10311

COLLAR

- pilot

1шт.

18

A29540

PIN

DOWEL - torque tube to trans. case

1шт.

19

A38306

DIPSTICK

- oil level (Replaces G10348)

1шт.

20

A38660

GASKET

- dipstick (Replaces G10351)

1шт.

21

G1098

COVER - top (w/no hitch)

1шт.

22

13-228

BOLT - 3/8 x 1-1/4" N. C. hex. hd. (Gr. 8)

8шт.

23

113-236

X

BOLT - 3/8 x 2" N. C. hex. hd. (Gr. 8)

4шт.

24

92-6

LOCK WASHER,3/8"

12шт.

25

G10462

GASKET

- top cover

1шт.

26

A27173

BREATHER

- oil

1шт.

27

A36885

COVER - rear (w/no P. T. O.)

1шт.

28

G10447

GASKET

- rear cover

1шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

30

92-6

LOCK WASHER,3/8"

6шт.

31

A35013

HOUSING - axle (includes bearings cups)

2шт.

32

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - axle housing (5 x 5-1/4 x 1/8")

2шт.

33

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(w/no hitch) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

10шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (w/no hitch) 5/8"

10шт.

35

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

(w/hitch) Hex, 5/8"-11 x 1 3/4", G5, Full Thd

6шт.

36

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

(w/hitch) Hex, 5/8"-11 x 2 1/4", G5

2шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

Выбрано товаров: 37
