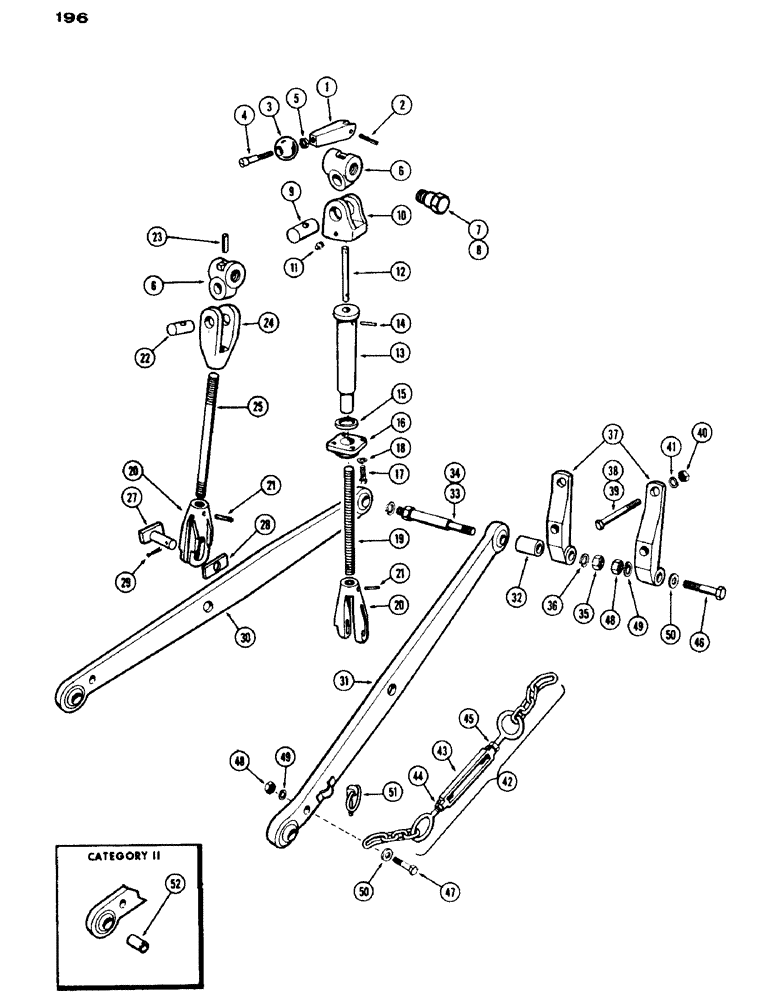

Запчасти Case IH 430 (196) - DRAFT ARMS AND LIFT LINKS, DRAFT-O-MATIC (06) - POWER TRAIN

1

A35464

HANDLE

- adjusting screw

1шт.

2

138-2008

PIN,1/4" x 1 1/8", Coiled

1шт.

3

A35465

KNOB

- adjusting handle

1шт.

4

64-632

SCREW

BOLT - 3/8" x 2" N.C. fillister hd.

1шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. (thin)

1шт.

6

A37092

BLOCK

- swivel, lift link (w/R.H. and L.H. thrd.)

2шт.

6

A35456

X

BLOCK - swivel, lift link (w/2-R.H. threads)

2шт.

7

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

PIN - block to lift arm (L.H. thrd.)

2шт.

8

A35457

SCREW

PIN - block to lift arm (R.H. thrd.)

2шт.

9

A35459

PIN

- pivot, R.H. lift link

1шт.

10

A35458

HOUSING - pivot, R.H. lift link

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

12

A35463

SHAFT

- adjusting handle

1шт.

13

A35460

TUBE

- R. H. lift link

1шт.

14

138-2008

PIN,1/4" x 1 1/8", Coiled

1шт.

15

NLS

NO LONGER SERVICED

- thrust, adjusting screw

1шт.

16

A35467

PLATE

- thrust, adjusting screw

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- 5/8 x 1" N. C. hex. hd.

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

A36134

SCREW

- adj., R. H. link (Gen. Purpose) 11-3/8" LG

1шт.

19

A35469

SCREW,3/4" - 10 x 8 13/16"

- adj., R. H. link (Standard and LCK)

1шт.

20

A35470

YOKE

- lower, lift link

2шт.

21

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

22

A35475

PIN - pivot, L. H. lift link

1шт.

23

138-201

LOCK PIN,1/2" x 1 1/4", Slotted

PIN, 1/2" x 1 1/4", Slotted

1шт.

24

A35474

YOKE - upper, L. H. lift link

1шт.

25

A35477

ROD - L. H. lift link (Standard and LCK)

1шт.

25

A36135

ROD

- L. H. lift link (Gen. Purpose)

1шт.

27

A36883

PIN

- pivot, link to draft arm

2шт.

28

A35472

PLATE

LOCK - pivot

2шт.

29

132-148

COTTER PIN,1/4" x 1 1/4"

PIN - split (Cotter), 1/4" x 1 1/4"

2шт.

30

A36769

DRAFT ARM - L.H. (Cat. I)

1шт.

30

A38137

DRAFT ARM - L.H. (Cat II)

1шт.

31

A36768

DRAFT ARM - R.H. (Cat. I)

1шт.

31

A38136

DRAFT ARM - R.H. (Cat. II)

1шт.

32

A36386

SPACER

- inner (Standard Trac.) (order A38214)

2шт.

33

A36388

STUD

- draft arm pivot (Standard) (order A38215)

2шт.

34

A36387

STUD

- draft arm pivot (Gen. Purpose) (order A38216)

2шт.

35

25-1010

NUT,5/8"-11, G5

2шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

37

G16911

BRACKET

- support, draft arm & sway chain

4шт.

38

16-10136

BOLT

- 5/8 x 8-1/2" N.F. hex. hd.

4шт.

39

14-10128

BOLT,Hex, 5/8" - 18 x 8", Gr 5

- 5/8" x 8" N.F. hex. hd.

4шт.

40

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

8шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

42

A36767

CHAIN (AG)

CHAIN ASSY. - sway, Includes: Ref. 43 - 45

2шт.

43

A38201

TURNBUCKLE

- chain adjustable

1шт.

44

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex. (R.H. thrd.)

1шт.

45

129-347

JAM NUT,Jam, 5/8"-11, G5, LH

1шт.

46

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

47

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

48

25-1010

NUT,5/8"-11, G5

4шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

50

A21818

WASHER - plain

4шт.

51

A33509

PIN,11.18mm OD

KLIK PIN

2шт.

52

A33498

ADAPTER

(Cat. II to Cat. I)

2шт.
