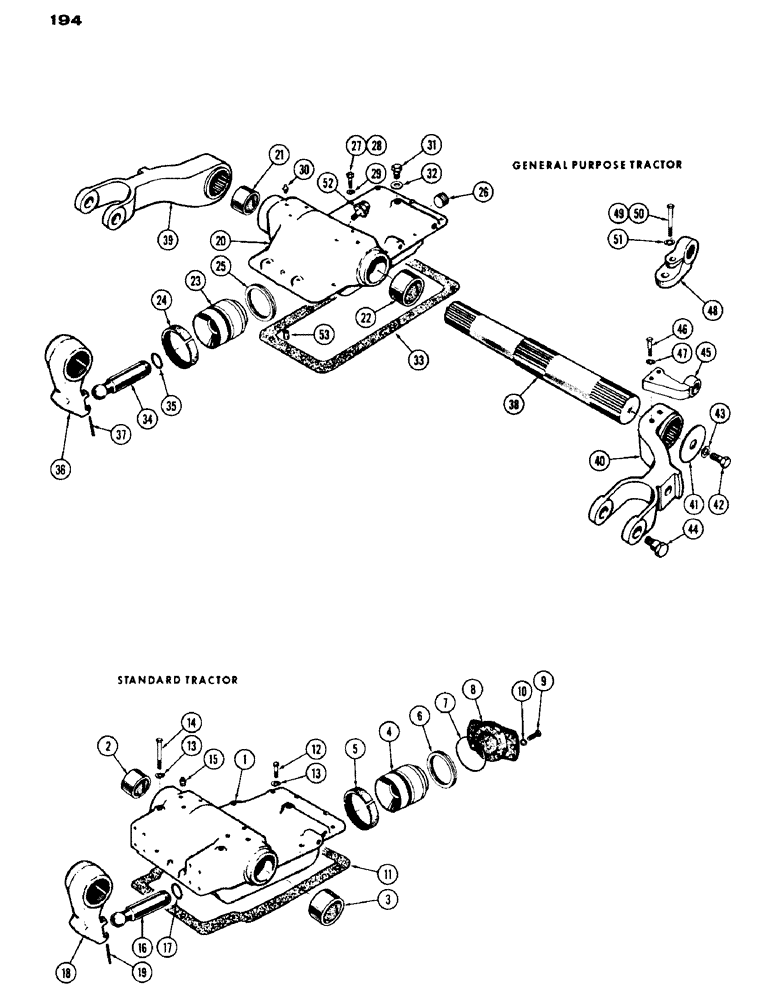

Запчасти Case IH 430 (194) - ROCKSHAFT AND HOUSING, DRAFT-O-MATIC (06) - POWER TRAIN

1

A36828

HOUSING

ASSY. - rockshaft (Standard), Includes: Ref. 2 - 10

1шт.

2

G49663

BUSHING

- L. F., rockshaft

2шт.

3

G49662

BUSHING

- R. H., rockshaft

2шт.

4

A36438

PISTON

ASSY., Includes: Ref. 5 and 6

1шт.

5

A36441

SEAL ASSY.

RING - wear

1шт.

6

A36442

SEAL

RING - seal

1шт.

7

A36405

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

"O" RING - cylinder cap

1шт.

8

G16524

CAP - cylinder

1шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

10

92-8

LOCK WASHER,1/2"

6шт.

11

G10941

GASKET

- housing to trans. (Standard)

1шт.

12

113-228

X

BOLT - 3/8" x 1-1/4" N.C. hex. (Gr. 8)

6шт.

12

113-236

X

BOLT - 3/8" x 2" N.C. hex. (Gr. 8)

2шт.

13

92-6

LOCK WASHER,3/8"

12шт.

14

113-237

X

BOLT - 3/8" x 4" N.C. hex. (Gr. 8)

4шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

16

G30527

ROD

- rocker arm, Includes: Ref. 17

1шт.

17

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING

1шт.

18

G10940

ARM - rocker, piston (Standard)

1шт.

19

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

20

A36801

HOUSING ASSY. - rockshaft (Gen. Purpose), Includes: Ref. 21 - 26

1шт.

21

G49663

BUSHING

- L. H., rockshaft

2шт.

22

G49662

BUSHING

- R. H., rockshaft

2шт.

23

A36438

PISTON

ASSY., Includes: Ref. 24 and 25

1шт.

24

A36441

SEAL ASSY.

RING - wear

1шт.

25

A36442

SEAL

RING - seal

1шт.

26

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - 1" socket hd.

1шт.

27

113-246

BOLT - 3/8 x 1-3/4" N. C. hex. hd. (Gr. 8)

2шт.

27

113-245

X

BOLT - 3/8" x 1-1/2" N. C. hex. hd. (Gr. 8)

2шт.

28

113-228

X

BOLT - 3/8" x 1-1/4" N. C. hex. hd. (Gr. 8)

9шт.

29

92-6

LOCK WASHER,3/8"

11шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

2шт.

31

G15456

PLUG

- oil passage

1шт.

32

A30582

GASKET

- plug

1шт.

33

G10462

GASKET

- housing to trans. (Gen. Purpose)

1шт.

34

G30527

ROD

- rocker arm, Includes: Ref. 35

1шт.

35

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING

1шт.

36

G10461

ARM - rocker, piston (Gen. Purpose)

1шт.

37

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

38

G10460

ROCKSHAFT

- lift arm

1шт.

39

A35455

ARM - lift, L. H.

2шт.

40

A35454

ARM - lift, R. H.

1шт.

41

A29186

WASHER

- retaining, lift arm

2шт.

42

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

A35457

SCREW

PIN - arm to lift link (R. H. thread)

2шт.

44

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

PIN - arm to lift link (L. H. thrd.)

2шт.

45

A35491

BRACKET

- quadrant link (Standard)

1шт.

46

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

47

92-6

LOCK WASHER,3/8"

2шт.

48

A35509

BRACKET - quandrant link (Gen. Purpose)

1шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

50

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N. C. hex. hd.

1шт.

51

92-6

LOCK WASHER,3/8"

2шт.

52

A27173

BREATHER

- oil

1шт.

53

138-200

LOCK PIN,1/2" x 1", Slotted

PIN, , housing to trans. 1/2" x 1", Slotted

1шт.
