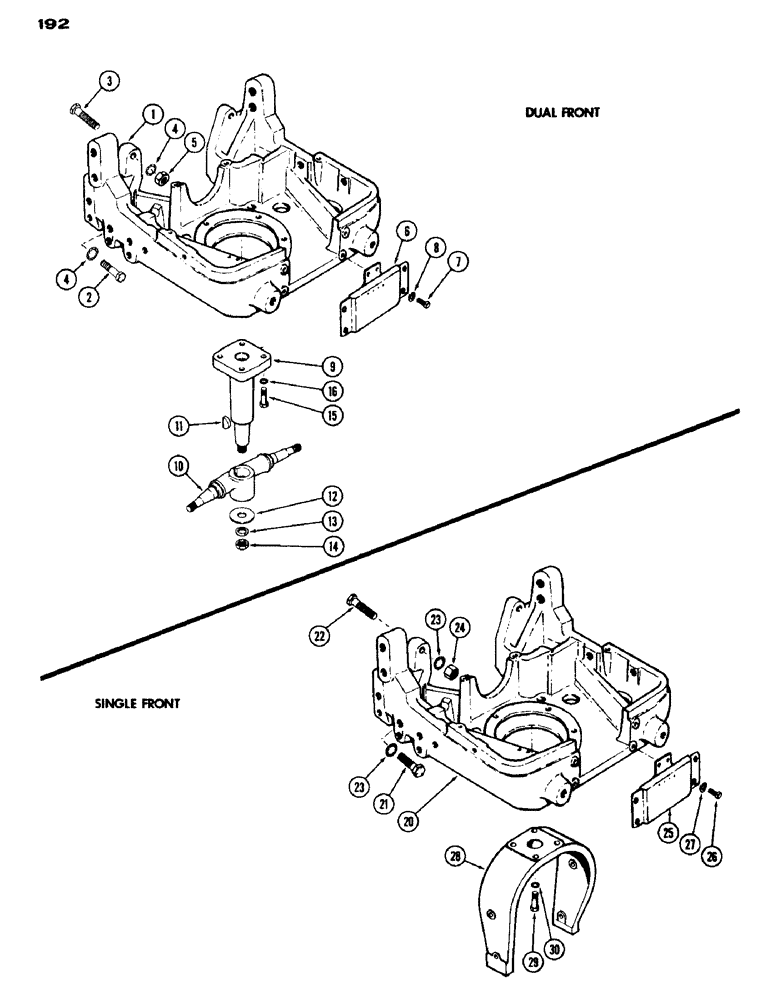

Запчасти Case IH 430 (192) - DUAL FRONT WHEEL SUPPORT, SINGLE FRONT WHEEL SUPPORT (06) - POWER TRAIN

1

G1414

SUPPORT - front axle & radiator

1шт.

2

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Support lower Hex, 5/8"-11 x 2 1/4", G5

2шт.

3

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- support, upper (5/8 x 3" N.F. hex.)

2шт.

4

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- (5/8" N.C. hex.)

2шт.

6

A35044

COVER - front support

1шт.

7

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

G15963

SHAFT - steering, front axle

1шт.

10

G10812

SPINDLE - front axle

1шт.

11

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Spindle #G, 3/8" x 1 1/2"

1шт.

12

A30052

WASHER

- spindle take-up

1шт.

13

92-16

LOCK WASHER,1"

WASHER, LOCK, , Includes: Ref. 14 1"

1шт.

14

25-1516

NUT,Jam, 1"-14, G5

- (1" N. F. half hex.)

1шт.

15

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Shaft to gear Hex, 5/8"-18 x 2", G5

4шт.

16

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

G1414

SUPPORT - front axle & radiator, single wheel

1шт.

21

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Support lower, single front wheel Hex, 5/8"-11 x 2 1/4", G5

2шт.

22

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- support, upper (5/8" x 3" N.F. hex.), single front wheel

2шт.

23

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Single front wheel support Int Tooth, 5/8"

4шт.

24

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.), single front wheel support

2шт.

25

A35044

COVER - front support, single wheel

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Cover, single front wheel support Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Single front wheel support 3/8"

4шт.

28

A26349

FORK - front axle, single wheel support

1шт.

29

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Fork to str. shaft, single front wheel support Hex, 5/8"-18 x 2", G5

4шт.

30

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER - (5/8" int. skpf.), single front wheel support

10шт.
