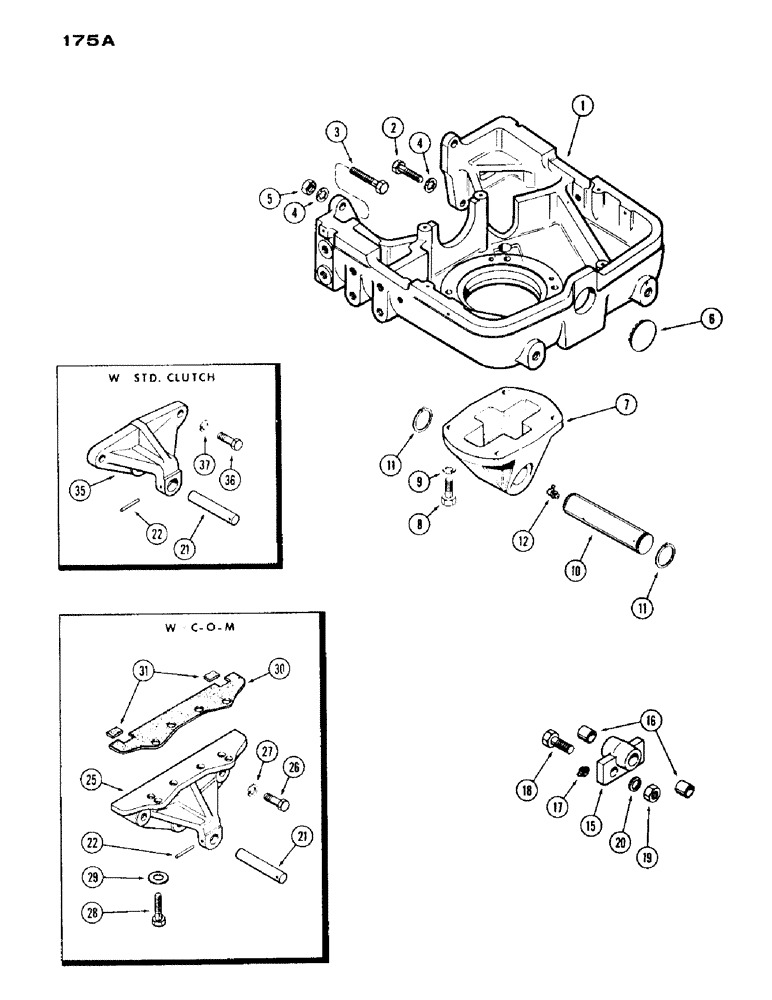

Запчасти Case IH 430 (175A) - ADJUSTABLE FRONT AXLE SUPPORTS (06) - POWER TRAIN

1

A36716

SUPPORT - adj. front axle & radiator

1шт.

2

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Lower, support Hex, 5/8"-11 x 2 1/4", G5

2шт.

3

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

- upper, support (5/8" x 3" N.C. hex.)

2шт.

4

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

5

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.)

2шт.

6

205-69

PLUG - button, support (2-1/4" dia.)

1шт.

7

A36621

PEDESTAL - front pivot

1шт.

8

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Pedestal Hex, 5/8"-11 x 2", G5

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

37066

CHAIN

PIN - front pivot, axle (was A86622)

1шт.

11

A27085

RING

- snap, pivot pin

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" P.T. str.

1шт.

15

A36574

X

PIVOT ASSY - rear, axle (order A38199), Includes: Ref. 16

1шт.

16

A29944

BUSHING

- pivot (55/64 x 1 x 1")

2шт.

17

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" P.T. 67-1/2 deg.

1шт.

18

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Pivot Hex, 5/8"-11 x 2 1/4", G5

2шт.

19

25-1010

NUT,5/8"-11, G5

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

A29725

PIN

- rear pivot, axle

1шт.

22

138-132

LOCK PIN,1/4" x 7/8", Slotted

ROLL PIN - 1/4" x 1/2"

1шт.

25

A36652

BRACKET - rear pivot (w/Case-O-Matic)

1шт.

26

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

195-400

WASHER

- sealing, 5/16" bolt

2шт.

30

A36653

GASKET

- bracket, rear pivot (w/C-O-M)

1шт.

31

A11604

OIL PAN GASKET SET

- bracket, rear pivot (w/C-O-M)

2шт.

35

A36651

BRACKET - rear pivot, axle (w/std. clutch)

1шт.

36

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
