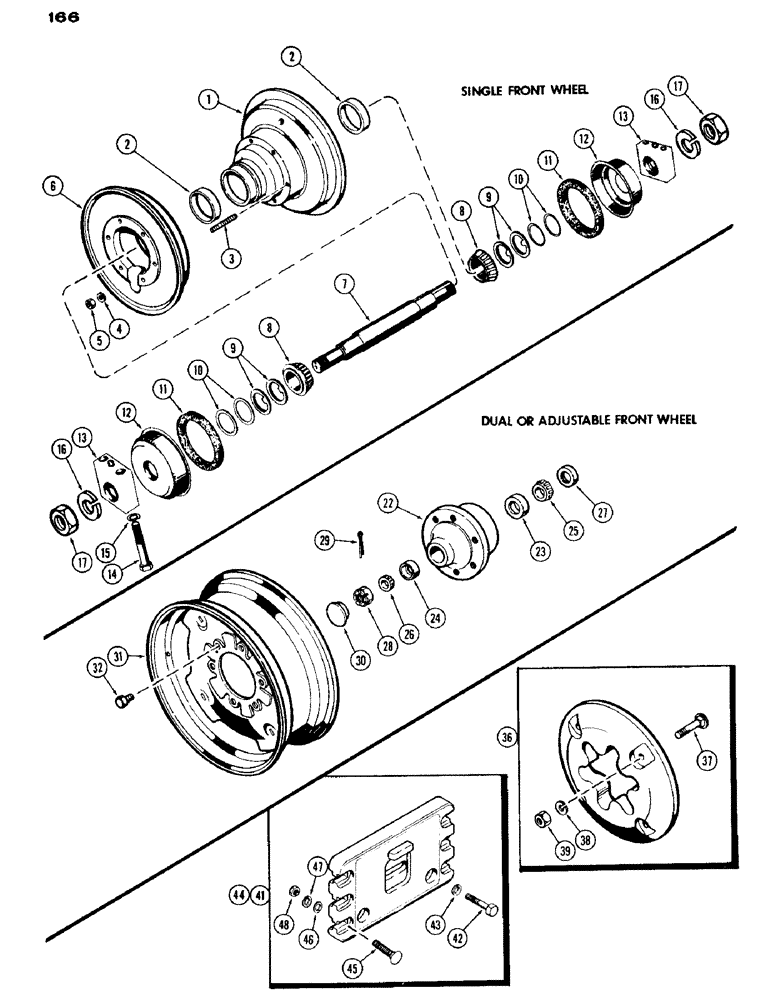

Запчасти Case IH 430 (166) - FRONT WHEELS, SINGLE FRONT WHEELS (06) - POWER TRAIN

1

A28724

DISC ASSY. - wheel half (takes 9.00 x 10 tire), Includes: Ref. 2 and 3

1шт.

2

A27631

CUP

- bearing

2шт.

3

A27704

STUD - flange (1/2" N.C./N.F. x 4")

6шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, disc (Not illustrated)

1шт.

4

92-8

LOCK WASHER,1/2"

6шт.

5

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.)

6шт.

6

A26245

FLANGE - wheel half (takes 9.00 x 10 tire)

1шт.

7

A28221

SHAFT - front axle

1шт.

8

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing

2шт.

9

A28222

WASHER - axle shaft

4шт.

10

A28223

SHIM,.003" Thk

Axle shaft .003" Thk

1шт.

10

A28224

SHIM,.005" Thk

Axle shaft .005" Thk

1шт.

11

A27632

FELT

SEAL - dust (3-1/2 x 4-3/8 x 3/8" felt)

2шт.

12

A28225

RETAINER

- dust seal

2шт.

13

A28723

BLOCK ASSY. - w/pin

2шт.

14

14-952

BOLT,Hex, 9/16" - 18 x 3-1/4", Gr 5

- block (9/16 x 3-1/4" N.F. hex.)

4шт.

15

92-9

BEARING WASHER,9/16"

4шт.

16

92-18

LOCK WASHER,1 1/8"

1 1/8"

2шт.

17

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- (1-1/8" N. F. half hex.)

2шт.

22

G13065

X

HUB ASSY. - front wheel, Includes: Ref. 23 and 24, dual or adjustable

2шт.

23

G57451

BEARING, CUP

CUP - bearing, inner, dual or adjustable front wheel

1шт.

24

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer, dual or adjustable front wheel

1шт.

25

G57452

ROLLER BEARING

CONE - bearing, inner, dual or adjustable front wheel

2шт.

26

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer, dual or adjustable front wheel

2шт.

27

G13053

OIL SEAL

- oil, inner (1-15/16 x 2-9/16 x 7/16"), dual or adjustable front wheel

1шт.

28

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - spindle (3/4" N. F., sltd.), dual or adjustable front wheel

2шт.

29

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Dual or adjustable front wheel 1/8" x 1 1/4"

2шт.

30

B13280

HUB CAP

CAP - hub, dual or adjustable front wheel

2шт.

31

A36738

RIM

- (takes 6.00 x 14 tire), dual or adjustable front wheel

2шт.

31

A38938

RIM

- (takes 5.50 x 16 or 6.00 x 16 tire), dual or adjustable front wheel

2шт.

31

A37054

WHEEL

RIM - (takes 7.60 x 15 tire), dual or adjustable front wheel

2шт.

32

A30064

BOLT

- rim to hub, dual or adjustable front wheel

12шт.

36

G12050

WEIGHT ATTACHMENT - (set of 2) (mach. item), Includes: Ref. 37 - 39, front wheel

1шт.

37

11-848

BOLT - (1/2" x 3" N.C. carr.), front wheel weights

8шт.

38

92-8

LOCK WASHER,1/2"

front wheel weights 1/2"

8шт.

39

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.), front wheel weights

8шт.

41

A36980

WEIGHT ATT. - first (mach. item), Includes: Ref. 42 and 43, front wheel

1шт.

42

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Front wheel weights Hex, 3/4"-10 x 2 1/2", G5

2шт.

43

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front wheel weights 3/4"

2шт.

44

A33260

WEIGHT ATT. - added (100 lbs.) (mach. item), Includes: Ref. 45 - 48, front wheel

1шт.

45

B90584

BOLT

- weight to weight (3/4 x 4" N.C. carr.), front wheel

2шт.

46

17438

WASHER

- (25/32 x 1-3/4 x 7/32"), front wheel weights

2шт.

47

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front wheel weights 3/4"

2шт.

48

25-1012

NUT,3/4"-10, G5

Front wheel weights 3/4"-10, G5

2шт.
