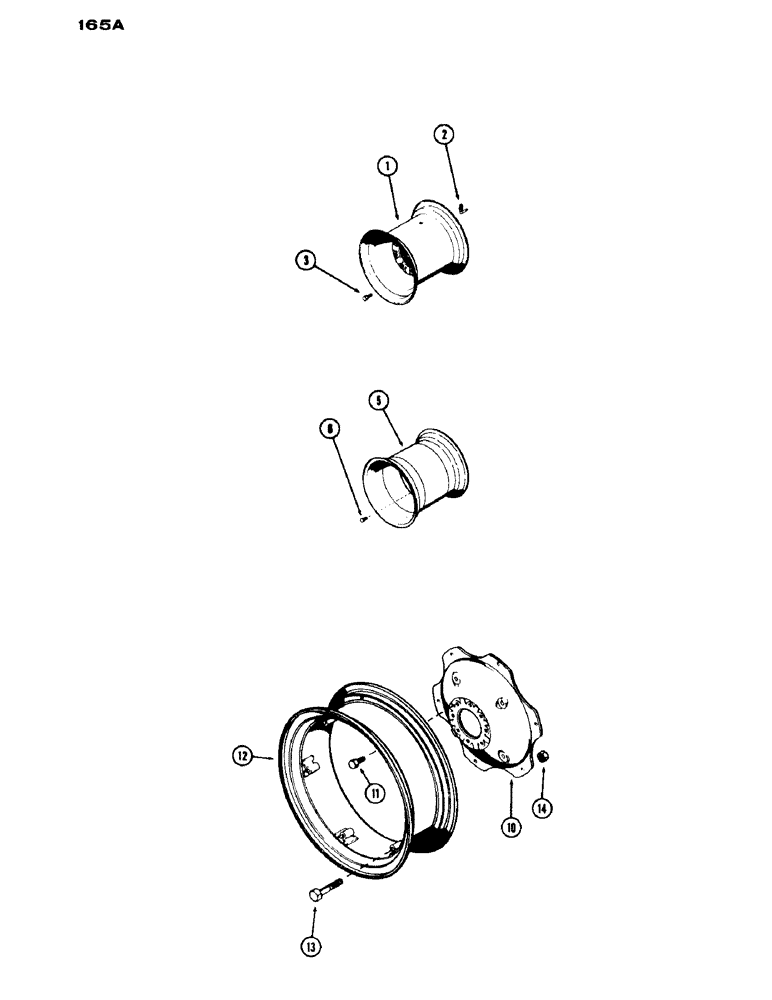

Запчасти Case IH 430 (165A) - L.C.K. REAR WHEELS (06) - POWER TRAIN

1

A37108

WHEEL

- integral (38 x 20-5/16 tubeless tire)

2шт.

2

A37110

VALVE - tubeless tire (includes core and cap)

2шт.

3

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 N.F. x 1-5/32" spec.)

16шт.

5

A36744

RIM

WHEEL - integral (Takes 18.4 x 16 Tire)

2шт.

6

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 x 1-5/32" N.F., spec. hd.)

16шт.

10

G46240

DISC

- wheel center (24" demountable rim)

2шт.

11

B18264

WHEEL BOLT

BOLT - disc to axle (9/16 x 1-5/32" N.F., spec. hd.)

16шт.

12

A35375

RIM - demountable (8.3 x 24 tire)

2шт.

13

G10701

BOLT

- rim to disc (5/8 x 2-11/16" N.F., spec. hd.)

12шт.

14

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex)

12шт.
