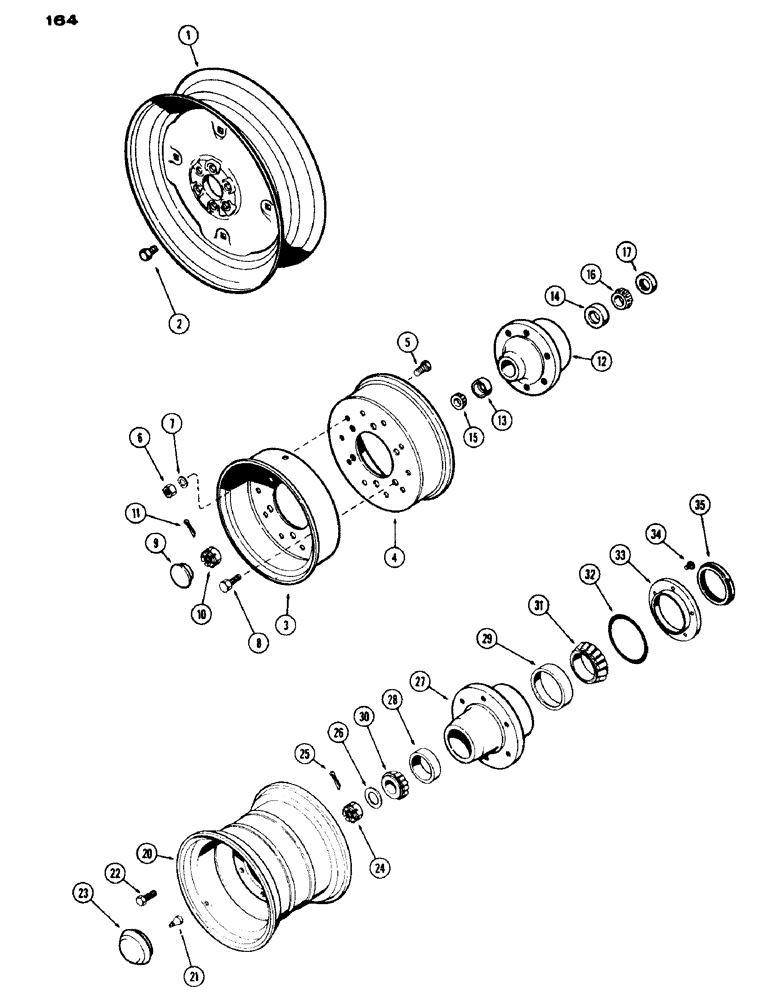

Запчасти Case IH 430 (164) - L.C.K. FRONT WHEELS (06) - POWER TRAIN

1

A36743

WHEEL

- integral (5.90 x 15 tire)

2шт.

2

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

3

A36740

WHEEL

- outer half w/valve hole (7.50 x 10 tire)

2шт.

4

A36741

WHEEL

- inner half (7.50 x 10 tire)

2шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Wheel halves Hex, 1/2"-13 x 1", G5, Full Thd

20шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

8

A30064

BOLT

- wheel, Serial Range: halves-hub

12шт.

9

B13280

HUB CAP

CAP - hub

2шт.

10

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - spindle (3/4" N. F. sltd.)

2шт.

11

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

12

G13065

X

HUB ASSY. - front wheel (10 or 20" tire), Includes: Ref. 13 and 14

2шт.

13

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

14

G57451

BEARING, CUP

CUP - bearing, inner

2шт.

15

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

2шт.

16

G57452

ROLLER BEARING

CONE - bearing, inner

2шт.

17

G13053

OIL SEAL

- oil

2шт.

20

A37107

WHEEL - integral (26 x 12 tubeless)

2шт.

21

A38261

VALVE

- tubeless tire (includes cap & core)

2шт.

22

A30064

BOLT

-, Serial Range: wheel-hub

12шт.

23

A29425

CAP

- hub

2шт.

24

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hub to spindle (1-1/8" N.F. slotted)

2шт.

25

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

26

A26789

BEARING WASHER

WASHER - hub nut

2шт.

27

G14042

X

HUB ASSY. - (12" tubeless tire), Includes: Ref. 28 and 29

2шт.

28

A27631

CUP

- outer bearing

1шт.

29

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

1шт.

30

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

31

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

32

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - oil seal retainer

2шт.

33

A27140

RETAINER

- hub oil seal

2шт.

34

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4 x 5/8" N.C. flat hd.

10шт.

35

A27139

SEAL

- oil, wheel hub

2шт.
