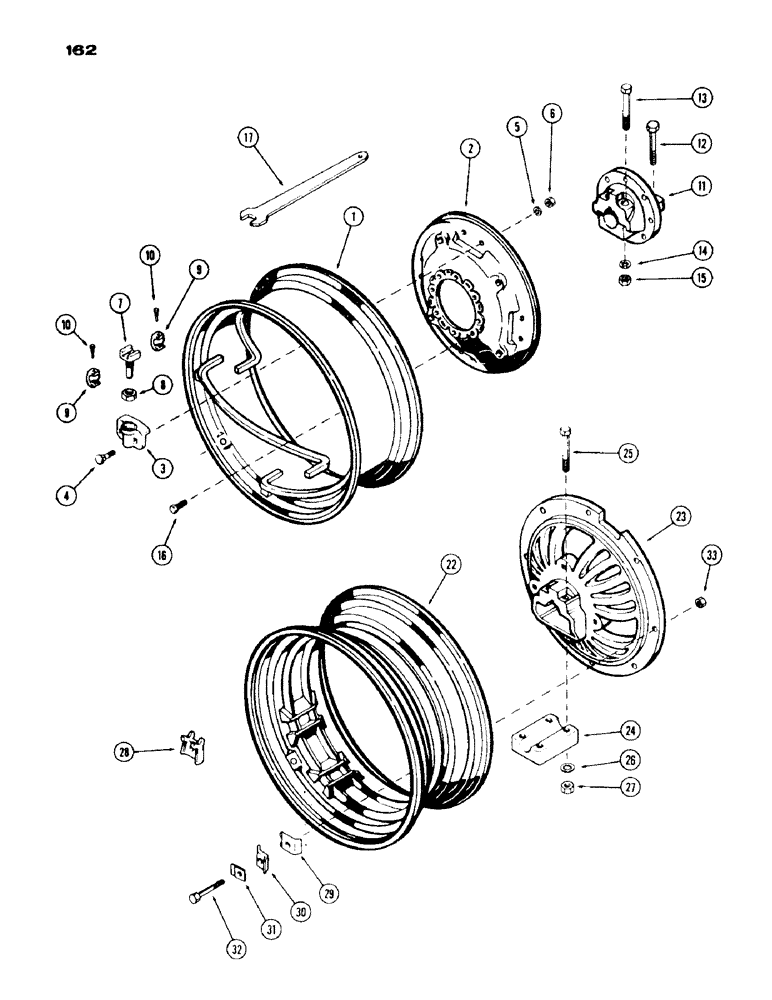

Запчасти Case IH 430 (162) - POWER ADJUSTED REAR WHEELS, CAST REAR WHEELS (06) - POWER TRAIN

G12074

X

WHEEL ASSY. - rear, Includes: Ref. 1 - 10

2шт.

1

G13266

RIM - (Takes 12.4/11 x 28 tire)

1шт.

2

G15440

WHEEL

- center disc

1шт.

3

G15443

BODY,2" L

- jack screw

4шт.

4

111-600

BOLT - jack body (5/8 x 1-1/2" N.C. carr.)

8шт.

5

192-25

LOCK WASHER,5/8"

WASHER, LOCK, , Jack body bolt 5/8"

8шт.

6

129-107

NUT,5/8"-11, G5

Jack body bolt 5/8"-11, G5

8шт.

7

G15444

JACK SCREW,7/8" - 14 x 2.85"

- jack

4шт.

8

G15445

NUT

- lock, jack screw

4шт.

9

A9406

STOP

BODY - wheel stop

2шт.

10

A9440

STOP

SCREW - lock, stop body

2шт.

11

G1087

X

HUB - rear wheel

2шт.

12

G10841

BOLT

BOLT - hub, inner (3/4 x 4-1/2" N.F. hex.)

4шт.

13

G10840

BOLT

- hub, outer (3/4 x 3-3/4" N.F. hex.)

4шт.

14

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

8шт.

15

G10842

NUT

- hub bolts (3/4" N. F. Hex.)

8шт.

16

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 x 1-5/32" N.F. spec., hd.)

16шт.

17

G15024

WRENCH - screw jack

1шт.

22

G45104

RIM (Takes 13.6 x 28 or 14.9/13 x 28 tire), cast rear wheels

2шт.

G14322

WHEEL ASSY. - center disc., Includes: Ref. 23 - 27, cast rear

2шт.

23

NSS

NOT SOLD SEPARAT

WHEEL (Order G14322), cast rear

1шт.

24

G1265

CLAMP - hub half, cast rear wheels

1шт.

25

G49047

BOLT

- hub clamp (3/4 x 5" N.F. hex.), cast rear wheels

4шт.

26

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , Cast rear wheels Int Tooth, 3/4"

4шт.

27

G10842

NUT

- (3/4" N. F. hex.), cast rear wheels

4шт.

28

A26347

CLAMP

- rim drive, cast rear wheels

4шт.

29

A28219

CLAMP

- rim mounting (female), cast rear wheels

12шт.

30

A28220

CLAMP

- rim mounting (male), cast rear wheels

12шт.

31

A28733

LUG

- locking, rim clamp bolt, cast rear wheels

16шт.

32

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Rim clamps, cast rear wheels Hex, 5/8"-11 x 3", G5

16шт.

33

A27183

NUT

- rim clamp bolts (5/8" N.C. hex.), cast rear wheels

16шт.
