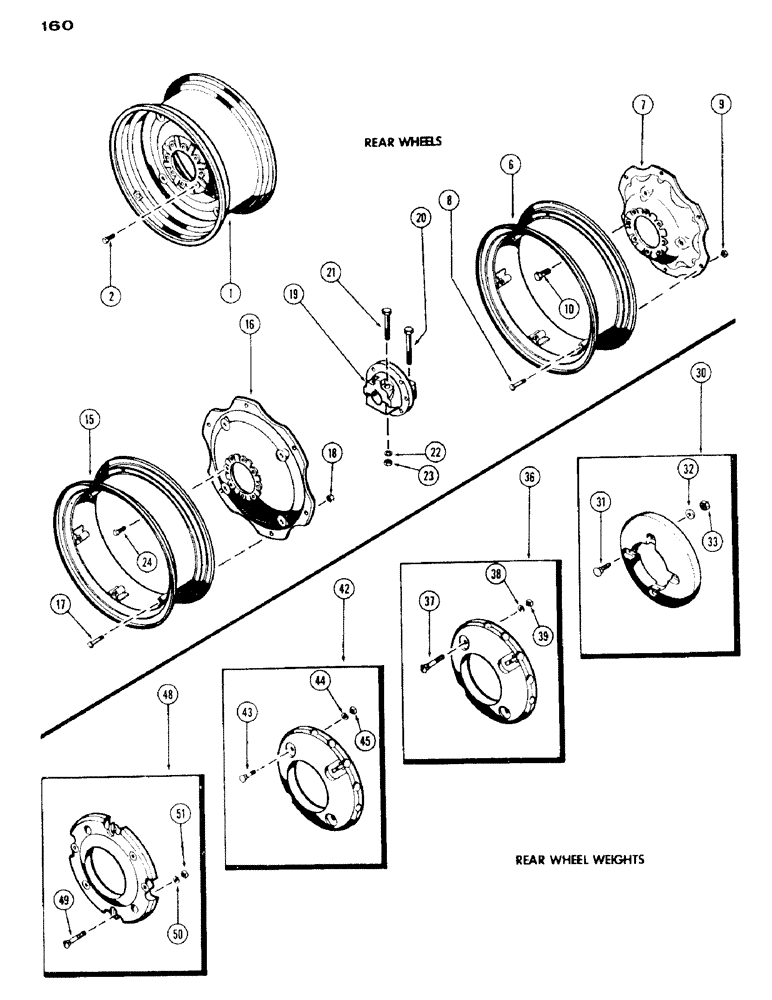

Запчасти Case IH 430 (160) - REAR WHEELS, INTEGRAL TYPE, DEMOUNTABLE TYPE, REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

A35906

WHEEL

- integral (takes 14.9/13 x 24 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - rim to axle (9/16 x 1-5/32" N.F. spec. hd.)

16шт.

A37091

RIM

(16.9 x 24 tire), Demountable type

1шт.

6

G45205

RIM

(Takes 12.4/11 x 24 or 13.6/12 x 24 tire), Demountable type

2шт.

6

G45204

RIM

- (Takes 14.9/13 x 24 tire), Demountable type

2шт.

7

G46240

DISC

WHEEL - center disc. (for 24" rim), Demountable type

2шт.

8

G10701

BOLT

- rim to wheel (5/8 x 2-11/16" N.F.), Demountable type

12шт.

9

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5.8" N.F. hex), Demountable type

12шт.

10

B18264

WHEEL BOLT

BOLT - disc. to axle (9/16 x 1-5/32" N.F. spec. hd.), Demountable type

16шт.

15

G12002

RIM

(Takes 12.4/11 x 28 tire), Demountable type

2шт.

15

G45710

RIM

(Takes 13.6/12 x 28 or 14.9/13 x 28 tire), Demountable type

2шт.

16

G12001

DISC

WHEEL - center disc. (for 28" rim), Demountable type

2шт.

17

G10701

BOLT

- rim to wheel (5/8 x 2-11/16" N.F. spec.), Demountable type

12шт.

18

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" x 2-11/16" N.F. spec.), Demountable type

12шт.

19

G1087

X

HUB - rear wheel, Demountable type

2шт.

20

G10841

BOLT

BOLT - hub, inner (3/4 x 4-1/2" N.F. hex.), Demountable type

4шт.

21

G10840

BOLT

- hub, outer (3/4 x 3-3/4" N.F. hex.), Demountable type

4шт.

22

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , Demountable type Int Tooth, 3/4"

8шт.

23

G10842

NUT

- hub bolts (3/4" N.F. hex.), Demountable type

8шт.

24

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16 x 1-5/32" N.F. hex.), Demountable type

16шт.

30

G12018

WEIGHT ATT. - 28" wheel (Set of 2)(mach. item), Includes: Ref. 31 - 33, rear

1шт.

31

11-1052

BOLT (MACHINE)

BOLT - (5/8 x 3-1/4" N.C. carr.), rear wheel weights

4шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.

33

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.

36

G12609

WEIGHT ATT. - 24" wheel (Set of 2)(mach. item), Includes: Ref. 37 - 39, rear

1шт.

37

11-1036

BOLT (MACHINE)

BOLT - (5/8 x 2-1/4" N.C. carr.), rear wheel weights

4шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.

39

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.

42

G12610

WEIGHT ATT. - 24" wheel added set (Set of 2)(Mach. item), Includes: Ref. 43 - 45, rear

1шт.

43

11-1052

BOLT (MACHINE)

BOLT - (5/8 x 3-1/4" N.C. carr.), rear wheel weights

4шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.

45

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.

48

G12536

WEIGHT ATT. - cast wheel only (Set of 2)(mach. item), Includes: Ref. 49 - 51, rear

1шт.

49

11-1060

BOLT - (5/8 x 3-3/4" N.C. carr.), rear wheel weights

4шт.

50

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rear wheel weights 5/8"

4шт.

51

25-1010

NUT,5/8"-11, G5

Rear wheel weights 5/8"-11, G5

4шт.
