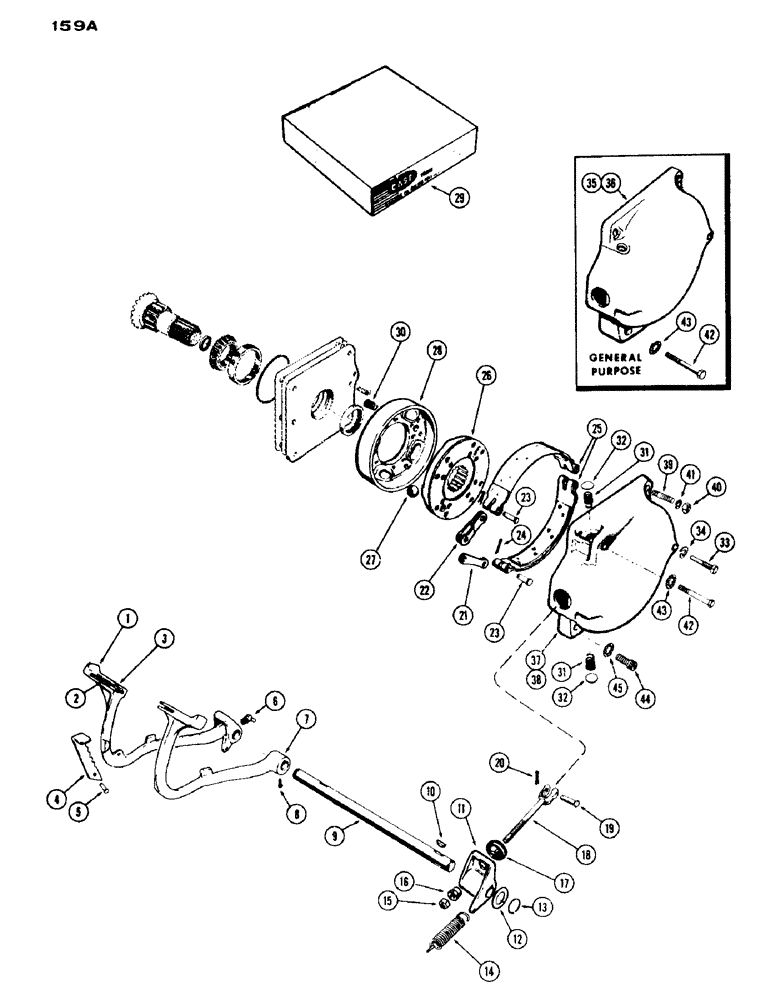

Запчасти Case IH 430 (159A) - BRAKE SYSTEM, 430 SERIES (06) - POWER TRAIN

1

G14212

PEDAL ASSY. - R.H. brake, Includes: Ref. 2 - 5

1шт.

2

A29086

INTERLOCK - pedal

1шт.

3

46-420

RIVET - 1/4" x 1-1/4" ctsk. hd.

1шт.

4

A29401

CATCH

- brake pedal

1шт.

5

45-418

RIVET,Button, 6.35mm OD x 28.57mm L

- 1/4" x 1-1/8" ctsk. hd.

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" 67-1/2 deg.

1шт.

7

G13013

PEDAL

ASSY. - L.H. brake, Includes: Ref. 8

1шт.

8

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

SCREW - set, 3/8 x 5/8" N.C. sq. hd. cup pt.

1шт.

9

G10708

SHAFT

- cross, brake pedal & lever

1шт.

10

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - brake pedal & lever

2шт.

11

G1057

LEVER

- L.H. brake

1шт.

12

B18145

WASHER

- retainer, cross shaft

2шт.

13

F62093

RING, SNAP

SNAP RING - cross shaft

2шт.

14

G10848

SPRING

- return, pedal & lever

2шт.

15

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

2шт.

16

G10709

NUT

- adjusting, brake rod

2шт.

17

G10943

DUST CAP

CAP - dust, brake rod

2шт.

18

G46351

ROD

- brake

2шт.

19

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke, brake rod to link

2шт.

20

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

21

G46345

LINK

- straight, brake actuating

4шт.

22

G46344

LINK

- offset, brake actuating

4шт.

23

G49082

PIN,14.22mm OD x 40.03mm L

-, Serial Range: link-band

2шт.

24

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

25

G45468

BRAKE LINING

BAND - actuating (Set of 2) (See Ref. 29)

2шт.

26

G45362

DISC

- brake (See ref. 29)

2шт.

27

211-21

BALL

- actuating drum (1" dia.)

8шт.

28

G45361

DRUM

- brake actuating (See Ref. 29)

1шт.

29

A41728

LINING

KIT - lining, brake band

1шт.

29

A41552

LINER

KIT - lining, brake disc

1шт.

30

G48508

SPRING

- disc. return

4шт.

31

G48507

SPRING

- band return

4шт.

32

41-13

GUARD,Exp, 13/16"

- return spring (3/16" dia.)

4шт.

33

G15801

BOLT

- anchor, actuating band

2шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

35

G1400

COVER - R.H. brake (Gen. Purpose)

1шт.

36

G1401

COVER - L.H. brake (Gen. Purpose)

1шт.

37

G1394

COVER

- R.H. brake (Standard)

1шт.

38

G1395

COVER

- L.H. brake (Standard)

1шт.

39

A29336

STUD

- cover, 1/2 x 2-1/2" (4 on Std.)

6шт.

40

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

6шт.

41

92-8

LOCK WASHER,1/2"

6шт.

42

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cover Hex, 1/2"-13 x 3 3/4", G5

2шт.

43

92-8

LOCK WASHER,1/2"

2шт.

44

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - 1/2 x 1-3/4" N.C. skt. hd. (std. only)

2шт.

45

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
