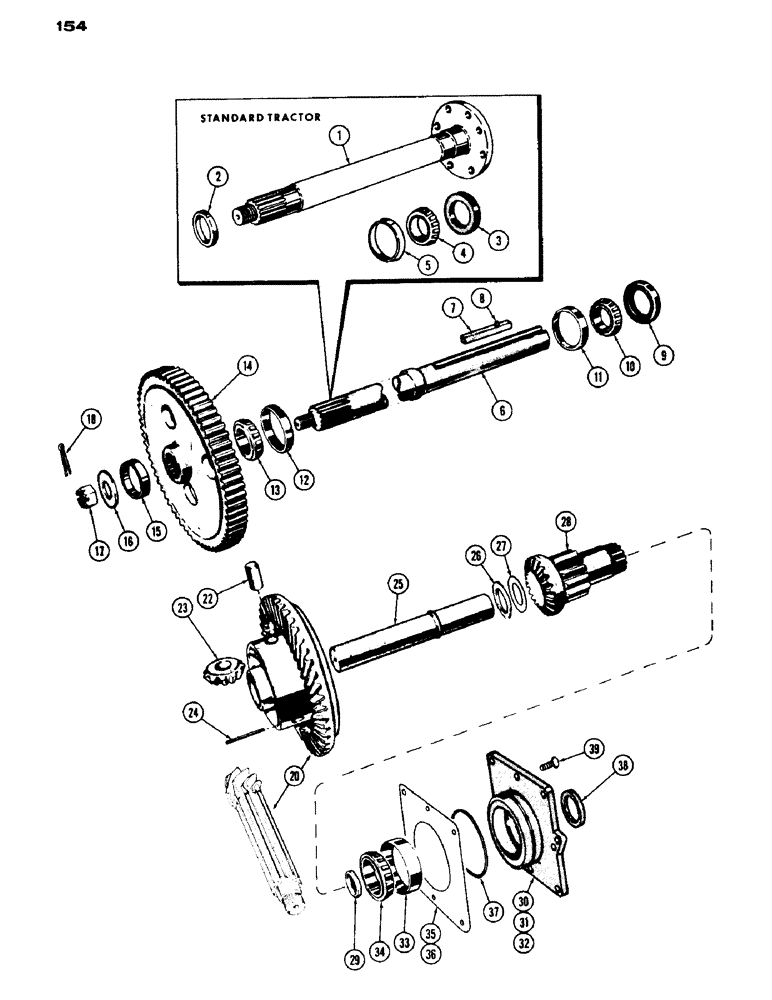

Запчасти Case IH 430 (154) - DIFFERENTIAL AND FINAL DRIVE (06) - POWER TRAIN

1

G17178

SHAFT - rear axle (Standard)

2шт.

2

G13801

OIL SEAL

OIL SEAL - inner (Standard)

2шт.

3

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

OIL SEAL - outer (Standard)

2шт.

4

G15207

ROLLER BEARING

CONE - outer bearing (Standard)

2шт.

5

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing (Standard)

2шт.

6

A37184

SHAFT - rear axle (Gen. Purpose)

2шт.

7

A35174

KEY - hub to axle (Gen. Purpose), Includes: Ref. 8

2шт.

8

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

9

G10346

OIL SEAL

OIL SEAL - outer (Gen. Purpose)

1шт.

10

A29975

CUP ASSY.

CONE - outer bearing (Gen. Purpose)

2шт.

11

A29974

CUP ASSY.

CUP - outer bearing (Gen. Purpose)

2шт.

12

G10415

BEARING CUP

CUP - inner bearing (Std. & Gen. Purpose)

2шт.

13

G10414

ROLLER BEARING

CONE - inner bearing (Std. & Gen. Purpose)

2шт.

14

A37925

GEAR

- final drive, Includes: Ref. 15

2шт.

15

G49616

SPACER

- drive gear

1шт.

16

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up, axle

2шт.

17

A30075

WHEEL NUT

- axle (1-1/2 N.F. hex. slotted)

2шт.

18

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

20

A38402

KIT

RING GEAR ASSY & COUNTERSHAFT (matched set) For Std. or G.P. (Replaces A37195)

1шт.

20

A37058

RING GEAR & COUNTERSHAFT (matched set) For L.C.K. models

1шт.

22

A37097

PIN

- pinion gear

3шт.

23

G15483

GEAR

- pinion

3шт.

24

138-103

LOCK PIN,3/16" x 1 7/8", Slotted

PIN, LOCK, 3/16" x 1 7/8", Slotted

3шт.

25

A37186

SHAFT

- cross, differential

1шт.

26

A30539

WASHER

- thrust (.089")

1шт.

26

A39007

WASHER

- thrust (.094")

1шт.

26

A30533

WASHER

- thrust (.099")

1шт.

26

A30045

WASHER

- thrust (.104")

1шт.

26

A30543

WASHER

- thrust (.109")

1шт.

26

A30051

WASHER

- thrust (.119")

1шт.

27

A29388

WASHER

SHIM - thrust washer (.010")

2шт.

28

G30596

GEAR

- side, Includes: Ref. 29

2шт.

29

A29902

PLUG

- side gear

1шт.

30

G30490

CARRIER

- bearing, R.H. gear (Standard)

1шт.

31

G30491

CARRIER

- bearing, L.H. gear (Standard)

1шт.

32

G30492

CARRIER - bearing, side gear (Gen. Purpose)

2шт.

33

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear

1шт.

34

A30114

CONE

- bearing, side gear

2шт.

35

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

36

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

37

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier

2шт.

38

A39273

OIL SEAL

OIL SEAL - bearing carrier (Replaces G10689)

2шт.

39

171-202

SCREW,Phil Flat Hd, Spin Lock, 3/8" - 16 x 3/4"

- lock, 3/8" x 3/4" flat hd.

2шт.
