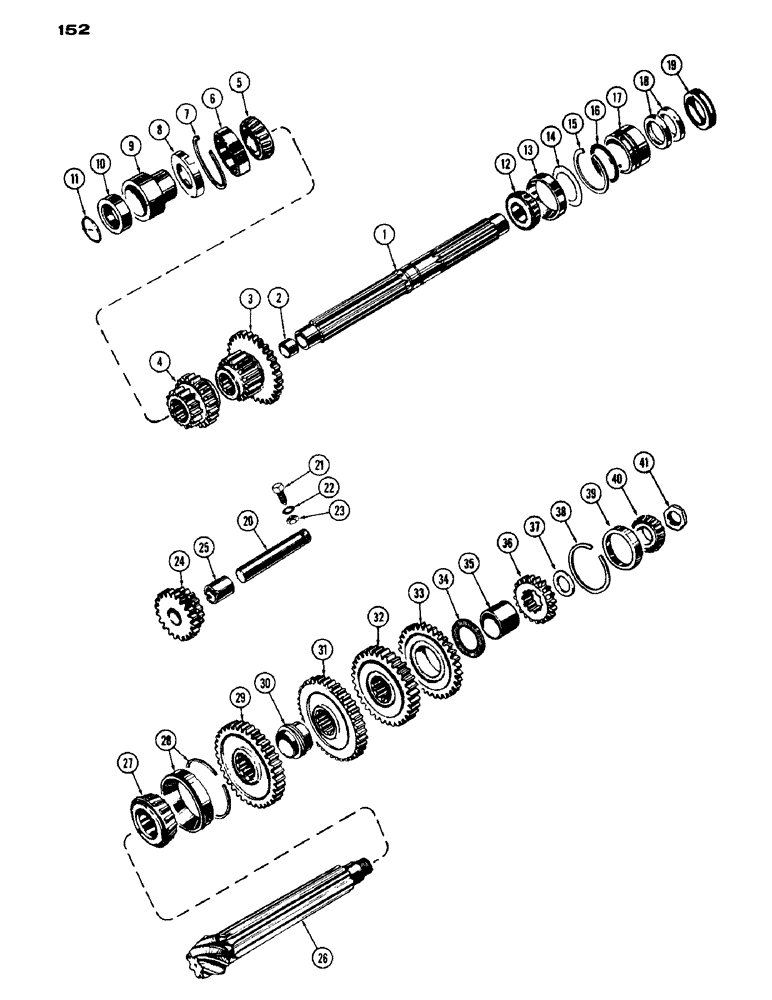

Запчасти Case IH 430 (152) - TRANSMISSION SHAFT AND GEARS (06) - POWER TRAIN

1

G10314

SHAFT - main (17-5/32") w/4 speed, Includes: Ref. 2

1шт.

2

G10315

BUSHING

- inner

1шт.

1

G13462

SHAFT

- main (14-19/32") w/8 speed and shuttle, Includes: Ref. 2

1шт.

2

G10315

BUSHING

- inner

1шт.

3

G10318

GEAR

- 3rd. (25T), 4th (39T), main shaft (See G16526)

1шт.

3

G16526

GEAR WHEEL

GEAR - 3rd. (25T), 4th (44T) main shaft w/shuttle

1шт.

4

G10317

GEAR WHEEL

GEAR - 1st (16T), 2nd (21T), mainshaft

1шт.

5

A29976

ROLLER BEARING

CONE - rear brg., main shaft

1шт.

6

A29977

BEARING CUP

CUP - rear brg., main shaft

1шт.

7

A29971

RING

SNAP RING - bearing retainer

1шт.

8

G10616

CUP

- oiling

1шт.

9

G10338

HOUSING

- rear oil seal

1шт.

10

G13802

OIL SEAL

OIL SEAL - rear

1шт.

11

41-24

PLUG

- rear, mainshaft (used w/out P.T.O.)

1шт.

12

G10424

CONE

- frt. brg. main shaft

1шт.

13

G10425

CUP

- frt. brg., main shaft

1шт.

14

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

14

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

15

A30092

RING

SNAP RING - frt. oil seal housing

1шт.

16

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - frt. oil seal housing (2-7/8" O.D.)

1шт.

17

G16605

HOUSING

- frt. oil seal

1шт.

18

G10422

OIL SEAL

OIL SEAL - frt.

2шт.

19

G10311

COLLAR

- pilot

1шт.

20

G10328

SHAFT

- reverse idler

1шт.

21

181-248

SET SCREW,Sq Hd, 3/8"-16 x 1 1/4"

SCREW - set, 3/8" x 1-1/4" N.C. sq. hd. dog pt.

1шт.

22

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C.

1шт.

24

G10312

GEAR

- reverse idler, Includes: Ref. 25

1шт.

25

A30196

BUSHING

- idler gear

1шт.

26

NSS

NOT SOLD SEPARAT

COUNTERSHAFT (See Figure 154 & 156)

1шт.

27

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear brg., countershaft

1шт.

28

A30115

CUP

- rear brg., countershaft

1шт.

29

G10320

X

GEAR - countershaft, 1st (47T)

1шт.

30

G13066

GEAR - speedometer drv.

1шт.

31

G10321

GEAR WHEEL

GEAR - 2nd (42T), countershaft

1шт.

32

G10322

GEAR

- 3rd. (38T), countershaft

1шт.

33

G1182

X

GEAR - oil slinger (38T)

1шт.

34

G46070

WASHER

- ret. oil slinger (1-5/8 x 2-3/8 x 1/8")

1шт.

35

G13260

BUSHING

SPACER - gear

1шт.

36

G10323

GEAR - 4th speed (24T), countershaft (See G16527)

1шт.

36

G16527

GEAR

- 4th. speed (19T), countershaft (high speed)

1шт.

37

G16530

SPACER

- gear (.169")

1шт.

37

G10791

SPACER

- gear (.174")

1шт.

37

G16531

SPACER

- gear (.179")

1шт.

37

G10792

SPACER

- gear (.184")

1шт.

37

G16532

SPACER

- gear (.189")

1шт.

37

G10793

SPACER

- gear (.194")

1шт.

37

G16533

SPACER

- gear (.199")

1шт.

37

G10794

SPACER

- gear (.204")

1шт.

37

G16534

X

SPACER - gear (.209")

1шт.

37

G10795

SPACER

- gear (.214")

1шт.

37

G16535

SPACER

- gear (.219")

1шт.

37

G16510

SPACER

- gear (.224")

1шт.

37

G16536

SPACER

- gear (.299")

1шт.

37

G16511

SPACER

- gear (.234")

1шт.

37

G16537

X

SPACER - gear (.239")

1шт.

37

G16512

SPACER

- gear (.244")

1шт.

38

A29971

RING

SNAP RING - bearing retainer

1шт.

39

A29977

BEARING CUP

CUP - frt. brg., countershaft

1шт.

40

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - frt. brg., countershaft

1шт.

41

G49010

LOCK NUT

- adjusting, countershaft

1шт.
