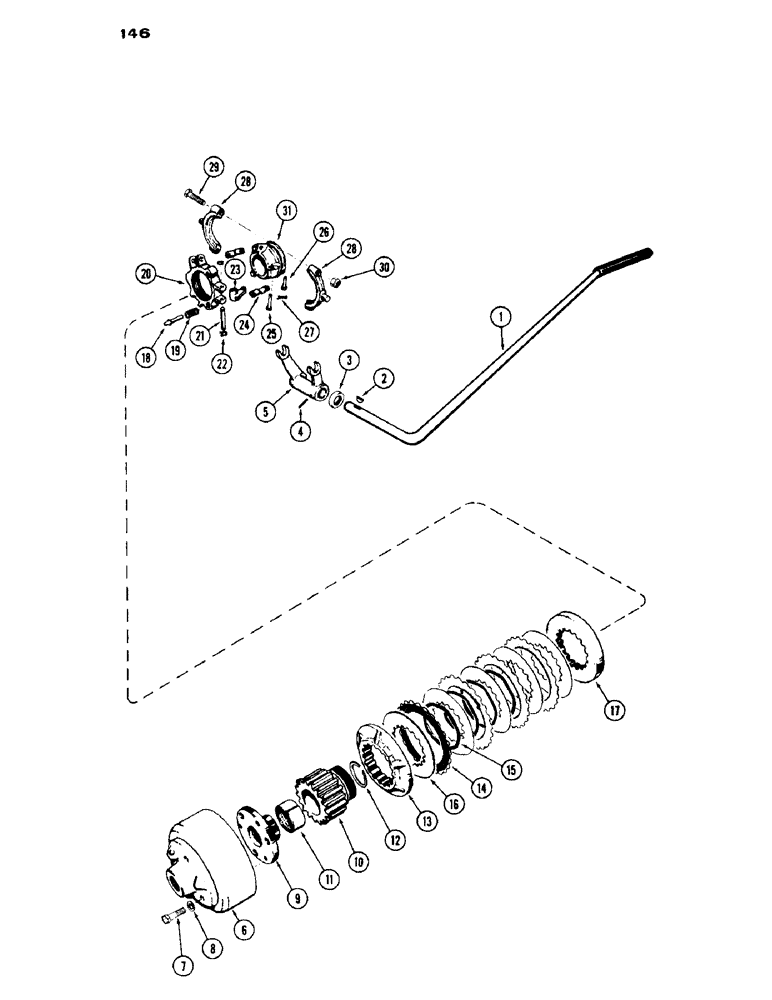

Запчасти Case IH 430 (146) - HAND CLUTCH WITH STANDARD P.T.O. (06) - POWER TRAIN

1

A37018

LEVER

- hand clutch

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

G13827

OIL SEAL

- hand lever

1шт.

4

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Yoke to clutch lever 3/16" x 1 3/8", Slotted

1шт.

5

G10439

COUPLING

YOKE - clutch throwout

1шт.

6

G10440

DRUM HUB

DRUM - clutch

1шт.

7

G49021

BOLT (SPREADER)

BOLT - drilled, Serial Range: drum-hub

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

G10441

HUB CAP

HUB - clutch drum, Includes: Ref. 11 and 12

1шт.

10

G14059

HUB CAP

HUB - clutch assembly, Includes: Ref. 11 and 12

1шт.

11

G10437

BEARING

BUSHING - clutch hub

1шт.

12

G10438

RING

SNAP RING

1шт.

13

A7107

PLATE

- locking

1шт.

14

A11127

PLATE

- clutch drv. (external tooth)

5шт.

15

A27591

VALVE SPRING

SPRING - separator, clutch plate

5шт.

16

A57170

BRAKE DISC

PLATE - clutch drive (internal tooth)

6шт.

17

A26225

LARGE PLATE

PLATE - pressure

1шт.

18

A34248

LOCK PIN,7.85mm OD x 39.62mm L

PIN - lock, clutch adjusting yoke

2шт.

19

A26944

VALVE SPRING

SPRING - lock pin, clutch adjusting

2шт.

20

A27592

FORK

YOKE - adjusting, clutch

1шт.

21

G10658

AXLE PIN

PIN - pivot, clutch finger

3шт.

22

G10659

SNAP RING,#31, Ext

RING - snap, , pivot pin #31, Ext

6шт.

23

A36552

FINGER

- clutch

3шт.

24

A27596

LINK

- clutch finger

6шт.

25

A8824

PIN

- inner, link (1-15/64")

3шт.

26

A8823

PIN,6.29mm OD x 26.99mm L

- outer, link (1-1/32")

3шт.

27

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

6шт.

28

A28596

COLLAR CLAMP

COLLAR - throwout, Includes: Ref. 29 and 30

1шт.

29

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- 5/16" x 2" N.F. hex. hd.

2шт.

30

131-3

LOCK NUT,5/16"-24, GB

NUT - stop, 5/16" N.C. hex.

2шт.

31

A26226

SLEEVE CYLINDER

SLEEVE - sliding clutch throwout

1шт.
