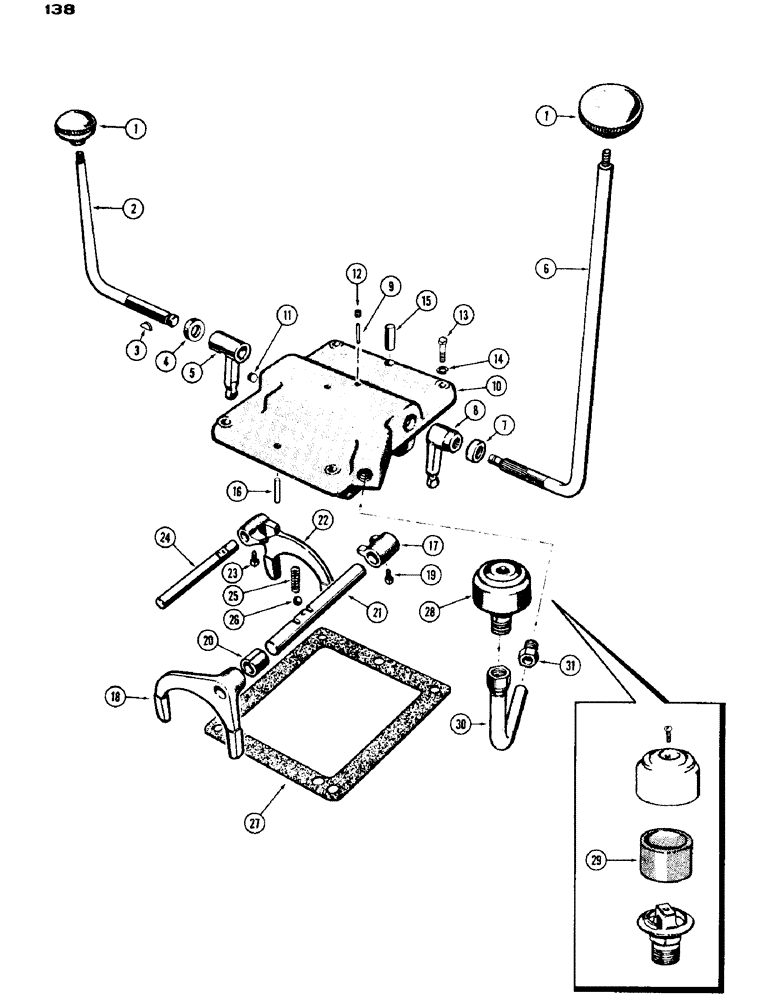

Запчасти Case IH 430 (138) - SHUTTLE AND DUAL RANGE CONTROL COVER (06) - POWER TRAIN

1

A26727

BALL

KNOB - control lever

2шт.

2

G15656

LEVER

- shift control, low and direct range

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

A26778

SEAL

OIL SEAL - shift lever, low and direct range

1шт.

5

G15657

LEVER

- shift fork, low and direct range

1шт.

6

G15658

LEVER

- shift control, shuttle

1шт.

7

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

OIL SEAL - shift lever, shuttle

1шт.

8

G15659

LEVER

- shift fork, shuttle

1шт.

9

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Shift fork lever 1/8" x 1", Slotted

1шт.

10

G30389

X

COVER - shuttle control, Includes Ref. 11 and 12

1шт.

11

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" roll thrd. hex. socket hd.

1шт.

12

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" roll thrd. hex. socket hd.

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

G10711

PIN

- dowel, control rear (1/2" x 3/4")

1шт.

16

A29426

AXLE PIN

PIN - dowel, control cover front (3/8 x 3/4")

1шт.

17

G16638

LUG

- shuttle shift rail

1шт.

18

G16633

FORK

- shift, shuttle

1шт.

19

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shift fork and lug

2шт.

20

A38203

SPACER

- shuttle shift rail (1/2" long)

1шт.

21

G30264

KIT

RAIL - shift, shuttle (includes A38203 spacer)

1шт.

22

G16632

FORK

- shift, low and direct range

1шт.

23

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shift fork

1шт.

24

G16634

RAIL

- shift, low and direct range

1шт.

25

G47039

SPRING

- detent, shift rail

2шт.

26

211-11

BALL,3/8" Dia

- detent, shift rail

2шт.

27

G46842

GASKET

- cover to torque tube

1шт.

28

A9238

BREATHER

- oil (includes Ref. 29)

1шт.

29

A10059

FILTER, ELEMENT

ELEMENT - filter, oil breather

1шт.

30

G30309

BREATHER,0.7535" OD x 1.5" L

TUBE - breather

1шт.

31

222-508

TUBE NUT,1"-18

NUT - breather tube to cover (81LB-3/4")

1шт.
