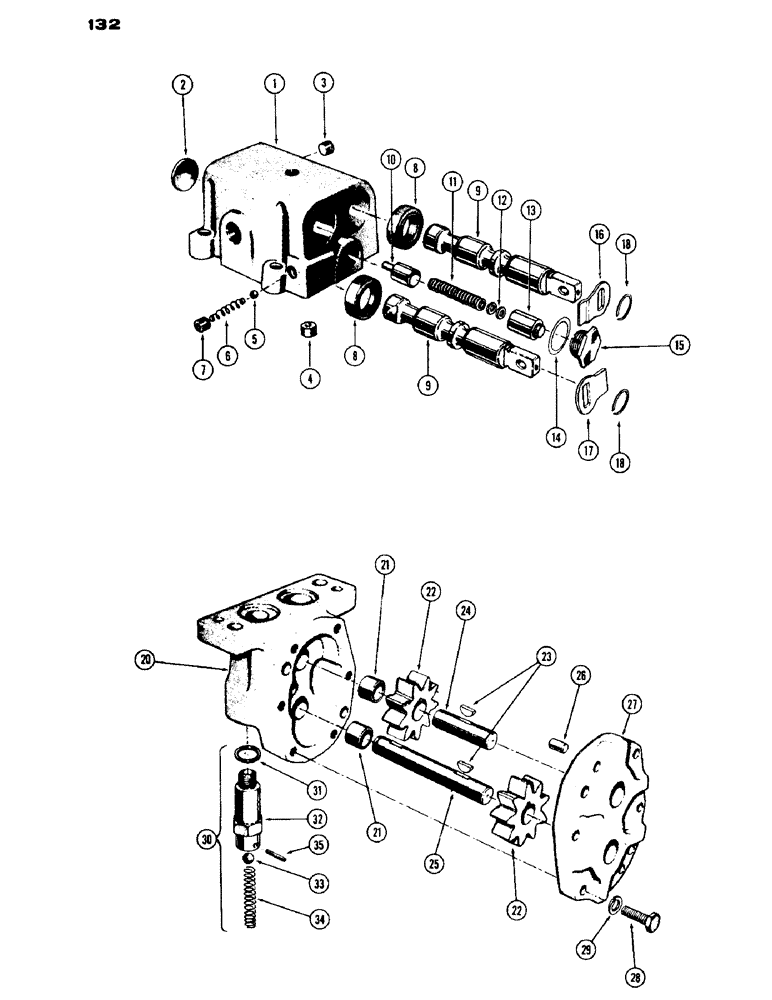

Запчасти Case IH 430 (132) - CONTROL VALVE PARTS, PUMP PARTS, CASE-O-MATIC (06) - POWER TRAIN

G14458

VALVE ASSY. - control (not illust.), Includes: Ref. 1 and 2

1шт.

1

A11504

BODY

1шт.

2

41-16

PLUG,Exp, 1"

- spool opening

2шт.

1

G15616

HOOD - (Gas) (used w/upright muffler), Includes: Ref. 3 - 18

1шт.

3

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

2шт.

4

A20092

PLUG

- pressure, regulator orifice

1шт.

5

211-7

BALL,1/4" Dia

- steel, check valve 1/4" Dia

1шт.

6

A11517

VALVE SPRING

SPRING - check valve

1шт.

7

221-1849

PLUG

- pipe, 1/8" hex. socket hd.

1шт.

8

A11507

OIL SEAL

OIL SEAL - spool

2шт.

9

A11506

SPOOL

2шт.

10

A11510

PLUNGER

- small, pressure regulator

1шт.

11

A11512

VALVE SPRING

SPRING - pressure regulator

1шт.

12

195-9

WASHER - 3/16 x 3/8 x 3/64"

1шт.

13

A11511

PLUNGER

- large, pressure regulator

1шт.

14

A11513

GASKET

- cap, pressure regulator

1шт.

15

A11514

CAP - pressure regulator

1шт.

16

G16809

PLATE ASSY.

PLATE - interlock, R.H. spool

1шт.

17

G16808

PLATE ASSY.

PLATE - interlock, L.H. spool

1шт.

18

A29329

RING, SNAP

SNAP RING - interlock plate

2шт.

G45386

PUMP

ASSY. - drive (not illust.), Includes: Ref. 20 - 35, parts

1шт.

20

A11535

HOUSING ASSY., Includes: Ref. 21, pump parts

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING, pump parts

2шт.

22

A11523

GEAR

pump parts

2шт.

23

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Gear to shaft, Pump parts #3, 1/8" x 1/2"

2шт.

24

A11525

SHAFT

- idler, pump parts

1шт.

25

A11522

SHAFT

- drive, pump parts

1шт.

26

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, pump parts

2шт.

27

A11536

COVER ASSY. - (includes ref. 21), pump parts

1шт.

28

15-412

X

BOLT - 1/4 x 3/4" N.C. hex. hd., pump parts

6шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Pump parts 1/4"

6шт.

30

G30570

VALVE

ASSY. - relief, Includes: Ref. 31 - 35, pump parts

1шт.

31

A11530

GASKET

- relief valve to body, pump parts

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order G30570), pump parts

1шт.

33

211-9

BALL,5/16" Dia

- relief valve (5/16" chrome), pump parts

1шт.

34

G48512

SPRING

- relief valve, pump parts

1шт.

35

138-37

LOCK PIN,3/32" x 1/2", Slotted

ROLL PIN - relief valve spring (1/8" x 3/4"), pump parts

1шт.
