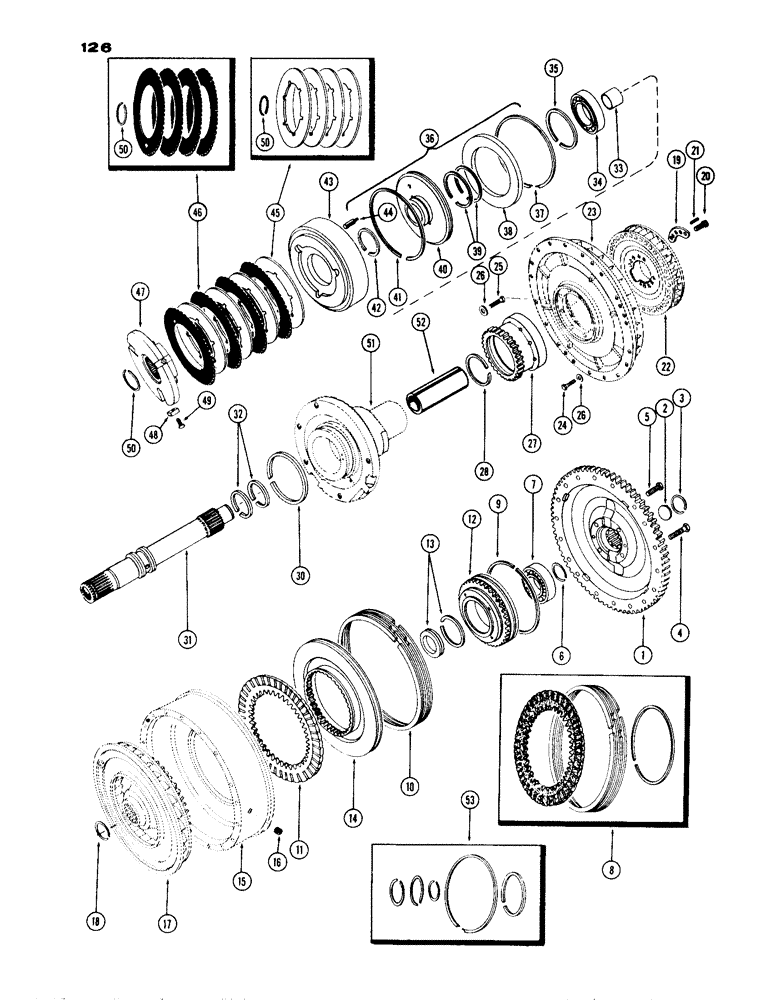

Запчасти Case IH 430 (126) - TORQUE CONVERTER PARTS, CASE-O-MATIC DRIVE (06) - POWER TRAIN

G30373

CONVERTER

TORQUE CONVERTER ASSY. (not illust.), Includes: Ref. 1 - 44

1шт.

1

A36378

CARRIER ASSY. - clutch, Includes: Ref. 2 and 3

1шт.

2

A36372

PLUG

1шт.

3

A36277

SNAP RING,1.125", Int, #112

(see A36276) 1.125", Int, #112

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- carrier to hsg. 5/16 x 1-1/4" N.C. hex.

18шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Brg. carrier Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

A36385

RING

SNAP RING - frt. bearing (See A36276)

1шт.

7

A36266

BEARING

- front

1шт.

8

A36260

PLATE

KIT - front clutch plate, Includes: Ref. 9 - 11

1шт.

Also included: (4) large snap rings, (4) small snap rings, (1) large expander ring, (1) small expander ring.

1шт.

9

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

10

NSS

NOT SOLD SEPARAT

RING - piston

4шт.

11

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

12

A36265

CARRIER

- bearing

1шт.

13

A36267

SEAL

KIT - oil seal, bearing carrier

1шт.

14

A36264

PISTON

- clutch

1шт.

15

A41492

CONVERTER

HOUSING - rotating

1шт.

16

A41365

PLUG

- housing (1/8" P.T. ctsk. sckt. hd.)

1шт.

17

A41479

TURBINE

1шт.

18

G46700

SNAP RING

- turbine to sleeve (See A36276)

1шт.

19

A36278

PLATE

- lock

2шт.

20

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16 x 3/4" N.C. sckt. hd.

6шт.

21

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

4шт.

22

A41480

STATOR

1шт.

23

A41478

IMPELLER

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Impeller to hsg. Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Gear to impeller Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" small flat)

26шт.

27

A41400

GEAR

ASSY. - pump drive

1шт.

28

A36273

RING

- seal

1шт.

30

A36412

SEAL ASSY.

RING - seal

1шт.

31

A36274

SLEEVE ASSY. - output, Includes: Ref. 32 and 33

1шт.

32

A20229

RING

- seal

2шт.

33

G49634

BUSHING

1шт.

34

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - rear

1шт.

35

A36373

RING, SNAP

SNAP RING - bearing to sleeve (see A36276)

1шт.

36

G45476

PISTON ASSY.

PISTON KIT - master clutch, Includes: Ref. 37 - 44

1шт.

37

A36374

RING, SNAP

SNAP RING - plate to piston (See A36276)

1шт.

38

NSS

NOT SOLD SEPARAT

PLATE - piston

1шт.

39

A36376

SEAL

RING - seal, piston carrier

2шт.

40

NSS

NOT SOLD SEPARAT

CARRIER - piston

1шт.

41

A36379

SEALING RING

RING - seal, piston carrier

1шт.

42

A36380

SEAL

RING - piston

1шт.

43

NSS

NOT SOLD SEPARAT

PISTON - clutch

1шт.

44

A40842

AXLE PIN

PIN -, Serial Range: carrier-piston

1шт.

45

G14280

CLUTCH ASSEMBLY

KIT - clutch plate, int. tooth (incl. G46700 snap ring)

1шт.

46

G14281

CLUTCH ASSEMBLY

KIT - clutch plate, ext. tooth (incl. G46700 snap ring)

1шт.

47

G45438

PLATE ASSY.

- back, master clutch, Includes: Ref. 48 and 49

1шт.

48

A36383

KEY

3шт.

49

A36382

SCREW

- key lock

3шт.

50

G46700

SNAP RING

- backplate (See A36276)

1шт.

51

A41477

CARRIER

ASSY. - stator, Includes: Ref. 52

1шт.

52

A41482

SLEEVE - carrier housing

1шт.

53

A36276

KIT

- snap ring (incl. 1-A36277, 1-A36385, 2-G46700, 1-A36373 & 1-A36374)

1шт.
