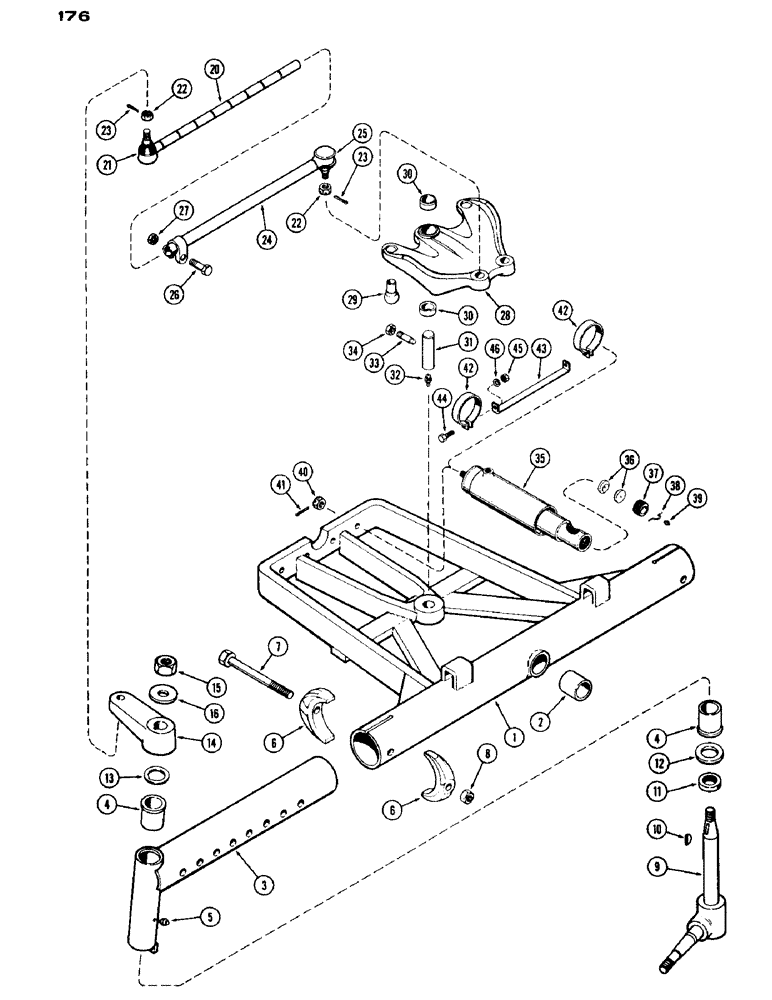

Запчасти Case IH 430 (176) - HYDROSTATIC STEERING, ADJUSTABLE FRONT AXLE, 52" TO 80" (05) - STEERING

1

A36797

AXLE ASSY. - center section, Includes: Ref. 2

1шт.

2

A36626

BUSHING

- pivot (1-3/4 x 1-5/16 x 1-5/8")

1шт.

3

A40746

EXTENSION ASSY. - front axle, Includes: Ref. 4

2шт.

4

A36637

BUSHING,34.82mm ID x 41.43mm OD x 50.8mm L

- spindle

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

6

A36638

CLAMP

- extension

4шт.

7

113-641

X

BOLT - clamp (5/16 x 6-1/2" N.C. hex. hd.)

2шт.

8

25-1010

NUT,5/8"-11, G5

Clamp 5/8"-11, G5

2шт.

9

A36659

RING

SPINDLE - front wheel

2шт.

10

126-40

WOODRUFF KEY,#G, 3/8" x 1 1/2"

Spindle #G, 3/8" x 1 1/2"

2шт.

11

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - thrust, spindle

2шт.

12

A37051

WASHER

- thrust, spindle

1шт.

13

A29467

SHIM,.010" Thk

Steering arm (1-13/32" x 2-1/8") .010" Thk

1шт.

14

A36646

ARM

- steering, R.H.

1шт.

14

A36647

ARM

- steering, L.H.

1шт.

15

A31194

NUT - arm to spindle (1" N.C. hex)

2шт.

P/N A41449 clamp for A40790 tube

1шт.

A28084

WASHER

1шт.

16

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- 1" plain

2шт.

20

A40522

ROD

ASSY. - tie, Includes: Ref. 21

2шт.

21

G46043

COVER

- dust, end

1шт.

22

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod (9/16" N.F. slotted)

4шт.

23

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

24

A40790

TUBE

ASSY - tie rod, Includes: Ref. 25

2шт.

Replaced by A31194 nut and A280874 washer

1шт.

24a

A41449

CLAMP

use with Ref. 24, A40790 tube

1шт.

25

G46043

COVER

SEAL - dust, end

1шт.

26

13-838

BOLT,Hex, 1/2" - 13 x 2-3/8", Gr 5

- clamp (1/2 x 2-3/8" N.C. hex.)

2шт.

27

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

28

A38144

ARM

ASSY. - steering center, Includes: Ref. 29 and 30

1шт.

29

A38145

BALL

- steering arm

2шт.

30

A36645

BUSHING,25.25mm ID x 34.98mm OD x 16.13mm L

- center pivot

2шт.

31

A36648

PIN

- pivot, center arm

1шт.

32

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" st. drive)

1шт.

33

178-260

SET SCREW,Hex Soc, 3/8"-16 x 1 1/4"

SCREW - set (3/8" x 1-1/4" N.C. socket hd. dog pt.)

1шт.

34

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. half hex.)

1шт.

35

A36761

CYLINDER ASSY. - hydraulic (Repairs Figure 174)

2шт.

36

A26629

BEARING

- ball stud

4шт.

37

A36762

X

SCREW - bearing adjusting

2шт.

38

A36763

ELECTRICAL WIRE

WIRE - lock, adjusting screw

2шт.

39

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" str. drive)

2шт.

40

25-139

SLOTTED NUT,9/16"-18, G5

NUT - cyl. end (9/16" N.F. slotted)

2шт.

41

132-30

COTTER PIN,3/32" x 1 1/4"

PIN - cotter (1/8 x 1-1/4")

2шт.

42

A37948

CLAMP - cylinder stabilizer

2шт.

43

A37947

X

STRAP - cylinder clamp

1шт.

44

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Clamp Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

45

25-104

NUT,1/4"-20, G5

Clamp 1/4"-20, G5

2шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

A57441

STEERING KNUCKLE

short axle, 18-1/4 high

1шт.
