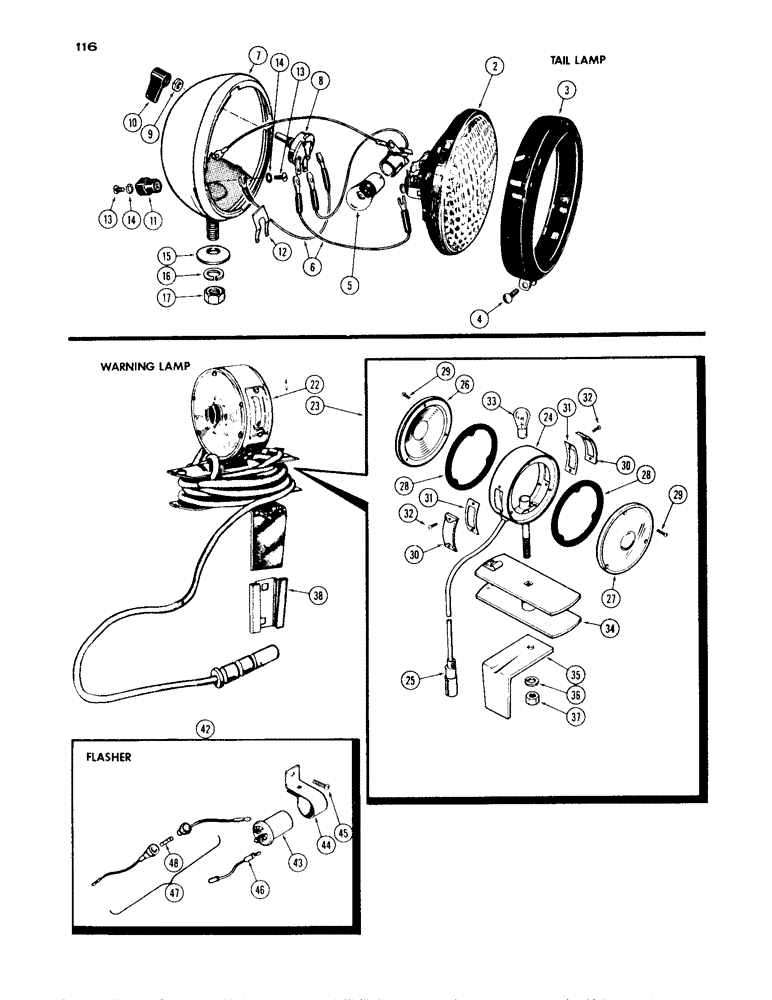

Запчасти Case IH 430 (116) - COMBINATION FLOOD AND TAIL LAMP, WARNING LAMP ATTACHMENT, AND FLASHER ATTACHMENT (04) - ELECTRICAL SYSTEMS

A20965

LAMP BASE

LAMP ASSY. - tail & stop (not illustrated), Includes: Ref. 2 - 17

1шт.

2

A40855

LAMP BASE

LAMP ASSY. - sealed beam unit, Includes: Ref.

1шт.

3

B50255

MOLDING

- lamp retaining

1шт.

4

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding retaining

1шт.

5

B50223

BULB

- warning light (15 C.P.)

1шт.

6

B50273

WIRE - lamp switch

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - lamp (order A20965)

1шт.

8

B50275

SWITCH

- lamp control

1шт.

9

B50224

SPECIAL NUT

- switch retaining

1шт.

10

B50310

SWITCH

KNOB - switch control

1шт.

11

B50293

TERMINAL CONNECTOR

TERMINAL ASSY. - lamp wire

1шт.

12

10927

SPRING

- terminal retaining

1шт.

13

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- lamp wire terminal

2шт.

14

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - (int. skpf.)

2шт.

15

10923

WASHER

- lamp bearing

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

22

A11066M

WARNING LAMP ATTACHMENT, Includes: Ref. 23 - 37

1шт.

23

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066 M), warning attachment, Includes: Ref. 24 - 37

1шт.

24

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066 M), warning lamp attachment

1шт.

25

B50259

PLUG

- auxiliary socket, warning lamp attachment

1шт.

26

B50337

LENS

- lamp (amber), warning attachment

1шт.

27

B53962

LENS

- lamp (red), warning attachment

1шт.

28

B50317

GASKET - lens, warning lamp attachment

2шт.

29

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens ret. (#6 x 1/2" rd. hd.), warning lamp attachment

6шт.

30

B50328

LENS - lamp, side, warning attachment

2шт.

31

B50329

GASKET - side lens, warning lamp attachment

2шт.

32

182-43

SCREW - side lens ret. (#6 x 5/16" pan hd.), warning lamp attachment

4шт.

33

33686

BULB

- lamp (21 C.P.), warning attachment

1шт.

34

B50330

SPOOL - cable storage, warning lamp attachment

1шт.

35

B50331

BRACKET - lamp attaching, warning

1шт.

36

92-7

LOCK WASHER,7/16"

warning lamp attachment 7/16"

1шт.

37

25-117

NUT,7/16"-20, G5

- lamp ret. (7/16" N.F. hex.), warning attachment

1шт.

38

A8179

SOCKET

- lamp mounting, warning attachment

1шт.

42

A22630M

FLASHER ATTACHMENT, Includes: Ref. 43 - 48

1шт.

43

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

44

A22626

BRACKET - flasher mounting, attachment

1шт.

45

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- bracket (#10 x 1/2" N.C., rd. hd.), flasher attachment

1шт.

46

A22628

WIRE - flasher to aux. socket, attachment

1шт.

47

A22629

WIRE ASSY. - flasher to power, attachment

1шт.

48

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp.), attachment

1шт.
