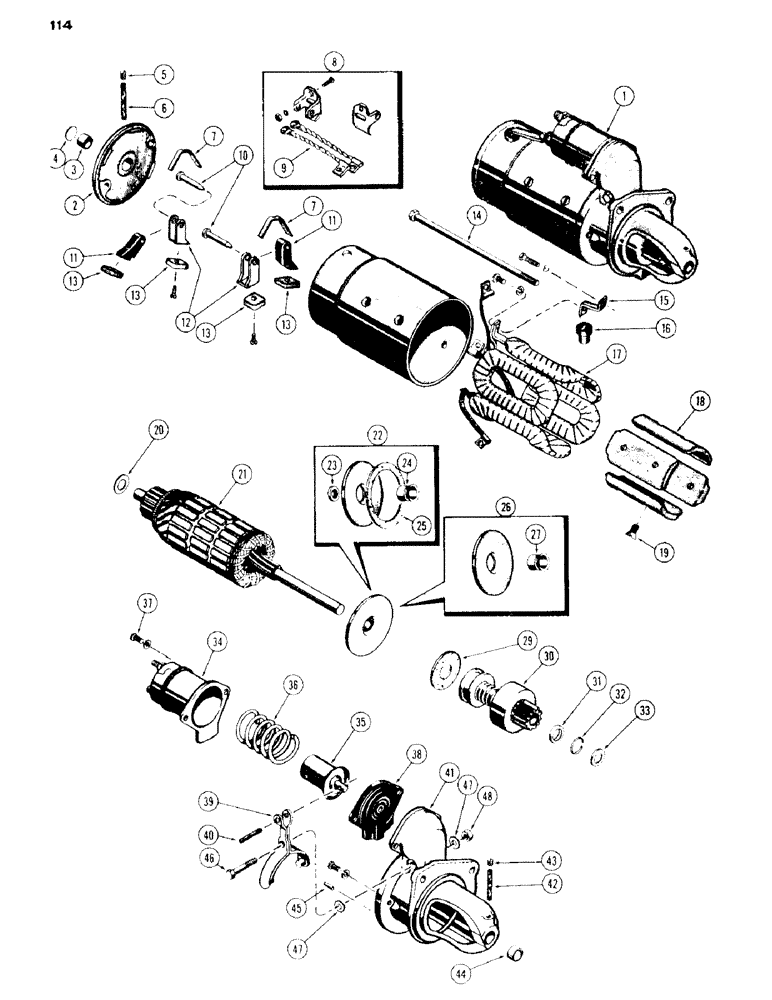

Запчасти Case IH 430 (114) - STARTING MOTOR PARTS, 430 AND 530 SERIES, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A39839

STARTING MOTOR

STARTER ASSY. - (Delco-Remy 1107583) (used w/Case-O-Matic) (Replaces A36583), Includes: Ref. 2 - 48

1шт.

1

A39839

STARTING MOTOR

STARTER ASSY. - (Delco-Remy 1107584) (used w/std. clutch) (Replaces A36582), Includes: Ref. 2 - 48

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end, Includes: Ref. 3

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

R15021

PLUG

PLUG - expansion

1шт.

5

221-1041

PLUG

PLUG - oil wick hole

1шт.

6

A41979

WICK

WICK - oil

1шт.

7

A25359

SPRING

SPRING - brush pressure

2шт.

8

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 9

1шт.

9

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground (#12 wire, 1-5/8" long)

2шт.

10

A41983

PIN

PIN - brush holder

2шт.

11

R15027

HOLDER

HOLDER - brush, insulating

2шт.

12

A40217

HOLDER

HOLDER - brush, ground

2шт.

13

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

14

A25552

BOLT

BOLT - thru

2шт.

15

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

16

A41980

GROMMET

GROMMET - connector

1шт.

17

A25319

COIL

COIL - field

1шт.

18

A25391

SHOE

SHOE - pole

4шт.

19

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes

8шт.

20

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, comm. end

1шт.

21

A40219

ARMATURE

ARMATURE

1шт.

22

A40223

PLATE

PLATE ASSY. - ctr. brg. (used w/A36583 Starter), Includes: Ref. 23 - 25

1шт.

23

A40228

OIL SEAL

SEAL - oil (3/4 x 1-1/4 x 1/4")

1шт.

24

A41982

BUSHING

BEARING - center plate

1шт.

25

A41981

GASKET

GASKET - center bearing

1шт.

26

A40215

PLATE ASSY.

PLATE ASSY. - ctr. brg. (used w/A36852 starter), Includes: Ref. 27

1шт.

27

A42125

BUSHING

BEARING - center plate

1шт.

29

R15043

WASHER

WASHER - thrust, ctr. brg.

1шт.

30

A41871

DRIVE

DRIVE - starter (used w/A36583 starter)

1шт.

30

A41871

DRIVE

DRIVE - starter (used w/A36582 starter)

1шт.

31

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

32

R15048

RING

RING - snap, collar retaining

1шт.

33

A25385

WASHER

WASHER - thrust, starter drive

1шт.

34

G44891

SOLENOID

SOLENOID ASSY.

1шт.

35

A40218

PLUNGER

PLUNGER - solenoid

1шт.

36

A40221

SPRING

SPRING - plunger return

1шт.

37

A42023

SCREW,#10 - 32 x 1/2"

SCREW - solenoid to drive hsg.

2шт.

38

A40222

BOOT

BOOT - solenoid & drive hsg.

1шт.

39

A40220

LEVER

LEVER - shift (used w/A36583 starter)

1шт.

39

A25397

LEVER

LEVER - (used w/A36582 starter) (Order A40220)

1шт.

40

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN, , shift lever to plunger 3/16" x 13/16", Slotted

1шт.

41

A40224

FRAME

HOUSING ASSY. - drive end (used w/A36583 starter)

1шт.

42

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - oil wick hole

1шт.

44

A40227

BUSHING

BUSHING - (1/2" I.D. x 9/16" O.D. x 25/32" lg.)

1шт.

41

A40226

FRAME

HOUSING ASSY. - drive end (used w/A36582 starter), Includes: Ref. 42 - 44

1шт.

42

R15129

WICK

WICK - oil

1шт.

43

221-1041

PLUG

PLUG - oil wick hole

1шт.

44

A25387

BEARING

BUSHING - (15/32" I.D. x 5/8" O.D. x 13/16" lg.)

1шт.

45

R15041

SPARE PART PIN - drive end locating

1шт.

46

A40520

BOLT

STUD - pivot, shift lever

1шт.

47

A42181

SEALING WASHER

WASHER - pivot stud

2шт.

48

425-145

JAM NUT,Jam, 5/16"-18, G5

NUT, , Pivot stud Jam, 5/16"-18, G5

1шт.
