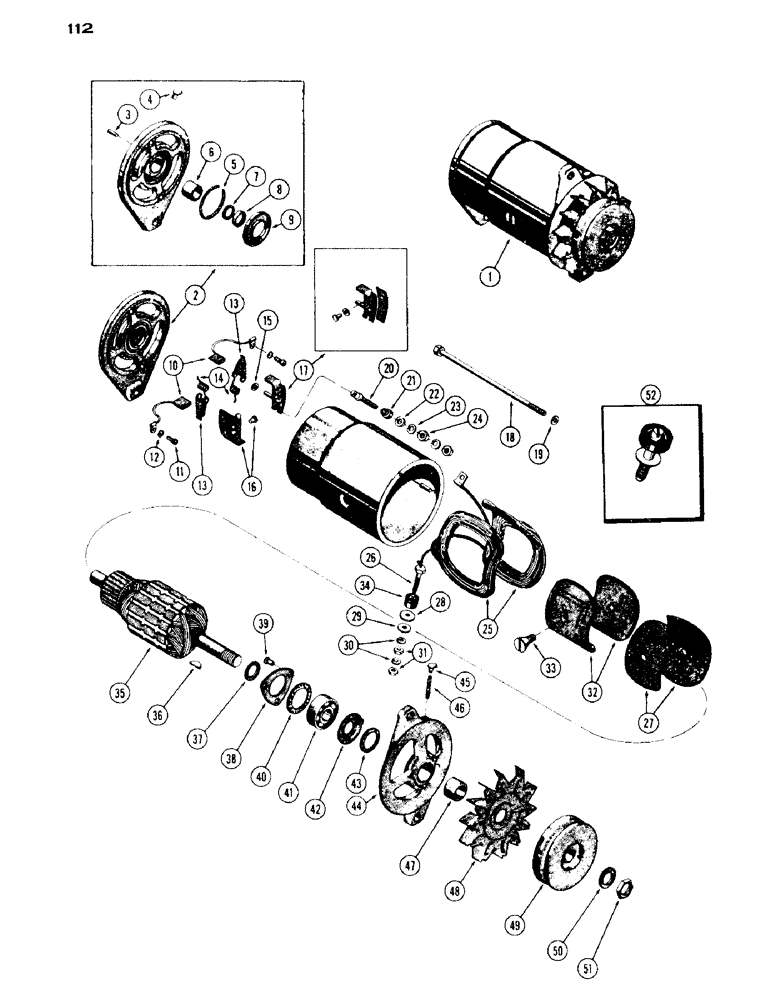

Запчасти Case IH 430 (112) - GENERATOR PARTS, 430 AND 530 SERIES, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A36563

GENERATOR

GENERATOR ASSY. - (Delco-Remy #1100443), Includes: Ref. 2 - 52

1шт.

1

103817A1R

REMAN-GENERATOR

Generator

1шт.

1

103817A1C

CORE-GENERATOR

Return Number

1шт.

2

A25411

HOUSING

HOUSING ASSY. - commutator end, Includes: Ref. 3 - 5

1шт.

3

R15095

SPARE PART PIN - head locating

1шт.

4

219-202

OILER

OILER

1шт.

5

A41417

WICK

WICK - oiler

1шт.

6

A25459

BUSHING

BUSHING - armature shaft

1шт.

7

R16157

WASHER

WASHER - comm. end (felt)

1шт.

8

R16156

CUP

CUP - retainer, felt washer

1шт.

9

NSS

NOT SOLD SEPARAT

RETAINER - oil wick

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

11

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

SCREW - brush lead (#6 x 1/4" rd. hd.)

2шт.

12

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

2шт.

13

R15090

ARM

ARM - brush pressure

2шт.

14

R16161

VALVE SPRING

SPRING - brush arm

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - brush arm spacer

2шт.

16

A40703

NOZZLE HOLDER

BRUSH HOLDER KIT - ground

1шт.

17

A40704

NOZZLE HOLDER

BRUSH HOLDER KIT - insulated

1шт.

18

A40129

BOLT

BOLT - thru

2шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , thru bolt 5/16"

2шт.

20

A40701

STUD

STUD - armature terminal

1шт.

21

R16147

BUSHING

BUSHING - arm term., insulating

1шт.

22

R15079

WASHER

WASHER - arm. ter., plain (metal)

1шт.

23

192-17

LOCK WASHER,#12

WASHER - lock, , Arm. terminal #12

2шт.

24

129-18

NUT,#12-24

NUT - arm. term. (#12 N.F. hex.)

2шт.

25

R16149

COIL ASSY.

COIL ASSY. - field, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order Ref. 52)

1шт.

27

R16152

INSULATOR

INSULATION - fiel coil

2шт.

28

NSS

NOT SOLD SEPARAT

WASHER - field term., insulating

1шт.

29

R15079

WASHER

WASHER - field term., plain (metal)

1шт.

30

192-17

LOCK WASHER,#12

WASHER - lock, , Field terminal #12

2шт.

31

129-18

NUT,#12-24

NUT - field term. (#12 N.F. hex.)

2шт.

32

A40700

SPARE PART SHOE - pole

2шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes (3/8 x 5/8" N.F., flat hd.)

2шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - insulating, field term. (Order Ref. 52)

1шт.

35

A40130

ARMATURE

ARMATURE

1шт.

36

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Armature shaft #5, 1/8" x 5/8", HT

1шт.

37

R15100

SPARE PART SPACER - retainer

1шт.

38

R15101

PLATE

RETAINER - bearing

1шт.

39

A41959

SCREW,#10 - 32 x 3/8"

SCREW - brg. retainer

3шт.

40

R16170

GASKET

GASKET - retainer

1шт.

41

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

42

R16169

LARGE PLATE

PLATE, LARGE RETAINER - felt washer

1шт.

43

R16168

WASHER

WASHER - drive end, felt

1шт.

44

A25442

HOUSING

HOUSING - assy., drive end, Includes: Ref. 45 and 46

1шт.

45

219-202

OILER

OILER

1шт.

46

A40700

SPARE PART WICK - oil

1шт.

47

R16166

BUSHING

SPACER - fan & pulley

1шт.

48

A25449

FAN

FAN - ventilating

1шт.

49

A25454

PULLEY

PULLEY - generator drive

1шт.

50

R16171

SPRING WASHER

WASHER - lock pulley nut

1шт.

51

A25546

NUT

NUT - pulley retaining

1шт.

52

A40702

STUD

KIT - field term. stud

1шт.
