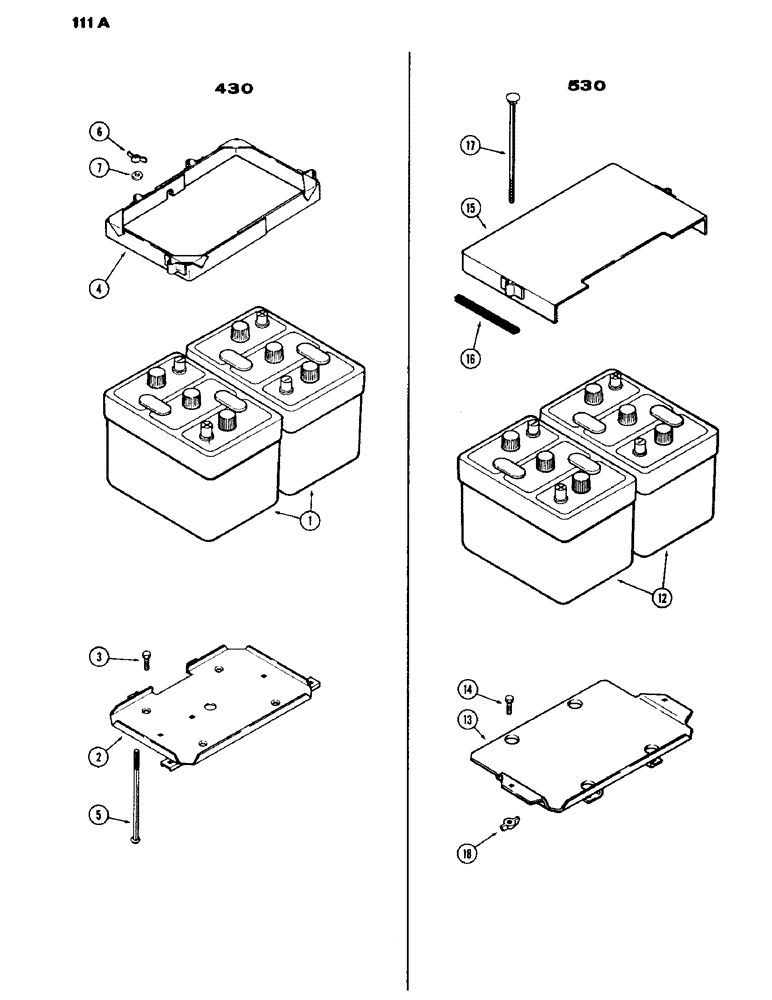

Запчасти Case IH 430 (111A) - BATTERY AND SUPPORTS, 430 AND 530 SERIES, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

1M-105R

BATTERY - (6 volt) (Dry), 430 (188) Diesel Engine

2шт.

2

G13150

PAN - battery base

1шт.

3

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

BOLT - battery pan

4шт.

4

G13205

COVER - battery hold down

1шт.

5

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - cover (5/16 x 9" N.C. carr.)

4шт.

6

G49020

NUT

- cover bolt (5/16" N.C. wing)

4шт.

7

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" small flat)

4шт.

12

1M-105R

BATTERY - (6 volt) (dry), 530 (188) Diesel Engine

2шт.

13

G30295

PAN - battery base, 530 (188 Diesel) Engine

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pan (3/8" x 1-1/2" N.C. hex), 530 (188 Diesel) Engine

4шт.

15

G30296

COVER ASSY

- battery hold down, Includes: Ref. 16, 530 (188 Diesel) Engine

1шт.

16

G46881

MOULDING - cover, rub (6" long), 530 (188 Diesel) Enginge

2шт.

17

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - cover (5/16" x 9" N.C. carr.), 530 (188 Diesel) Engine

2шт.

18

G49020

NUT

- cover bolt (5/16" N.C. wing), 530 (188 Diesel) Engine

2шт.
