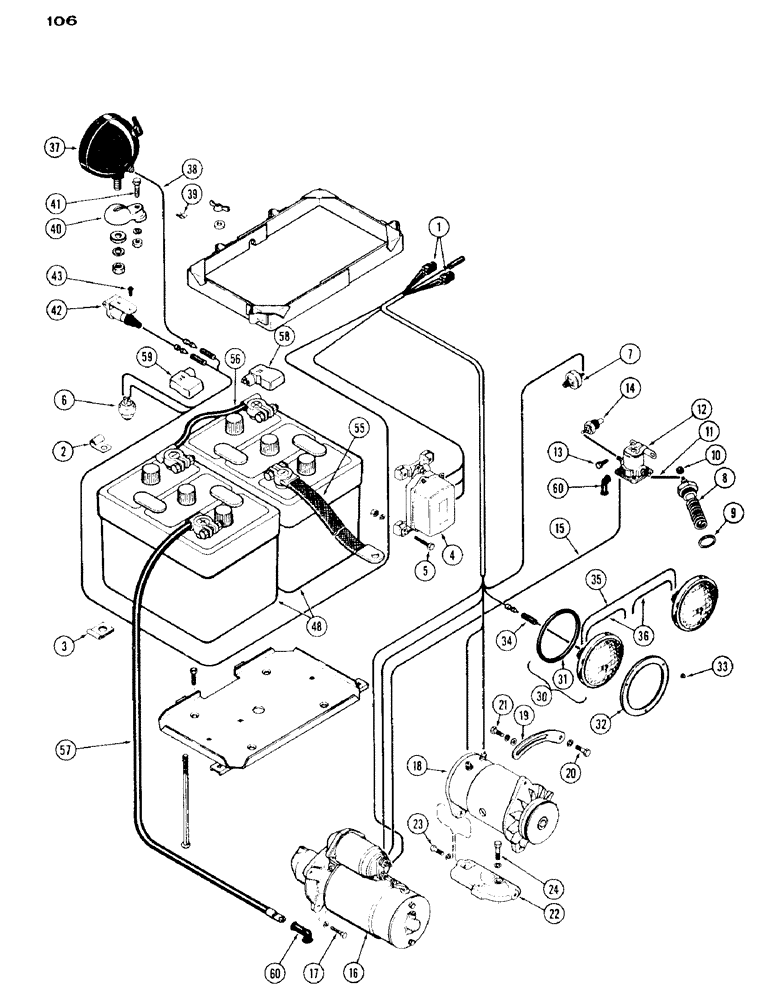

Запчасти Case IH 430 (106) - ELECTRICAL EQUIPMENT AND WIRING, 430 SERIES, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A36676

HARNESS

- main wire, w/plugs

1шт.

2

A37179

CLIP

- main wire harness

1шт.

3

A27033

CLIP - main wire harness

1шт.

4

A36564

X

REGULATOR ASSY. - voltage

1шт.

5

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - regulator (1/4 x 1-1/2" N.F. hex)

4шт.

6

A20990

SWITCH

- safety, neutral start

1шт.

7

A13794

TRANSMITTER

UNIT - sending, oil pressure

1шт.

8

A37775

HEATER

- manifold

1шт.

9

A20916

MANIFOLD GASKET

GASKET - heater (1 x 1-3/8 x 1/32" copper)

1шт.

10

129-503

NUT,1/4"-20, Brass

Heater 1/4"-20, Brass

1шт.

11

A21483

CABLE

-, Serial Range: solenoid-heater

1шт.

12

A21481

SOLENOID

- heater

1шт.

13

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Solenoid Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

14

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

15

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid (7" long)

1шт.

16

A36582

STARTER ASSY. - (Delco #1107584) Order A36583 (See Figure 114 for repairs)

1шт.

16

A36583

STARTER MOTOR

STARTER ASSY. - (Delco #1107583) See Figure 114 for repairs

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Starter Hex, 3/8"-16 x 2", G5

3шт.

18

A36563

GENERATOR

ASSY. - (See Figure 112)

1шт.

19

A37017

STRAP

- generator adjusting

1шт.

20

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- adj. strap (3/8 x 1-1/4" N.F. hex)

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Adj. strap to gen. Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

22

G2131

X

BRACKET - generator mounting

1шт.

23

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- gen. to mtg. brkt. (5/16 x 1" N.F. hex)

2шт.

24

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- mtg. brkt. (5/16 x 1-1/2" N.C. hex)

2шт.

30

A24572

LAMP

HEAD LAMP ASSY. - (sealed beam unit), Includes: Ref. 31

2шт.

31

A11276

GASKET

- head lamp

1шт.

32

A11275

RING

- retainer, head lamp

1шт.

33

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, , Lamp #6-32, GA

6шт.

34

A11943

WIRE - head lamp to harness (21" long)

1шт.

35

A11764

WIRE - jumper, head lamp (16" long)

1шт.

36

A33439

WIRE - ground, head lamp (12" long)

2шт.

37

A20965

LAMP BASE

TAIL LAMP ASSY. - (See Figure 116)

1шт.

38

A36554

ELECTRICAL WIRE

WIRE - tail lamp to harness (48" long)

1шт.

39

G46047

CLIP - tail lamp wire

1шт.

40

A34046

BRACKET

- tail lamp mounting

1шт.

41

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Lamp bracket Hex, 5/16"-18 x 2 1/4", G5

1шт.

42

A8170

SOCKET

- auxiliary outlet

1шт.

43

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- aux. socket (#10 x 1/2" N.C. RD. HD.)

2шт.

A37100

X

CLIP - eng. temp. sender wire (not illust.)

1шт.

48

1M-105R

BATTERY - (6 volt) (dry) (See note)

2шт.

55

A36368

STRAP

- battery ground (15" long)

1шт.

56

G13098

CABLE

- battery to battery (6-3/4" long)

1шт.

57

A27987

CABLE

-, Serial Range: battery-solenoid

1шт.

58

G46879

COVER

- cable terminal (stamped EL)

2шт.

59

G46880

COVER

- cable terminal (stamped ER)

1шт.

60

A21753

CAP

BOOT - cable terminal cover

2шт.
