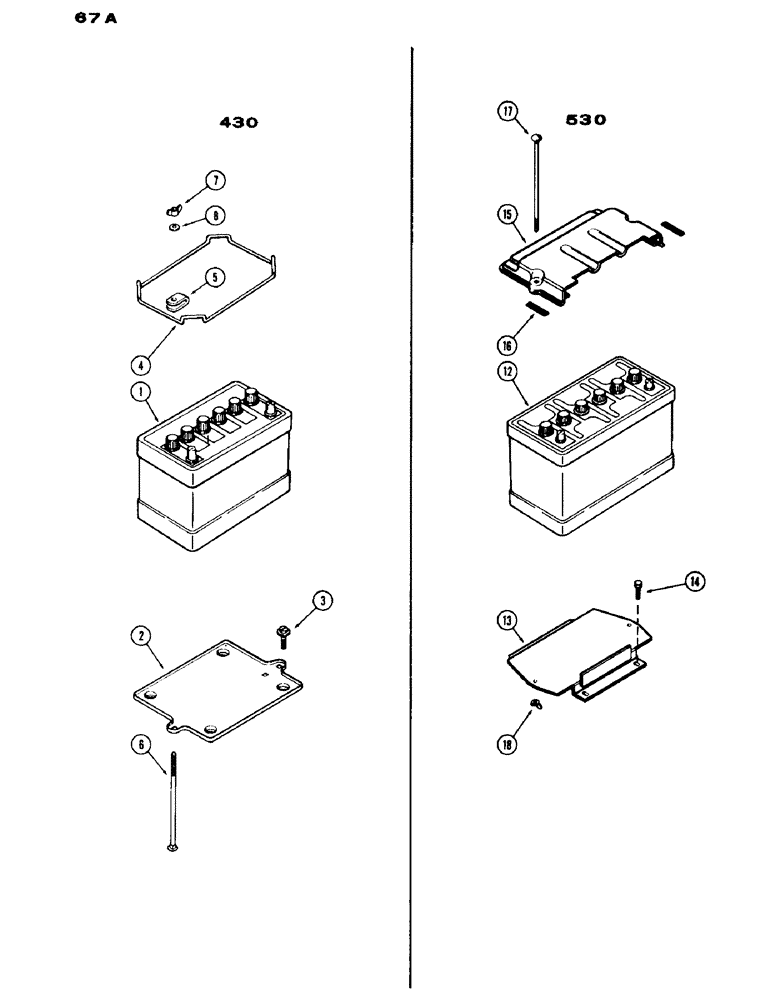

Запчасти Case IH 430 (067A) - BATTERY AND SUPPORTS, 430 SERIES, 148 B SPARK IGN. ENG., AND 530 SERIES, 159 SPARK IGN. ENG. (04) - ELECTRICAL SYSTEMS

1

11-MS

BATTERY - (12 volt) (dry), 430 (148B) Spark Ignition Engine

1шт.

2

G16909

PAN

- battery base

1шт.

3

193-513

SCREW,SEMS, Hex Hd, 5/16"-18 x 1/2"

- pan (5/16 x 1-1/2" N.C. spec.)

4шт.

4

A35009

SECURING STRAP

FRAME - battery hold down

1шт.

5

A35010

CLIP

CLAMP - battery hold down

2шт.

6

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - frame (5/16" x 9" N.C. carr)

2шт.

7

G49020

NUT

- frame bolt (5/16" N.C. wing)

2шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- (5/16" small flat)

2шт.

12

11-MS

BATTERY - 12 volt (dry), 530 (159) Spark Ignition Engine

1шт.

13

G30267

BASE

PAN - battery base, 530 (159) Spark Ignition Engine

1шт.

14

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- pan (3/8 x 1-1/2" N.C. hex.), 530 (159) Spark Ignition Engine

4шт.

15

G30268

COVER

ASSY. - battery hold down, Includes: Ref. 16, 530 (159) Spark Ignition Engine

1шт.

16

G46164

MOULDING - cover (2" long), 530 (159) Spark Ignition Engine

2шт.

17

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - cover (5/16 x 9" N.C. carr), 530 (159) Spark Ignition Engine

2шт.

18

G49020

NUT

- cover bolt (5/16" N.C. wing), 530 (159) Spark Ignition Engine

2шт.
