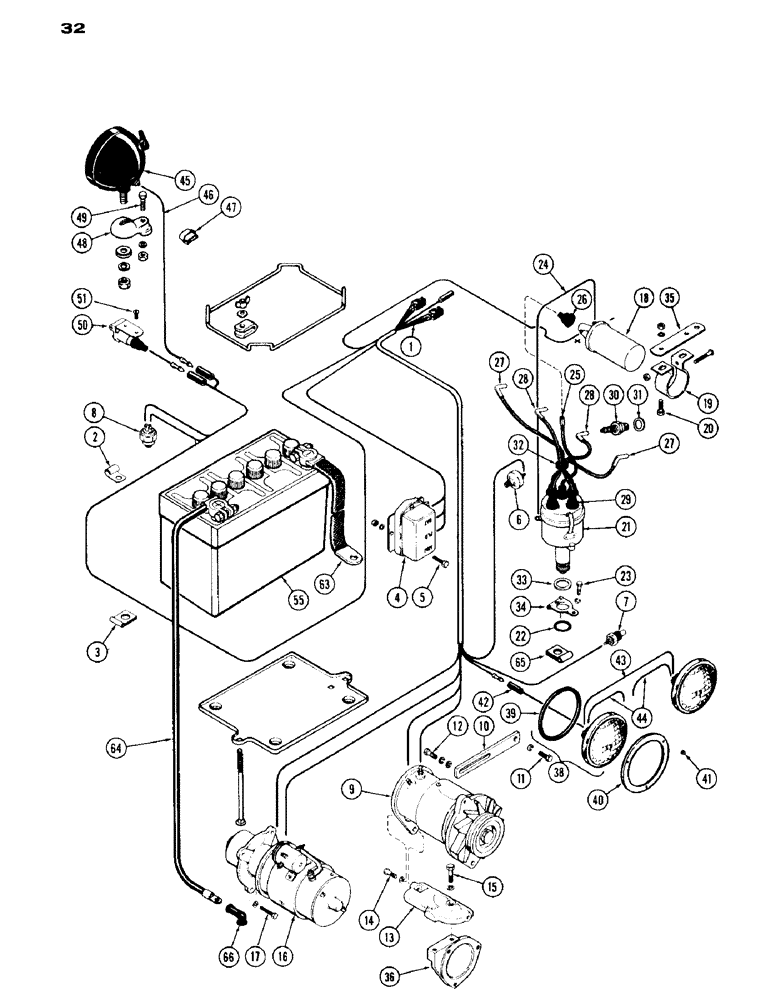

Запчасти Case IH 430 (032) - ELECTRICAL EQUIPMENT AND WIRING, 430 SERIES, 148 B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A36676

HARNESS

- main wire, w/plugs

1шт.

2

A27033

CLIP - main wire harness

1шт.

3

A37179

CLIP

- main wire harness

1шт.

4

A36194

REGULATOR

ASSY. - voltage

1шт.

5

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT - regulator (1/4 x 5/8" N. F. hex.)

3шт.

6

A13794

TRANSMITTER

UNIT - sending, oil pressure

1шт.

7

A21462

SENDER UNIT

UNIT - sending, engine temperature

1шт.

8

A20990

SWITCH

- safety, neutral start

1шт.

9

A36195

GENERATOR ASSY. - (See Figure 36), order A41452

1шт.

10

G11344

STRAP - generator adjusting

1шт.

11

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- adj. strap (3/8 x 1-1/4" N. F. hex.)

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Adj. strap to gen. Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

13

G2131

X

BRACKET - generator mounting

1шт.

14

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- gen. to mtg. brkt. (5/16 x 1" N. F. hex.)

2шт.

15

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- mtg. brkt. (5/16 x 1-3/8" N. C. hex.)

2шт.

16

A36581

STARTER ASSY. - (See Figure 38)

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Starter Hex, 3/8"-16 x 2", G5

3шт.

18

A33438

COIL

- ignition

1шт.

19

G46106

BRACKET

CLAMP - ignition coil

1шт.

20

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

- coil clamp (5/16 x 3/4" N. C. hex.)

2шт.

21

G11051

DISTRIBUTOR

ASSY. - (See Figure 34)

1шт.

22

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor seal (1-1/17 x 5/16 x 1/8")

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Adjusting arm Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

24

G13085

ELECTRICAL WIRE

WIRE - distributor to coil (lo-tension) (12" long)

1шт.

25

CASA30038

CABLE

WIRE - coil to dist. (11" long) (hi-tension)

1шт.

26

G46803

BOOT

NIPPLE - coil wire

1шт.

27

A29994

CABLE

WIRE - dist. to #1 and #4 spark plugs (10-1/2" long)

2шт.

28

A30018

CABLE

WIRE - dist. to #1 and #3 spark plugs (8-1/2" long)

2шт.

29

A29338

COVER

NIPPLE - dist. hi-tension wires

5шт.

30

G44840

SPARK PLUG

ASSY., Includes: Ref. 31

4шт.

31

G46839

GASKET

- spark plug

1шт.

32

A30109

WASHER

RING - tie, hi-tension wires

1шт.

33

A30080

THRUST WASHER

- thrust, distributor

1шт.

34

A29989

ARM

- advance, distributor

1шт.

35

G11705

BRACKET

- coil mounting

1шт.

36

G2098

SUPPORT - generator (w/no power steering)

1шт.

38

A24572

LAMP

HEAD LAMP ASSY. - (sealed beam unit), Includes: Ref. 39

2шт.

39

A11276

GASKET

- head lamp

1шт.

40

A11275

RING

- retainer, head lamp

2шт.

41

187-1102

SELF-TAP SCREW,#6 x 1/2"

SCREW - lamp ret. ( self-tapping) #6 x 1/2"

6шт.

42

A11943

WIRE - head lamp to harness (21" long)

1шт.

43

A11764

WIRE - jumper, head lamp (16" long)

1шт.

44

A33439

WIRE - ground, head lamp (12" long)

2шт.

45

A20965

LAMP BASE

TAIL LAMP ASSY. - (see Figure 116)

1шт.

46

A36554

ELECTRICAL WIRE

WIRE - tail lamp to harness (48" long)

1шт.

47

G46047

CLIP - tail lamp wire

1шт.

48

A34046

BRACKET

- tail lamp mounting

1шт.

49

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Lamp bracket Hex, 5/16"-18 x 2 1/4", G5

1шт.

50

A8170

SOCKET

ASSY. - auxiliary

1шт.

51

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- aux. socket (#10 x 1/2" N. F. rd. hd.)

2шт.

55

11-MS

BATTERY - (12 volt) (dry) (See Note) (F22631)

1шт.

63

A36368

STRAP

- battery ground (15" long)

1шт.

64

A27987

CABLE

-, Serial Range: battery-solenoid

1шт.

65

A37100

X

CLAMP - eng. temp. wire

1шт.

66

A21753

CAP

BOOT - cable terminal cover

1шт.
