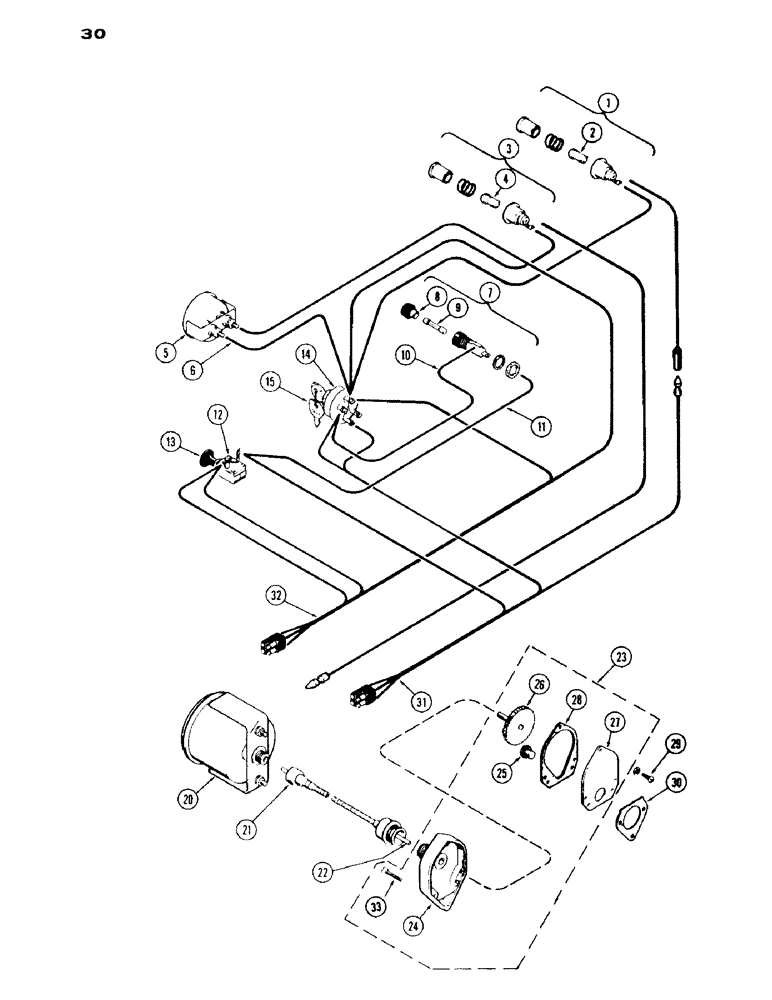

Запчасти Case IH 430 (030) - INSTRUMENTS AND WIRING, 430 SERIES, 148 B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A24085

LAMP

ASSY. - warning generater, Includes: Ref. 2

1шт.

2

A24354

BULB

- warning lamp

1шт.

3

A24084

LAMP

ASSY. - engine oil pressure, Includes: Ref. 4

1шт.

4

A24354

BULB

- oil pressure lamp

1шт.

5

A24080

GAUGE

ASSY. - engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to ignition switch

1шт.

7

A22874

HOLDER

ASSY. - fuse, Includes: Ref. 8

1шт.

8

A10958

CAP

- fuse holder

1шт.

9

223-20

FUSE,20 Amp, Type SFE

- (20 AMP)

1шт.

10

A22876

ELECTRICAL WIRE

WIRE - fuse to ignition switch

1шт.

11

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch

1шт.

12

G13142

IGNITION SWITCH

SWITCH ASSY. - lights, Includes: Ref. 13

1шт.

13

G13141

KNOB

- light switch

1шт.

14

A24511

SWITCH

ASSY - ignition, w/key (Gas) Includes: Ref. 15

1шт.

15

A24509

KEY

- switch (Set of 2)

1шт.

20

A32143

X

TACHOMETER ASSY. - and hour meter

1шт.

21

G45230

HOUSING

CABLE ASSY. - tachometer, Includes: Ref. 22

1шт.

22

A24523

KIT

SHAFT - tachometer drive

1шт.

23

A36818

DRIVE

ASSY. - tachometer, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING ASSY.

1шт.

25

A36522

GEAR WHEEL

GEAR - driven

1шт.

26

G46306

GEAR WHEEL

GEAR - drive

1шт.

27

G46307

COVER - tachometer housing

1шт.

28

G46882

GASKET

-, Serial Range: cover-housing

1шт.

29

187-1108

SCREW - cover (#8-32 x 3/8" pan hd.)

3шт.

30

G46878

GASKET

-, Serial Range: tachometer-generator

1шт.

31

A24076

PLUG

HARNESS - wire, w/red plug

1шт.

32

A21613

HARNESS

- wire, w/black plug

1шт.

33

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- drive to generator (#8-32 x 1" Sems)

3шт.
