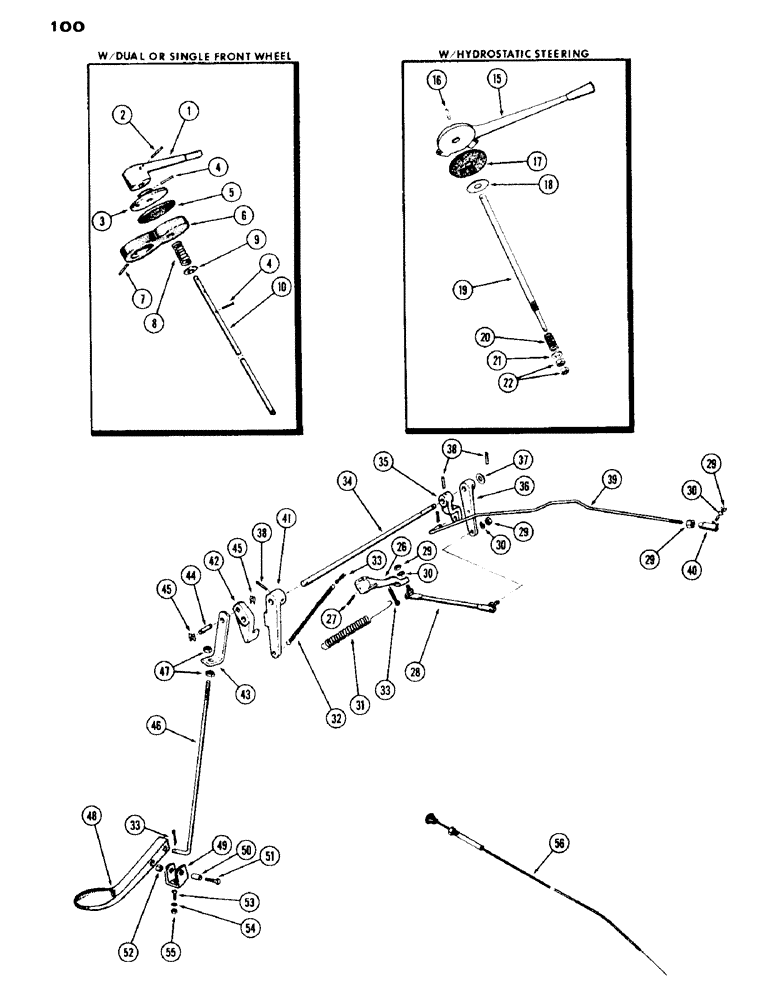

Запчасти Case IH 430 (100) - THROTTLE LINKAGE, 430 SERIES, 188 DSL ENG, USED W/DUAL OR SNGL FRONT WHEEL, HYDROSTATIC STEERING (03) - FUEL SYSTEM

1

G1085

LEVER

- hand, throttle control

1шт.

2

138-82

LOCK PIN,5/32" x 1 5/8", Slotted

PIN, 5/32" x 1 5/8", Slotted

1шт.

3

G1078

PLATE

- friction disc

1шт.

4

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

2шт.

5

G10786

DISC

- friction, cork

1шт.

6

G1077

SUPPORT - friction plate

1шт.

7

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN - roll (1/8 x 3/4")

2шт.

8

G46214

SPRING

- tension (2-3/16" free length, 10 coils)

1шт.

9

195-29

WASHER,7/16"

- (15/32 x 59/64 x 1/16")

1шт.

10

A36737

SHAFT - hand throttle (17-19/32" long, plain)

1шт.

15

A36513

LEVER

- hand, throttle control, used with hydrostatic steering only

1шт.

16

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, , Used with hydrostatic steering only 5/32" x 1", Slotted

1шт.

17

A11969

GASKET

DISC - friction, used with hydrostatic steering only

1шт.

18

A32838

WASHER

- spacer, used with hydrostatic steering only

1шт.

19

A36692

SHAFT

- hand lever (17-3/8" long, threaded), used with hydrostatic steering only

1шт.

20

A34113

SPRING

- tension (1" free length, 4 coils), used with hydrostatic steering only

1шт.

21

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 3/32"), used with hydrostatic steering only

1шт.

22

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam (1/2" N.F. hex), used with hydrostatic steering only

2шт.

26

A36693

LEVER

- lower, throttle shaft, parts used with all applications

1шт.

27

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Parts used with all applications 5/32" x 7/8", Slotted

1шт.

28

G45128

LINK

- throttle lever, parts used with all applications

1шт.

29

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.), parts used with all applications

4шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Parts used with all applications 1/4"

3шт.

31

A30082

SPRING

- return, hand throttle lever, parts used with all applications

1шт.

32

A29988

SPRING

- control lever, parts used with all applications

1шт.

33

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4", parts used with all applications

4шт.

34

G15568

SHAFT - cross, parts used with all applications

1шт.

35

A35716

LEVER - cross shaft to rod, parts used with all applications

1шт.

36

G1080

LEVER - actuating, cross shaft, parts used with all applications

1шт.

37

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64"), parts used with all applications

1шт.

38

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Parts used with all applications 5/32" x 7/8", Slotted

3шт.

39

A35717

ROD - cross shaft to pump, parts used with all applications

1шт.

40

A10329

BALL JOINT,1/4" - 28 x 1"

- rod to pump, parts used with all applications

1шт.

41

G1082

LEVER

- R.H., cross shaft, parts used with all applications

1шт.

42

G1314

LEVER - actuating, foot throttle, parts used with all applications

1шт.

43

G16898

LINK - connecting, yoke to lever, parts used with all applications

1шт.

44

G49056

PIN - pivot, link to lever, parts used with all applications

1шт.

45

A27720

SNAP RING

RING - retaining, pivot pin, parts used with all applications

2шт.

46

A35830

ROD

- connecting, parts used with all applications

1шт.

47

25-116

NUT,Hex, 3/8"-24, G5

- (3/8 N.F. hex.), parts used with all applications

2шт.

48

G15692

PEDAL

- foot throttle, parts used with all applications

1шт.

49

G15694

BRACKET

- pivot, foot pedal, parts used with all applications

1шт.

50

G49618

BUSHING

- pivot, foot pedal, parts used with all applications

1шт.

51

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- (5/16 x 1-1/2" N.F. hex.), parts used with all applications

1шт.

52

25-115

NUT,5/16"-24, G5

- 5/16" NF hex, parts used with all applications

1шт.

53

77-512

SCREW

- (5/16 x 3/4" truss hd.), parts used with all applications

2шт.

54

92-5

LOCK WASHER,5/16"

parts used with all applications 5/16"

2шт.

55

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex), parts used with all applications

2шт.

56

A36573

CONTROL

ROD - fuel shut-off (57" long) (cut to 54" for use w/dual or single front wheel linkage), parts used with all applications

1шт.
