Запчасти Case IH 430 (098) - INJECTION PUMP, FUEL FILTER, 430 AND 530 SERIES, 188 DIESEL ENGINE (02) - ENGINE

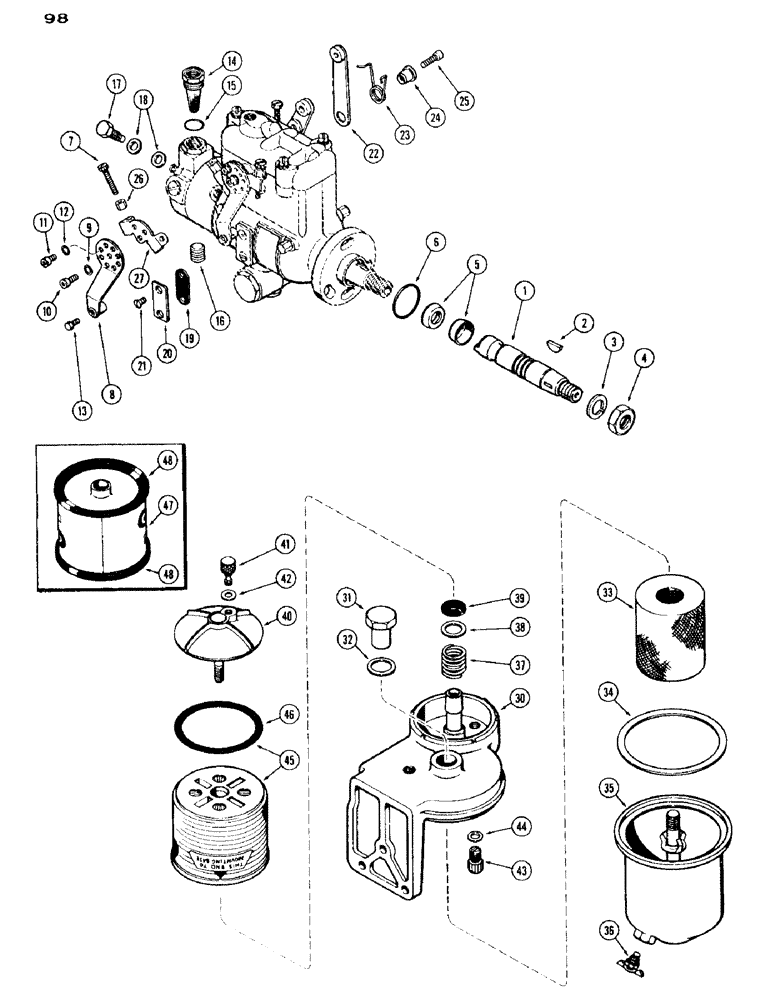

Схема запчастей Case IH 430 - (098) - INJECTION PUMP, FUEL FILTER, 430 AND 530 SERIES, 188 DIESEL ENGINE (02) - ENGINE
39
30
35
38
5
40
37
16
9
33
25
12
2
6
8
27
19
44
46
32
10
31
13
22
43
34
48
42
1
48
47
26
11
41
21
24
36
14
20
17
4
18
45
3
7
15
23

Артикул

Название

Примечание

Количество

G37030

PUMP ASSY. - injection (430), Includes: Ref. 1 - 27

1шт.

A35773

PUMP, FUEL INJECTION

PUMP ASSY. - injection (530 w/std. clutch), Includes: Ref. 1 - 27

1шт.

A35774

PUMP

ASSY. - injection (530 w/case-o-matic), Includes: Ref. 1 - 27

1шт.

1

G47113

SHAFT

SHAT - drive

1шт.

2

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

3

G49081

WASHER

- lock, drive shaft nut

1шт.

4

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" N.F. hex. jam

1шт.

5

R14711

SEAL

- drive shaft

2шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

7

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

8

G46337

ARM - shut-off

1шт.

9

73630

LOCK WASHER

WASHER - shut-off arm retaining screw

1шт.

10

73670

SCREW

- retaining, shut-off arm

1шт.

11

73646

SCREW

- positioning, shut-off arm

1шт.

12

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - lock, positioning screw

1шт.

13

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

- fitting, shut-off arm

1шт.

14

CAS73671

FILTER, ELEMENT

FILTER - fuel inlet

1шт.

15

51200280

SEAL

- filter

1шт.

16

221-841

PLUG

- pipe, end plate

1шт.

17

73613

SCREW

- connector, fuel line

4шт.

18

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

19

51200272

GASKET

- timing window cover

1шт.

20

G46330

COVER

- timing window

1шт.

21

51200263

SCREW

- timing window cover

2шт.

22

G45338

ARM

- throttle

1шт.

23

G48505

SPRING

- throttle arm

1шт.

24

G49621

RETAINER

- spring, throttle arm

1шт.

25

G49079

SET SCREW

SCREW - throttle arm

1шт.

26

72651

NUT - high idle screw

1шт.

27

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

A35735

FILTER

ASSY. - fuel, Includes: Ref. 30 - 46

1шт.

30

A35664

HEAD

- fuel filter mounting

1шт.

31

A21131

NUT

- primary filter body to head, fuel

1шт.

32

A28055

GASKET

- nut to head, fuel filter

1шт.

33

A35863

FILTER, ELEMENT

ELEMENT ASSY. - primary filter, Includes: Ref. 34, fuel

1шт.

34

A28056

GASKET

- primary filter to head, fuel

1шт.

35

CASA37099

HOUSING

BODY - primary filter (Replaces D28085 w/217-103), fuel

1шт.

36

217-102

PLUG, DRAIN

DRAIN COCK - primary filter (1/8" P.T.), fuel

1шт.

37

A35669

SPRING

- final filter, fuel

1шт.

38

A35670

WASHER

- final filter, fuel

1шт.

39

A35671

GASKET

- rubber, fuel filter

1шт.

40

A35672

CAP

ASSY. - final filter, Includes: Ref. 41 and 42, fuel

1шт.

41

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, fuel filter

1шт.

42

NLS

NO LONGER SERVICED

GASKET - bleeder valve, fuel filter

1шт.

43

G49080

PLUG

- drain, final filter, fuel

1шт.

44

G46886

O-RING

GASKET - drain plug, fuel filter

1шт.

45

A37187

FILTER, ELEMENT

FILTER KIT - final, fuel

1шт.

46

A37188

GASKET

- final filter (See Ref. 48), fuel

1шт.

47

A35668

FILTER

ASSY - final (Order Ref. 45 and 48), fuel

1шт.

48

G46895

GASKET

- final filter (See Ref. 46), fuel

2шт.

Выбрано товаров: 50
