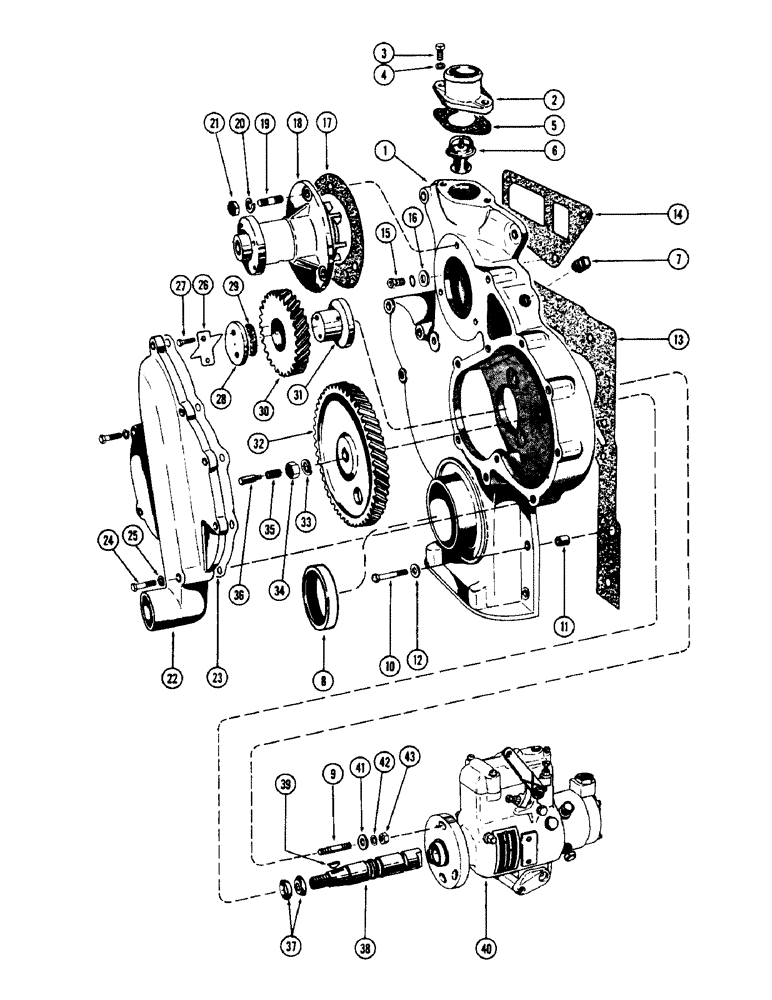

Запчасти Case IH 430 (092) - FUEL INJECTION PUMP DRIVE, 430 AND 530 SERIES, 188 DIESEL ENGINE (02) - ENGINE

1

A36823

COVER

COVER - injection pump drive, Includes: Ref. 2 - 9

1шт.

2

G2144

FITTING

CONNECTION - water outlet

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

5

G46907

GASKET

GASKET - water outlet

1шт.

6

A57641

THERMOSTAT

THERMOSTAT (180 deg.) (Replaces G45788)

1шт.

7

221-1843

PLUG

PLUG - pipe, 3/8" socket hd.

1шт.

8

A36609

OIL SEAL

OIL SEAL - crankshaft front

1шт.

9

G11204

STUD

STUD - pump mtg. (3/8" x 1-7/16")

3шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8" x 1-1/2" N.C. hex. hd.

3шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

10

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.C. hex. hd.

3шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - 3/8" x 3" N.C. hex. hd.

1шт.

10

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - 3/8" x 3-1/4" N.C. hex. hd.

3шт.

11

A29442

RING

RING - dowel, Serial Range: cover-block

2шт.

12

95-6

WASHER,3/8"

WASHER - plain 3/8"

2шт.

13

A38228

GASKET

GASKET - cover to block (Replaces G46857)

1шт.

14

G46858

GASKET

GASKET -, Serial Range: cover-head

1шт.

15

G49083

BOLT

BOLT - drilled, cover to head (1/2 x 3/4")

1шт.

16

A30058

WASHER

WASHER - drilled bolt

1шт.

17

G46875

GASKET

GASKET - water pump to cover, order A38083

1шт.

18

A37758

PUMP

WATER PUMP - (replaces G11939)

1шт.

18

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

18

A146584R

REMAN-WATER PUMP

Reman For New P/N A37758, Water Pump

1шт.

18

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

18

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

18

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

19

A29433

STUD

STUD - pump mtg. (3/8 x 1")

3шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

3шт.

22

G2077

COVER ASSY

COVER - drive gear

1шт.

23

G46859

GASKET

GASKET - gear cover

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

25

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

9шт.

26

G11746

PLATE

PLATE - lock, idler gear

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

28

G11732

PLATE

PLATE - thrust, idler gear

1шт.

29

G11728

SHIM,.005" Thk

SHIM, , Idler gear .005" Thk

1шт.

29

G11729

SHIM,.006" Thk

SHIM, , Idler gear .006" Thk

1шт.

29

G11730

SHIM,.007" Thk

SHIM, , Idler gear .007" Thk

1шт.

29

G11731

SHIM,.009" Thk

SHIM, , Idler gear .009" Thk

1шт.

30

G11852

GEAR

GEAR ASSY. - idler (incl. bushing)

1шт.

31

G11726

HUB

HUB - idler gear

1шт.

32

G2076

GEAR

GEAR - drive, injection pump

1шт.

33

G49081

WASHER

LOCKWASHER - pump drive shaft

1шт.

34

25-159

JAM NUT,Jam, 9/16"-18, G5

NUT - 9/16" N.F. hex. jam

1шт.

35

G48502

SPRING

SPRING - thrust, pump drive shaft

1шт.

36

G47128

PLUNGER

PLUNGER - thrust spring

1шт.

37

R14711

SEAL

SEAL - drive shaft

2шт.

38

G47113

SHAFT

SHAFT - pump drive

1шт.

39

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, #6, 5/32" x 5/8"

1шт.

40

G37030

SPARE PART PUMP - injection, 430 (see Figure 98)

1шт.

40

A35773

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP - injection 530 w/std. clutch (see Figure 98)

1шт.

40

A35774

PUMP

SPARE PART PUMP - injection, 530 w/Case-O-Matic (see Figure 98)

1шт.

41

A30043

WASHER

WASHER - pump mtg. stud

3шт.

42

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

43

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

3шт.
