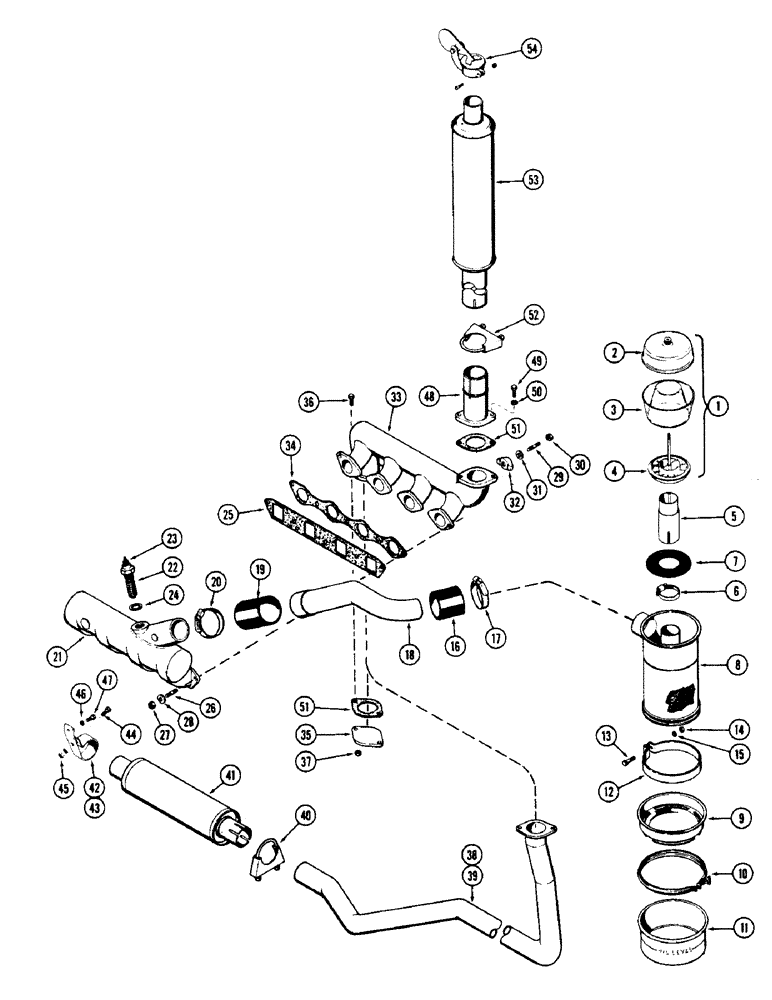

Запчасти Case IH 430 (090) - AIR CLEANER, MANIFOLD, MUFFLER, 430 SERIES, 188 DIESEL ENGINE (02) - ENGINE

1

D20604

PRECLEANER

PRE-CLEANER ASSY., Includes: Ref. 2 - 4

1шт.

2

D30676

COVER

1шт.

3

D30675

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

LOWER HALF

1шт.

5

A35651

EXTENSION

- pipe, pre-cleaner

1шт.

6

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- extension to air cleaner #36, 1.81/2.75 Type F Worm

1шт.

7

A36854

SHIELD

- extension

1шт.

8

G45238

AIR CLEANER ASSY., Includes: Ref. 9 - 11

1шт.

9

G46324

CUP

- oil, inner

1шт.

10

G45153

CLAMP

oil cup

1шт.

11

G46325

CUP

- oil, outer

1шт.

12

G15614

BAND - air cleaner mounting

1шт.

13

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rd. hd. sq. nk.

1шт.

14

25-104

NUT,1/4"-20, G5

1шт.

15

25-104

NUT,1/4"-20, G5

LOCKWASHER - 1/4" std.

1шт.

16

G46257

HOSE - tube to air cleaner 2" ID x 2.375" OD

1шт.

17

214-35

CLAMP

- hose

2шт.

18

G46321

TUBE - air, Serial Range: cleaner-manifold

1шт.

19

A30098

HOSE,2.50" ID x 2.81", SAE 20R2 CLASS R

RADIATOR HOSE, , Tube to Manifold 2.50" ID x 2.81", SAE 20R2 CLASS R

1шт.

20

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- hose to manifold #36, 1.81/2.75 Type F Worm

1шт.

21

A35781

MANIFOLD - intake

1шт.

22

A24396

X

HEATER - intake manifold, Includes: Ref. 23

1шт.

23

129-503

NUT,1/4"-20, Brass

1шт.

24

A20916

MANIFOLD GASKET

GASKET - heater

1шт.

25

G46871

GASKET

- intake manifold

1шт.

26

A29431

STUD

- manifold to head (3/8 x 1-3/4")

4шт.

27

131-903

NUT,3/8"-16

NUT - 3/8" N.C. (Seez Proof)

4шт.

28

195-25

WASHER,3/8"

- plain, SAE. 3/8"

4шт.

29

A35175

STUD

- manifold clamp (3/8" x 2-7/16")

6шт.

30

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

6шт.

31

92-6

LOCK WASHER,3/8"

6шт.

32

A35028

CLAMP

-, Serial Range: manifold-head

6шт.

33

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

34

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

35

G2044

LARGE PLATE

COVER - exhaust opening

1шт.

36

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

2шт.

37

A30022

X

NUT - brass, 3/8" N.C. hex.

2шт.

38

A36908

PIPE, EXHAUST SYSTEM

PIPE - exhaust, underneath (standard)

1шт.

39

A36910

PIPE

- exhaust, underneath (gen. purpose)

1шт.

40

A27077

CLAMP

-, Serial Range: pipe-muffler

1шт.

41

G45287

MUFFLER

- underneath

1шт.

41

A36909

BRACKET

CLAMP - rear, muffler (standard)

1шт.

43

A35178

BRACKET

CLAMP - rear, muffler (gen. purpose)

1шт.

44

AA-516

BOLT - 5/16" x 1" rd. hd. sq. nk.

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N. C. hex.

1шт.

46

92-5

LOCK WASHER,5/16"

2шт.

47

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

48

G2125

OUTLET

- exhaust, upright muffler

1шт.

49

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

50

92-6

LOCK WASHER,3/8"

2шт.

51

G46853

MANIFOLD GASKET

- exhaust outlet

2шт.

52

A13240

CLAMP,2-5/8" ID

- upright muffler

1шт.

53

G45264

MUFFLER

- upright

1шт.

54

G45048

CAP

- weather

1шт.
