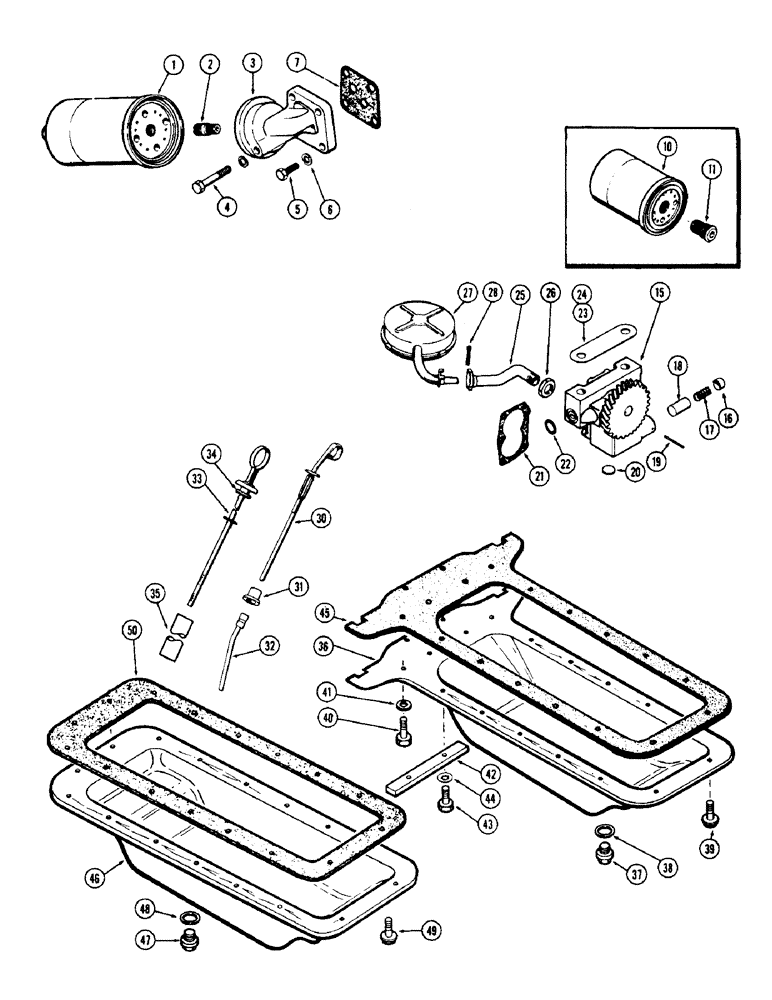

Запчасти Case IH 430 (088) - OIL FILTER, BRACKET MOUNTED, FLANGE MOUNTED AND OIL PUMP, OIL PAN, 430 & 530 SERIES, 188 DIESEL ENG. (02) - ENGINE

1

A37189

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil (replaces G45210)

1шт.

2

A35557

ADAPTER

ADAPTER -, Serial Range: filter-bracket

1шт.

3

A36616

BRACKET - filter mounting

1шт.

4

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

BOLT - 5/16" x 3-3/4" N.C. hex. hd.

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

5

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, (Upper rear) Hex, 5/16"-18 x 1 1/8", G5

1шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

GASKET -, Serial Range: bracket-block

1шт.

10

A37189

FILTER, ELEMENT

ELEMENT, FILTER FILTER - engine oil, flange mounted

1шт.

11

A153552

ADAPTER

ADAPTER - oil filter, flange mounted

1шт.

15

G37070

X

OIL PUMP ASSY. - complete, Includes: Ref. 16 - 21

1шт.

15

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

15

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

16

A29260

RETAINER

RETAINER - relief spring, oil pump

1шт.

17

G48500

SPRING

SPRING - relief, oil pump

1шт.

18

A155144

VALVE, PRESSURE RELI

- relief, oil pump

1шт.

19

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - 1/8 x 1/4", oil pump

1шт.

20

41-102

PLUG,Exp, 1/2"

PLUG - pump body, oil

2шт.

21

G46852

GASKET

GASKET - pump cover, oil

1шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port, pump

1шт.

23

G11337

SHIM,.002" Thk

SHIM, , Pump to block, Oil .002" Thk

2шт.

24

G11338

SHIM,.005" Thk

SHIM, , Pump to block, Oil .005" Thk

1шт.

25

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE - suction, oil pump

1шт.

26

223-207

LOCK NUT

NUT - lock, pipe to pump, oil

1шт.

27

A30126

SPARE PART FLOAT ASSY. - (includes screen), oil pump

1шт.

28

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), , Oil pump 1/8" x 1 1/4"

1шт.

30

G37037

DIPSTICK

DIPSTICK - oil level (before eng. #2117952), Includes: Ref. 31, pan

1шт.

31

G46892

OIL SEAL

SEAL - rubbher, oil pan

1шт.

32

G45139

BRACKET

SUPPORT - dipstick (before eng. #2117952), oil pan

1шт.

33

A37148

DIPSTICK

DIPSTICK - oil level (eng. #2117952 and after), Includes: Ref. 34, pan

1шт.

34

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - seal, oil pan

2шт.

35

A37149

TUBE

TUBE - dipstick and oil filter, pan

1шт.

36

A36720

X

OIL PAN ASSY. - (w/Case-O-Matic), Includes: Ref. 37 and 38

1шт.

37

A14280

PLUG

PLUG - drain, oil pan

1шт.

38

A27927

OIL PAN GASKET SET

GASKET - drain plug, oil pan

1шт.

39

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

14шт.

40

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - rear, 5/16 x 1-1/4" N.C. hex. hd., oil pan

2шт.

41

195-400

WASHER

WASHER - sealing, oil pan

2шт.

42

G11372

STRIP

STRIP - reinforcing, oil pan

1шт.

43

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, , Oil pan Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

44

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Oil pan Int Tooth, 5/16"

2шт.

45

NSS

NOT SOLD SEPARAT

GASKET - oil pan (order A40713 from Figure 78)

1шт.

46

A36717

PAN

OIL PAN ASSY. - (w/std. clutch), Includes: Ref. 47 and 48

1шт.

47

A14280

PLUG

PLUG - drain, oil pan

1шт.

48

A27927

OIL PAN GASKET SET

GASKET - drain plug, oil pan

1шт.

49

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (includes lockwasher)

18шт.

50

NSS

NOT SOLD SEPARAT

GASKET - oil pan (order A40712 from Figure 78)

1шт.
