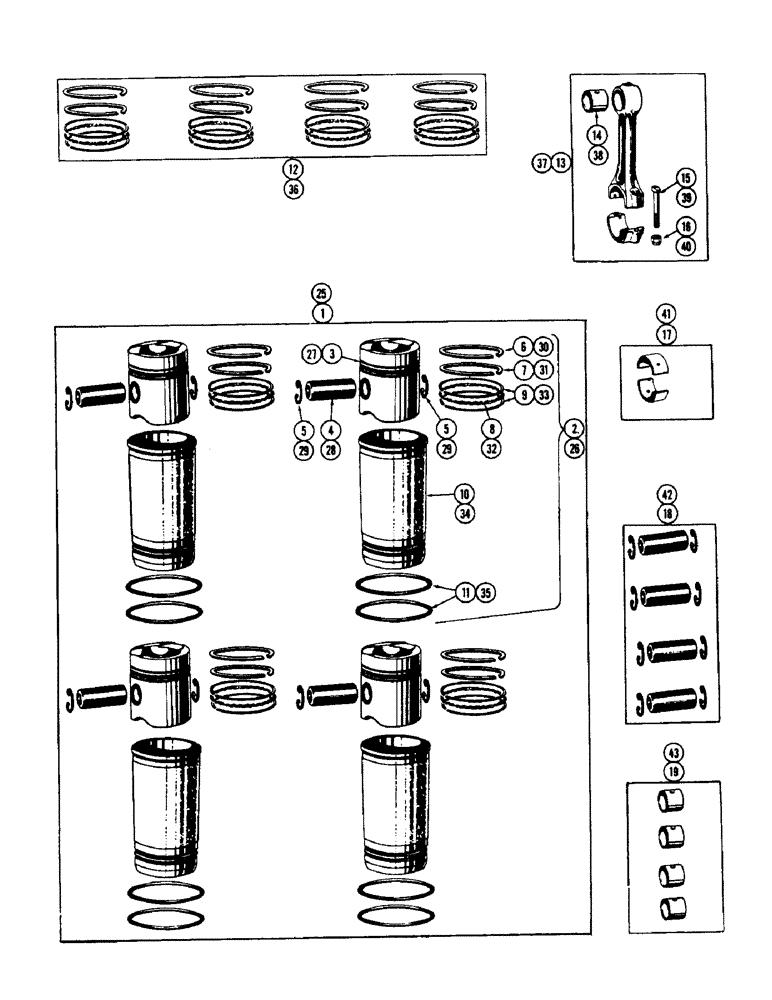

Запчасти Case IH 430 (086) - PISTONS, SLEEVES AND CONNECTING RODS, NARROW FLANGED SLEEVES, 430 AND530 SERIES,188 DIESEL ENGINE (02) - ENGINE

1

A35772

KIT, LINER, PISTON R

PISTON & SLEEVE - matched set of 4, Includes: Ref. 2 - 11

1шт.

2

A36391

SLEEVE ASSY

PISTON & SLEEVE - matched, Includes: Ref. 3 - 11

4шт.

3

G2137

X

PISTON - order A38424

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - wrist (order Ref. 18)

1шт.

5

G46702

RING, LOCKING

RING - retaining (See Ref. 18)

2шт.

6

G4819

RING

- top (See Ref. 12)

1шт.

7

G4817

RING

- compression (See Ref. 12)

1шт.

8

G47174

SPRING

SPACER - oil rail (See Ref. 12)

1шт.

9

G47155

RAIL

- oil (See Ref. 12)

2шт.

10

G2110

SLEEVE

- cylinder

1шт.

G2110 liner 4.45" across flanged area A37763 liner 4.53" across flanged area

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - 4 pistons

1шт.

13

G11847

ROD

CONNECTING ROD ASSY., Includes: Ref. 14 - 16

4шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - (order ref. 19)

1шт.

15

G49064

STEP BOLT

BOLT - cap

2шт.

16

G49060

NUT

- cap bolt

2шт.

17

A36500

SEAL

LINERS - bearing, conn. rod (std.)

3шт.

17

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

4шт.

17

A36502

LINING

LINERS - bearing, conn. rod (.010" undersize)

4шт.

17

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize)

4шт.

17

A36504

KIT

LINERS - bearing, conn. rod (.030" undersize)

4шт.

18

A35771

KIT

PIN SET - piston (incl. 8-G46702 rings)

1шт.

19

G11953

BUSHING

- conn. rod (set of 4)

1шт.

25

A37764

PISTON & SLEEVE - matched set of 4, Includes: Ref. 26 - 35, wide flanged

1шт.

26

A37769

X

PISTON & SLEEVE - matched, Includes: Ref. 27 - 35, wide flanged

4шт.

27

G2137

X

PISTON - order A38424, wide flanged sleeves

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - wrist (order Ref. 42), wide flanged sleeves

1шт.

29

G46702

RING, LOCKING

RING - retaining (see Ref. 42), wide flanged sleeves

2шт.

30

G4819

RING

- top (See Ref. 36), wide flanged sleeves

1шт.

31

G4817

RING

- compression (See Ref. 36), wide flanged sleeves

1шт.

32

G47174

SPRING

SPACER - oil rail (see Ref. 36), wide flanged sleeves

1шт.

33

G47155

RAIL

- oil (See Ref. 36), wide flanged sleeves

2шт.

34

A37763

X

SLEEVE - cylinder, wide flanged

1шт.

G2110 liner 4.45" across flanged area A37763 liner 4.53" across flanged area

1шт.

35

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing, wide flanged

2шт.

36

G37075

RING

SET - 4 pistons, wide flanged sleeves

1шт.

37

G11847

ROD

CONNECTING ROD ASSY., Includes: Ref. 38 - 40, wide flanged sleeves

4шт.

38

NSS

NOT SOLD SEPARAT

BUSHING (order ref. 43), wide flanged sleeves

1шт.

39

G49064

STEP BOLT

BOLT - cap, wide flanged sleeves

2шт.

40

G49060

NUT

- cap bolt, wide flanged sleeves

2шт.

41

A36500

SEAL

LINERS - bearing, conn. rod (std.), wide flanged sleeves

4шт.

41

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize), wide flanged sleeves

4шт.

41

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize), wide flanged sleeves

4шт.

41

A36504

KIT

LINERS - bearing, conn. rod (.030" undersize), wide flanged sleeves

4шт.

42

A35771

KIT

PIN SET - piston (incl. 8-G46702 rings), wide flanged sleeves

1шт.

43

G11953

BUSHING

- conn. rod (set of 4), wide flanged sleeves

1шт.
