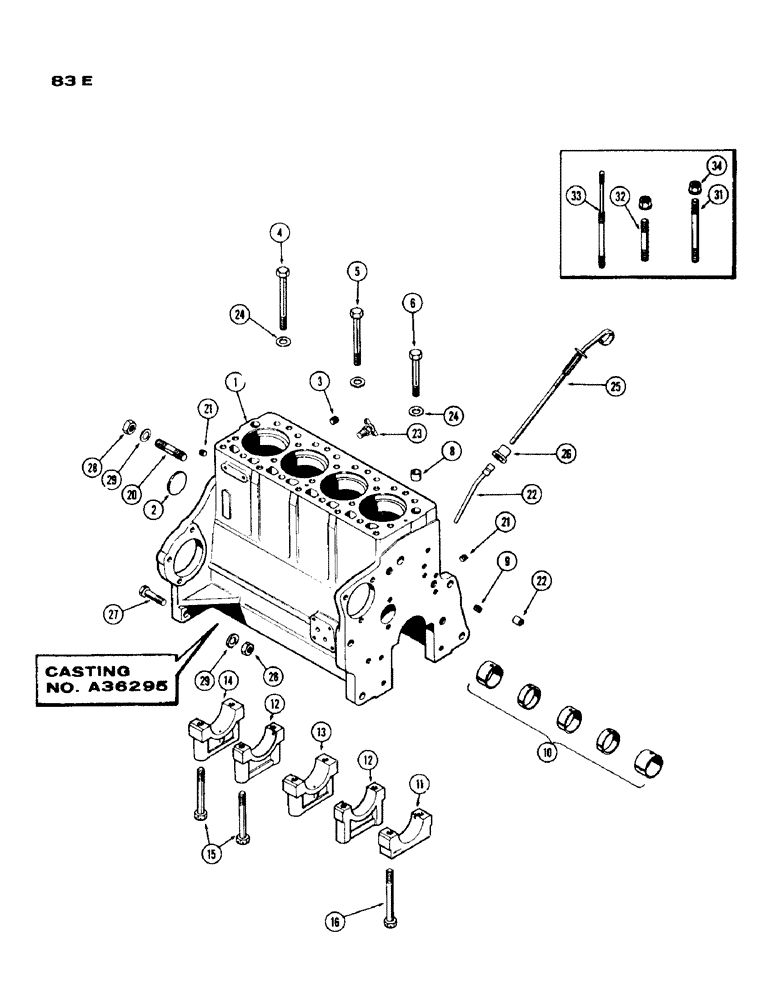

Запчасти Case IH 430 (083E) - CYL. BLOCK ASSY., CASTING NO. A36295, PRIOR TO ENG S/N 2117952, 430 AND 530 SERIES, 188 DSL ENG. (02) - ENGINE

A36315

SHORT BLOCK ASSY. (Casting No. A36295) (Order A40592 from Figure 82, 83C), Includes: Ref. 1 - 23

1шт.

1

A36309

BLOCK ASSY, - stripped (Casting No. A36295) Order A40590 from Figure 83C, Includes: Ref. 2 - 16

1шт.

2

A39241

PLUG,Exp, 2.12" dia

- camshaft opening (2-1/8" dia.)

1шт.

3

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - heater plug opening (3/8" P.T.)

1шт.

4

A35372

BOLT (SPREADER)

BOLT - head (1/2" x 6")

2шт.

The following studs ref. 31, 32 & 33 can be used to replace bolts ref. 4, 5 & 6

1шт.

5

A35371

BOLT

- head (1/2 x 5-5/8")

11шт.

The following studs ref. 31, 32 & 33 can be used to replace bolts ref. 4, 5 & 6

1шт.

6

A35370

BOLT

BOLT - head (1/2 x 4")

4шт.

The following studs ref. 31, 32 & 33 can be used to replace bolts ref. 4, 5 & 6

1шт.

8

G49608

RING

DOWEL -, Serial Range: head-block

2шт.

9

G49070

PLUG

- drilled, oil gallery front (1/4" P.T.)

1шт.

10

A41232

KIT

BUSHING SET - camshaft (pre-sized)

1шт.

11

G2126

CAP

- front bearing, crankshaft

1шт.

12

G2128

CAP

- intermediate brg., crankshaft

2шт.

13

G2127

CAP

- center brg., crankshaft

1шт.

14

G2129

CAP

- rear bearing, crankshaft

1шт.

15

G49078

BOLT - bearing cap (1/2 x 4-1/2")

8шт.

16

G49077

BOLT

- frt, brg. cap (1/2 x 5-1/8")

2шт.

20

A29333

STUD

- eng. to torque tube (5/8 x 3")

2шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

22

G45139

BRACKET

SUPPORT - dipstick

1шт.

23

217-103

COCK, DRAIN

DRAINCOCK - cyl block (1/4" P.T.)

1шт.

24

A29288

WASHER

- head bolt

17шт.

25

G37037

DIPSTICK

- oil level, Includes: Ref. 26

1шт.

26

G46892

OIL SEAL

- rubber

1шт.

27

A30099

X

BOLT - eng. to torque tube (5/8 x 3-1/2")

2шт.

28

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

31

A36902

STUD

- head (1/2 x 5-5/8")

11шт.

31

A36905

STUD

- head (1/2 x 6-1/8")

2шт.

32

A36904

STUD

- head (1/2 x 4")

4шт.

33

A36903

STUD

- head & cover

2шт.

34

A37030

FLANGE NUT

- head stud (1/2" N.C. flanged)

19шт.
